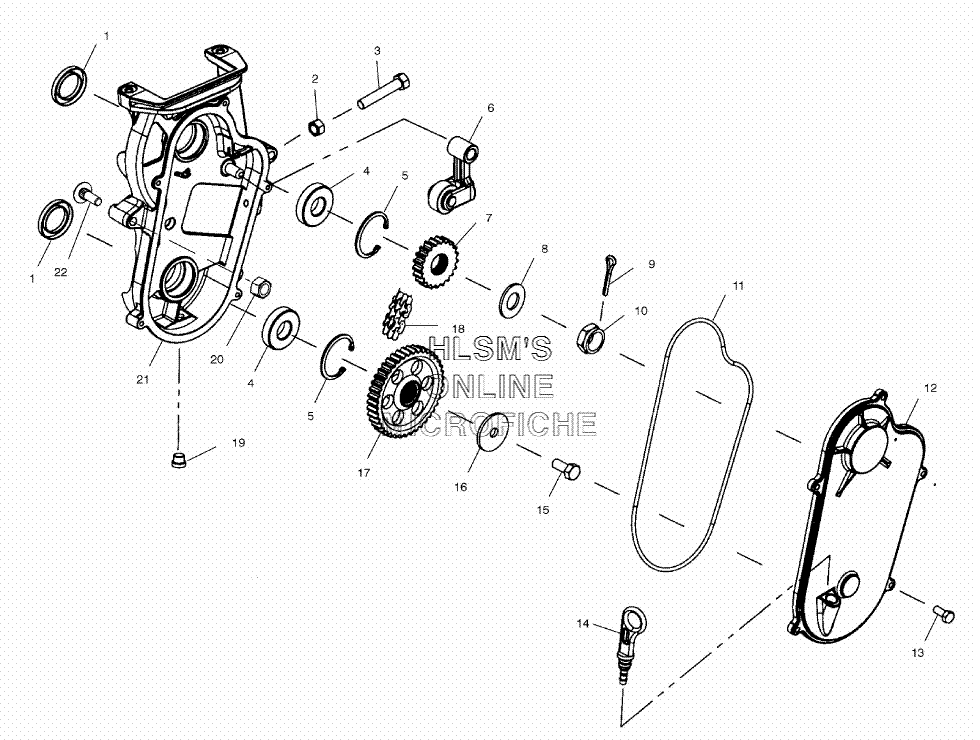

CHAINCASE ASSEMBLY для Polaris 700 XC SP F/O (S02NP7CS) - 2002 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
25132237 NUT, CHAIN ADJUSTERNUT, CHAIN ADJUSTER
-
37512470 SCREWSCREW
-
43514309 BEARING, BALLBEARING, BALL
-
57718406 RING, RETAININGRING, RETAINING
-
61332213 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
63553002 BEARINGBEARING
-
65630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
67558702 WASHER, THRUSTWASHER, THRUST
-
67662210 PIN, CHAIN TIGHTENERPIN, CHAIN TIGHTENER
-
65630958 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
73221102 SPROCKET (25 TEETH 3/4W 15 SPLINE)SPROCKET (25 TEETH 3/4W 15 SPLINE)
-
87571620 WASHER, SLOTTEDWASHER, SLOTTED
-
97661401 COTTER, PINCOTTER, PIN
-
107542811 NUTNUT
-
115411497 GASKET, O-RING CHAINCASEGASKET, O-RING CHAINCASE
-
125132368 COVER, CHAINCASECOVER, CHAINCASE
-
137512242 SCREWSCREW
-
141332250 DIPSTICK ASSY., W/MAGNETDIPSTICK ASSY., W/MAGNET
-
157512325 BOLTBOLT
-
167571618 WASHERWASHER
-
173222099 SPROCKET (40/15 TEETH)SPROCKET (40/15 TEETH)
-
183221108 CHAIN (76P 3/4W)CHAIN (76P 3/4W)
-
197052115 PLUGPLUG
-
207542451 NUT, NYLOCNUT, NYLOC
-
215132773 CHAINCASECHAINCASE
-
227515477 BOLTBOLT
