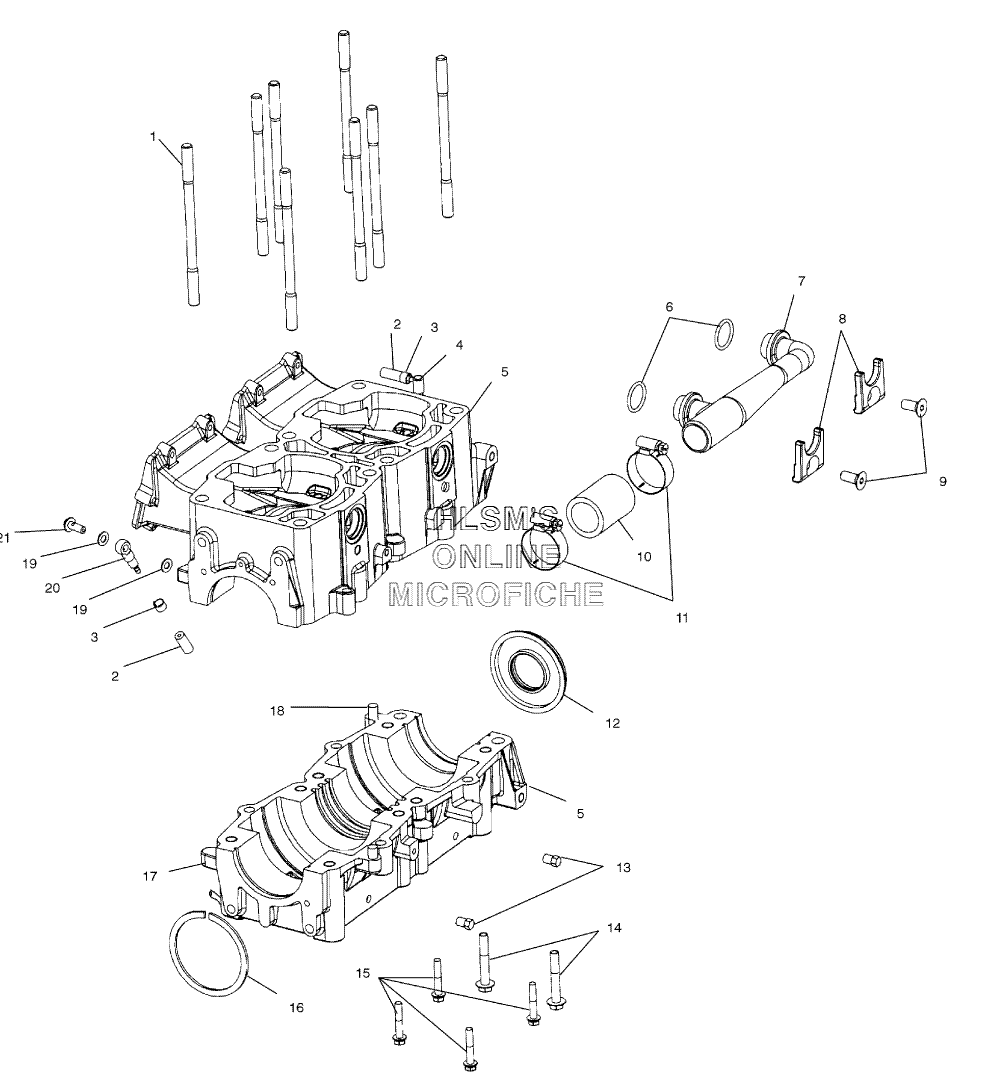

CRANKCASE ASSEMBLY для Polaris 700 XC SP (S02NP7CSA) - 2002 года выпуска
-
№АртикулНазвание
-
15131677 STUD, CYLINDER FLANGESTUD, CYLINDER FLANGE
-
28450061-600 FUEL LINE (3MMX7MM)FUEL LINE (3MMX7MM)
-
37080603 CLAMPCLAMP
-
47051020 VALVE, CHECKVALVE, CHECK
-
52201930 CRANKCASE KIT (INCL. 1, 5, 14, 15, 18)CRANKCASE KIT (INCL. 1, 5, 14, 15, 18)
-
65411125 O-RINGO-RING
-
75630610 MANIFOLD, WATER INLETMANIFOLD, WATER INLET
-
85243431 RETAINER, INLET WATER MANIFOLDRETAINER, INLET WATER MANIFOLD
-
97516736 SCREWSCREW
-
108450068-04 HOSEHOSE
-
117080560 CLAMPCLAMP
-
125411394 SEAL, FLANGEDSEAL, FLANGED
-
137051529 PLUGPLUG
-
147516919 SCREWSCREW
-
157516732 SCREWSCREW
-
167710441 RING, RETAININGRING, RETAINING
-
177052145 FITTINGFITTING
-
187663001 PIN, DOWELPIN, DOWEL
-
197555998 WASHER, FLATWASHER, FLAT
-
207052160 VALVE, CHECK OIL PUMPVALVE, CHECK OIL PUMP
-
217517319 SCREWSCREW
