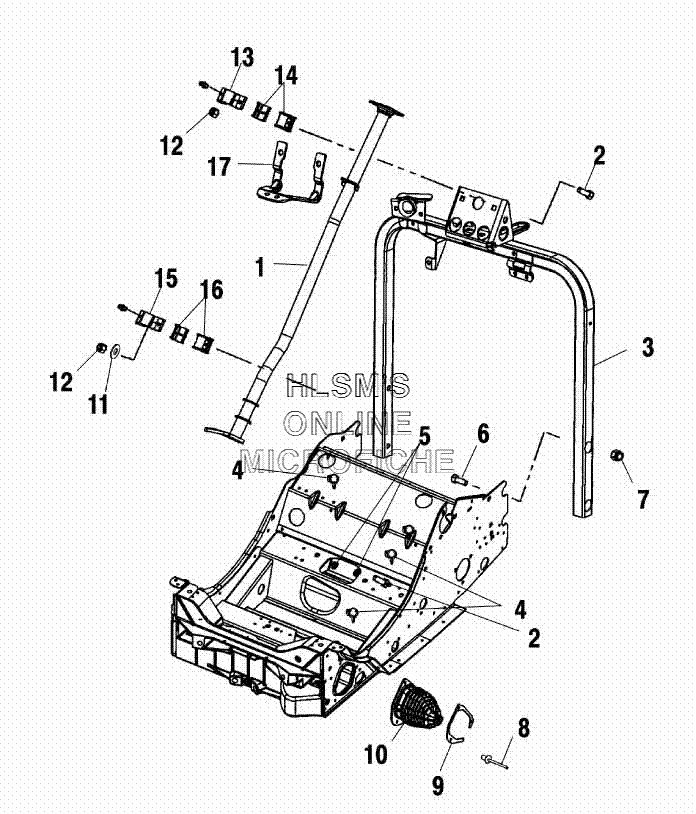

STEERING POST ASSEMBLY для Polaris 800 RMK F/O 144 (S02NK8CS) - 2002 года выпуска
-
№АртикулНазвание
-
11821162-067 WELD, STEERING POST, RMK (BLACK)WELD, STEERING POST, RMK (BLACK)
-
27517579 BOLT, CARR. (5/16-X1'' GR5)BOLT, CARR. (5/16-X1'' GR5)
-
31013444-067 WELD-STEERING HOOP (BLACK)WELD-STEERING HOOP (BLACK)
-
44020139 CLIP, PLASTICCLIP, PLASTIC
-
57547030 PALNUTPALNUT
-
67512377 BOLTBOLT
-
77542343 NUT, NYLOCKNUT, NYLOCK
-
87621433 RIVETRIVET
-
95244470 PLATE, TIE ROD BOOTPLATE, TIE ROD BOOT
-
105433532 BOOT, TIE ROD (LEFT)BOOT, TIE ROD (LEFT)
-
105433533 BOOT, TIE ROD (RIGHT)BOOT, TIE ROD (RIGHT)
-
117558402 WASHER STEELWASHER STEEL
-
127542324 NUTNUT
-
135131841 BRACKET, STEERING POSTBRACKET, STEERING POST
-
137080510 FITTING, ZERKFITTING, ZERK
-
145432785 BUSHING, STEERING POSTBUSHING, STEERING POST
-
155132967 BRACKET, STEERING POST, ALUM, .75WBRACKET, STEERING POST, ALUM, .75W
-
165434167 BUSHING, STEERING POST, .75W, PLASBUSHING, STEERING POST, .75W, PLAS
-
175245373 BRACKET, CONSOLE NECK FWD, SRP (FRONT)BRACKET, CONSOLE NECK FWD, SRP (FRONT)
