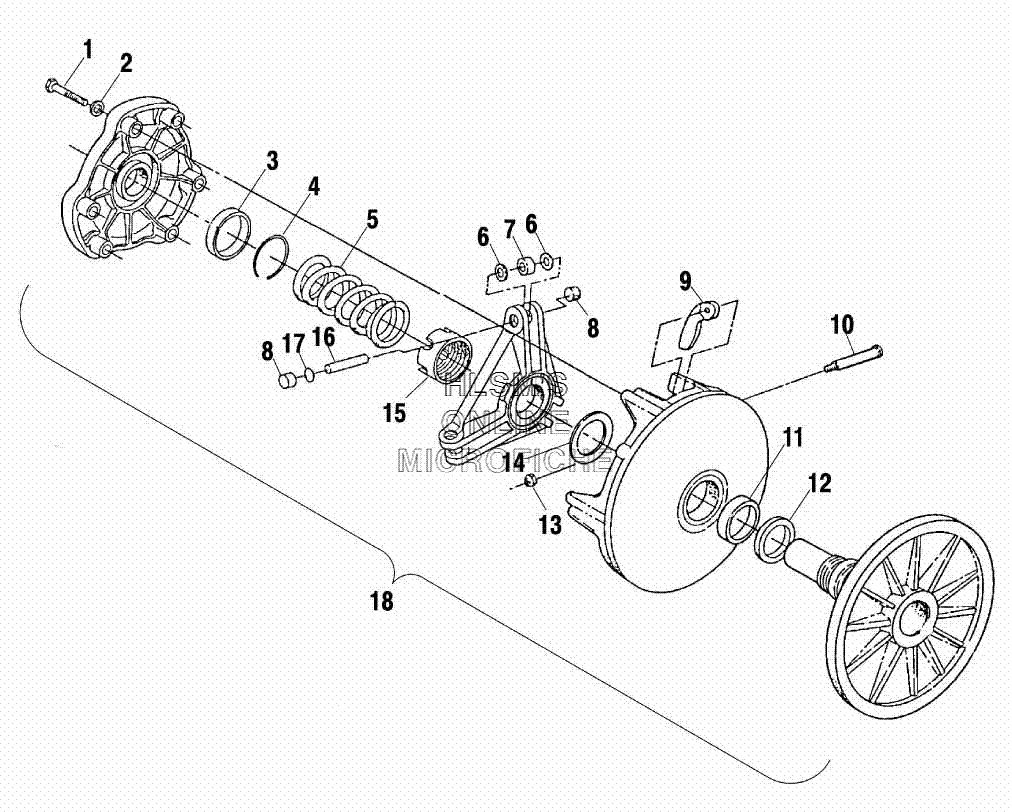

CLUTCH - DRIVE для Polaris 800 RMK F/O 144 STOCK (S02NK8CSA) - 2002 года выпуска

№

Артикул

Название
1

7512265 BOLT

BOLT

630 ₽
2

7552801 LOCK WASHER

LOCK WASHER

460 ₽
3

3514347 COVER, BEARING GARMAX

COVER, BEARING GARMAX

6 030 ₽
4

7710417 RING, RETAINING BOLT

RING, RETAINING BOLT

150 ₽
5

7042083 SPRING, CLUTCH (BLACK/GREEN)

SPRING, CLUTCH (BLACK/GREEN)

9 780 ₽
6

5430945 WASHER

WASHER

420 ₽
7

1321622 ROLLER AND BUSHING ASSY.

ROLLER AND BUSHING ASSY.

8 110 ₽
8

5430445 BUTTON, GUIDE

BUTTON, GUIDE

1 460 ₽
9

1321587 WT/BUSHING ASSY, 10-60

WT/BUSHING ASSY, 10-60

6 240 ₽
10

7515105 PIN, WT., HARDENED

PIN, WT., HARDENED

1 870 ₽
11

3576502 SLEEVE, BEARING

SLEEVE, BEARING

4 990 ₽
12

5010188 BUSHING, RETAINER

BUSHING, RETAINER

1 520 ₽
13

7541906 NUT FLEX LOC

NUT FLEX LOC

250 ₽
14

5210754 SPACER (.050MM)

SPACER (.050MM)

580 ₽
14

5210753 SPACER (.032MM)

SPACER (.032MM)

420 ₽
14

5242981 SPACER (.025 MM)

SPACER (.025 MM)

260 ₽
14

5210752 SPACER (.020MM)

SPACER (.020MM)

110 ₽
15

5020425 NUT, JAM

NUT, JAM

4 370 ₽
16

5133054 PIN, ROLLER (1-1/8)

PIN, ROLLER (1-1/8)

3 750 ₽
17

2200387 SHIM, DRIVE CLUTCH KIT

SHIM, DRIVE CLUTCH KIT

2 910 ₽
18

1321880 DRIVE CLUTCH ASSY., BASIC.108 (INCL. ALL LESS 5, 9)

DRIVE CLUTCH ASSY., BASIC.108 (INCL. ALL LESS 5, 9)

118 460 ₽
18

2201169 REBUILD, WIDE ROLLER KIT (INCL. 6-8, 10, 16, 17)

REBUILD, WIDE ROLLER KIT (INCL. 6-8, 10, 16, 17)

33 280 ₽
