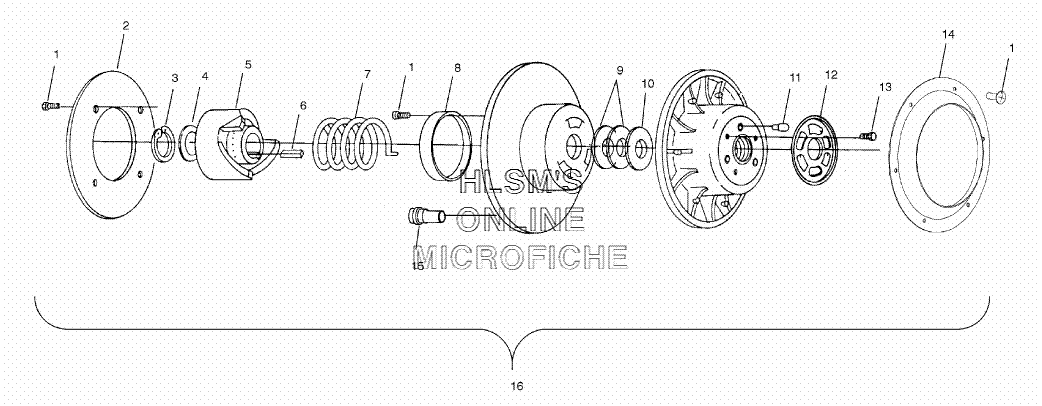

CLUTCH - DRIVEN для Polaris SPORT TOURING (S02SU5BS) - 2002 года выпуска
-
№АртикулНазвание
-
17512048 SCREWSCREW
-
25243158 PLATE, DRIVEN (VENTED)PLATE, DRIVEN (VENTED)
-
37714804 RING, RETAININGRING, RETAINING
-
47556804 WASHERWASHER
-
55130895 RAMP, DRIVEN (36 DEGREE)RAMP, DRIVEN (36 DEGREE)
-
67721116 KEYKEY
-
77041646 SPRING, CLUTCH (SVR/BLUE)SPRING, CLUTCH (SVR/BLUE)
-
83569803 BUSHING, D.U.BUSHING, D.U.
-
97556804 WASHER (.03)WASHER (.03)
-
97555898 WASHER (.02)WASHER (.02)
-
107555865 WASHER, DRIVE CLUTCHWASHER, DRIVE CLUTCH
-
115020653 PIN, CLUTCHPIN, CLUTCH
-
125222878 CAM, DRIVEN, ADJUSTABLECAM, DRIVEN, ADJUSTABLE
-
137515133 SCREWSCREW
-
145243157 CAP, DRIVEN, VENTEDCAP, DRIVEN, VENTED
-
155430466 BUTTON, RAMPBUTTON, RAMP
-
161321925 DRIVEN CLUTCH ASSY. (BSC, 203 N/B INCL. ALL LESS 2, 5, 7, 14)DRIVEN CLUTCH ASSY. (BSC, 203 N/B INCL. ALL LESS 2, 5, 7, 14)
