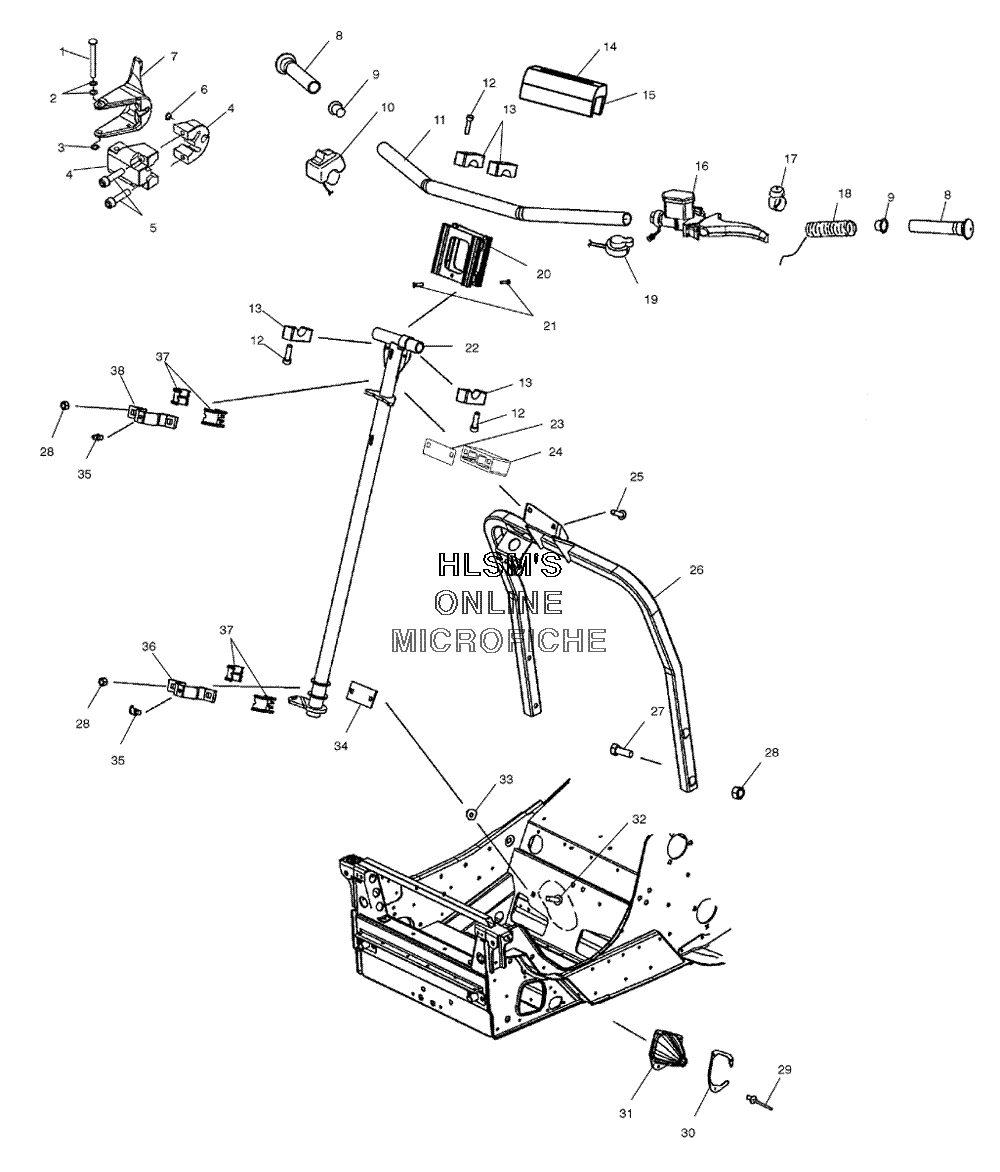

HANDLEBAR ASSEMBLY для Polaris 440 PRO X (S03NX4CS) - 2003 года выпуска
-
№АртикулНазвание
-
17661624 PIN RETAININGPIN RETAINING
-
27555730 WASHERWASHER
-
37710401 RING, RETAININGRING, RETAINING
-
45133636 BLOCK THROTTLE (REAR)BLOCK THROTTLE (REAR)
-
45133639 BLOCK THROTTLE (FRONT)BLOCK THROTTLE (FRONT)
-
57512290 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
67710503 RING, RETAININGRING, RETAINING
-
75432970 THROTTLE, LEVER (35.5MM)THROTTLE, LEVER (35.5MM)
-
72010171 LEVER HEATER HI/LO ASSY (35.5MM)LEVER HEATER HI/LO ASSY (35.5MM)
-
72010220 THROTTLE CONTROL, ALUM ASSY (34MM)THROTTLE CONTROL, ALUM ASSY (34MM)
-
85432634 GRIP, HANDLEBARGRIP, HANDLEBAR
-
95431096 PLUGPLUG
-
104110101 SWITCH, AUXILLARY SHUT-OFFSWITCH, AUXILLARY SHUT-OFF
-
115246007-067 HANDLERBAR (BLACK)HANDLERBAR (BLACK)
-
127518004 SCREW SOCKET/HEAD/CAP-BSCREW SOCKET/HEAD/CAP-B
-
135133297 CLAMP HANDLEBARCLAMP HANDLEBAR
-
142682949 HANDLEBAR COVER ASSYHANDLEBAR COVER ASSY
-
155812322 PAD HANDLEBARPAD HANDLEBAR
-
174010311 SWITCH, BUTTONSWITCH, BUTTON
-
182460311 GRIP HEATER ASSY HI/LOGRIP HEATER ASSY HI/LO
-
194110107 SWITCH, DIMMERSWITCH, DIMMER
-
205133287 RISER, HANDLEBAR (4/5") (ALUMINUM)RISER, HANDLEBAR (4/5") (ALUMINUM)
-
217670090 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
221821347-067 WELD STEERING POST (BLACK)WELD STEERING POST (BLACK)
-
235246698 PLATE STEERING HOOPPLATE STEERING HOOP
-
245133668 BLOCK STEERING HOOPBLOCK STEERING HOOP
-
257518137 BOLT CARRBOLT CARR
-
261013745-067 WELD STEERING HOOP RACE (BLACK)WELD STEERING HOOP RACE (BLACK)
-
277512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
287542343 NUT, FLANGENUT, FLANGE
-
297621433 RIVETRIVET
-
305244470 PLATE, TIE ROD BOOTPLATE, TIE ROD BOOT
-
315433532 BOOT, TIE ROD (LEFT)BOOT, TIE ROD (LEFT)
-
315433533 BOOT, TIE ROD (RIGHT)BOOT, TIE ROD (RIGHT)
-
327515383 BOLT, CARRIAGEBOLT, CARRIAGE
-
337547030 PALNUTPALNUT
-
345133671 SHIM STEERING POST (LOWER)SHIM STEERING POST (LOWER)
-
357080510 FITTING, ZERK 90 DEGREEFITTING, ZERK 90 DEGREE
-
365133669 BRACKET STEERING POST (ALUMINUM) (.750)BRACKET STEERING POST (ALUMINUM) (.750)
-
375434775 BUSHING (.75)BUSHING (.75)
-
385132967 BRACKET STEERING POST (ALUMINUM) (.75W)BRACKET STEERING POST (ALUMINUM) (.75W)
