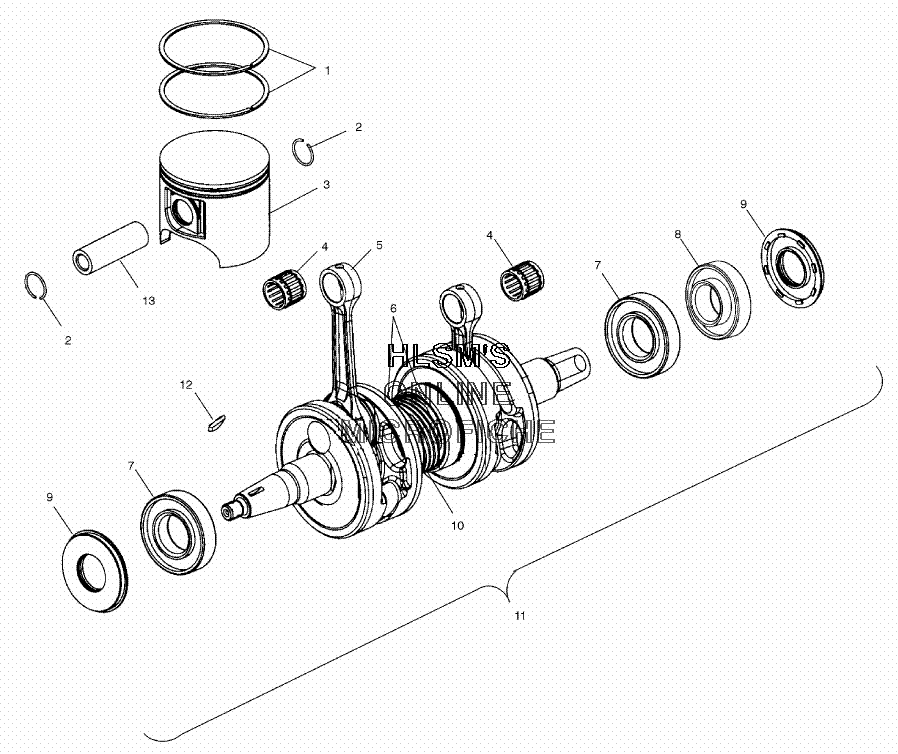

PISTON AND CRANKSHAFT для Polaris 500 CLASSIC (S03ND5CS) - 2003 года выпуска
-
№АртикулНазвание
-
12201196 PISTONRINGS KIT, 70.5MM.PISTONRINGS KIT, 70.5MM.
-
23022950 CIRCLIP, PISTON, 20MM.CIRCLIP, PISTON, 20MM.
-
32202318 PISTON KIT 70.5X20 GRAFAL (INCL. 1, 2, 13)PISTON KIT 70.5X20 GRAFAL (INCL. 1, 2, 13)
-
43552108 BEARING, 17, 20X25X23, PNPIN, KOYOBEARING, 17, 20X25X23, PNPIN, KOYO
-
52201132 CONNECT.ROD KITCONNECT.ROD KIT
-
63514363 BEARING, BALL, 35X72X20, SL, KOYOBEARING, BALL, 35X72X20, SL, KOYO
-
73585503 BEARING, BALLBEARING, BALL
-
83514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
-
95411394 SEAL, FLANGEDSEAL, FLANGED
-
105131373 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
112202257 CRANKSHAFT KIT 2@64X128 (INCL. 6, 10)CRANKSHAFT KIT 2@64X128 (INCL. 6, 10)
-
127721117 KEY, WOODRUFFKEY, WOODRUFF
