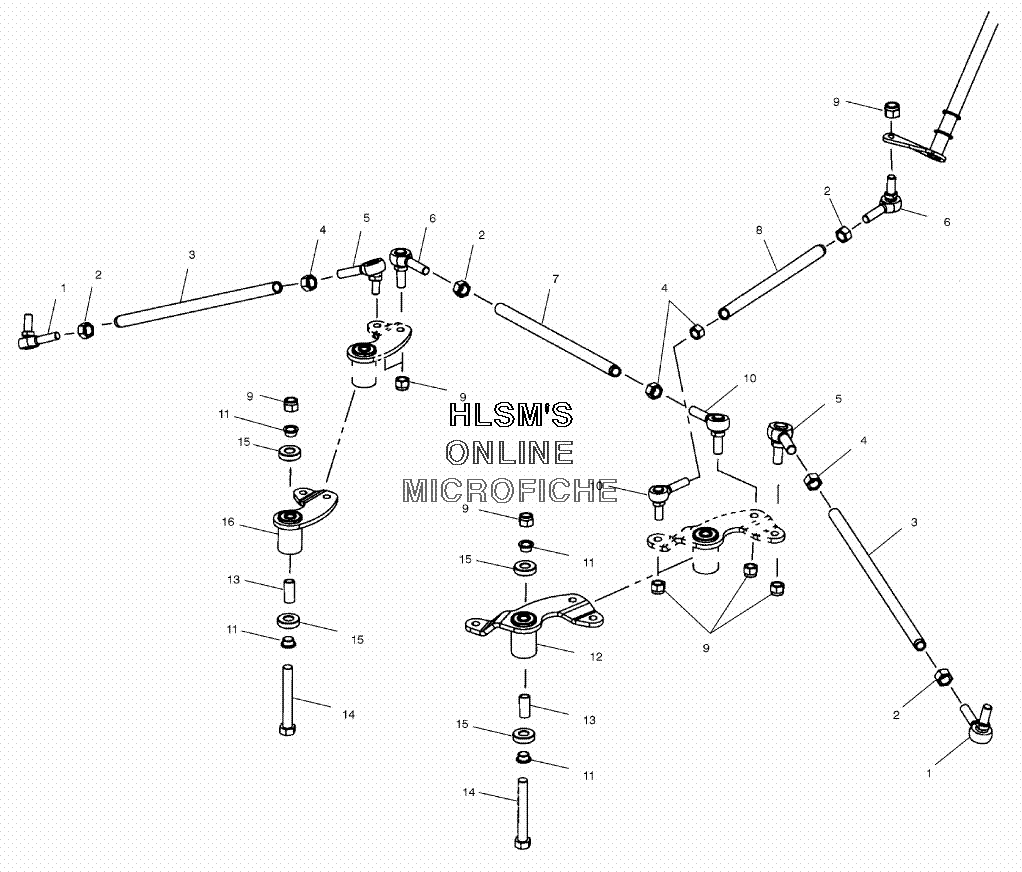

STEERING LINKAGE для Polaris 500 CLASSIC (S03ND5CS) - 2003 года выпуска
-
№АртикулНазвание
-
17061057 ROD, END, 3/8, PL, 75Ш, 1.00 (RIGHT)ROD, END, 3/8, PL, 75Ш, 1.00 (RIGHT)
-
27542401 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
35333949 ROD, TIEROD, TIE
-
47542424 NUT (LEFT)NUT (LEFT)
-
57061055 ROD, END, 3/8, PL, 75Ш (LEFT) , 750 STUDROD, END, 3/8, PL, 75Ш (LEFT) , 750 STUD
-
67061076 ROD END, 3/8 (RIGHT) , HI, ANGLE, PRROD END, 3/8 (RIGHT) , HI, ANGLE, PR
-
75333772 STEERING ROD RACK, 11.50STEERING ROD RACK, 11.50
-
85333773-067 ROD, DRAGLINK, 12.50, STEEL, BLKROD, DRAGLINK, 12.50, STEEL, BLK
-
97542439 NUT, NYLOKNUT, NYLOK
-
107061075 ROD END, 3/8 (LEFT) , HI, ANGLE, PRROD END, 3/8 (LEFT) , HI, ANGLE, PR
-
115132106 BUSHING, REDUCER, 12MM TO .385BUSHING, REDUCER, 12MM TO .385
-
121820957 PITMAN ARM ASSY. (INCL. 11, 13, 15)PITMAN ARM ASSY. (INCL. 11, 13, 15)
-
135133423 SPACER, TUBE PITMAN/IDLER ARMSSPACER, TUBE PITMAN/IDLER ARMS
-
147512435 SCREWSCREW
-
153514320 BEARING, BALL, 600ILLUBEARING, BALL, 600ILLU
-
161820959 IDLER ARM ASSY. (INCL. 11, 13, 15)IDLER ARM ASSY. (INCL. 11, 13, 15)
