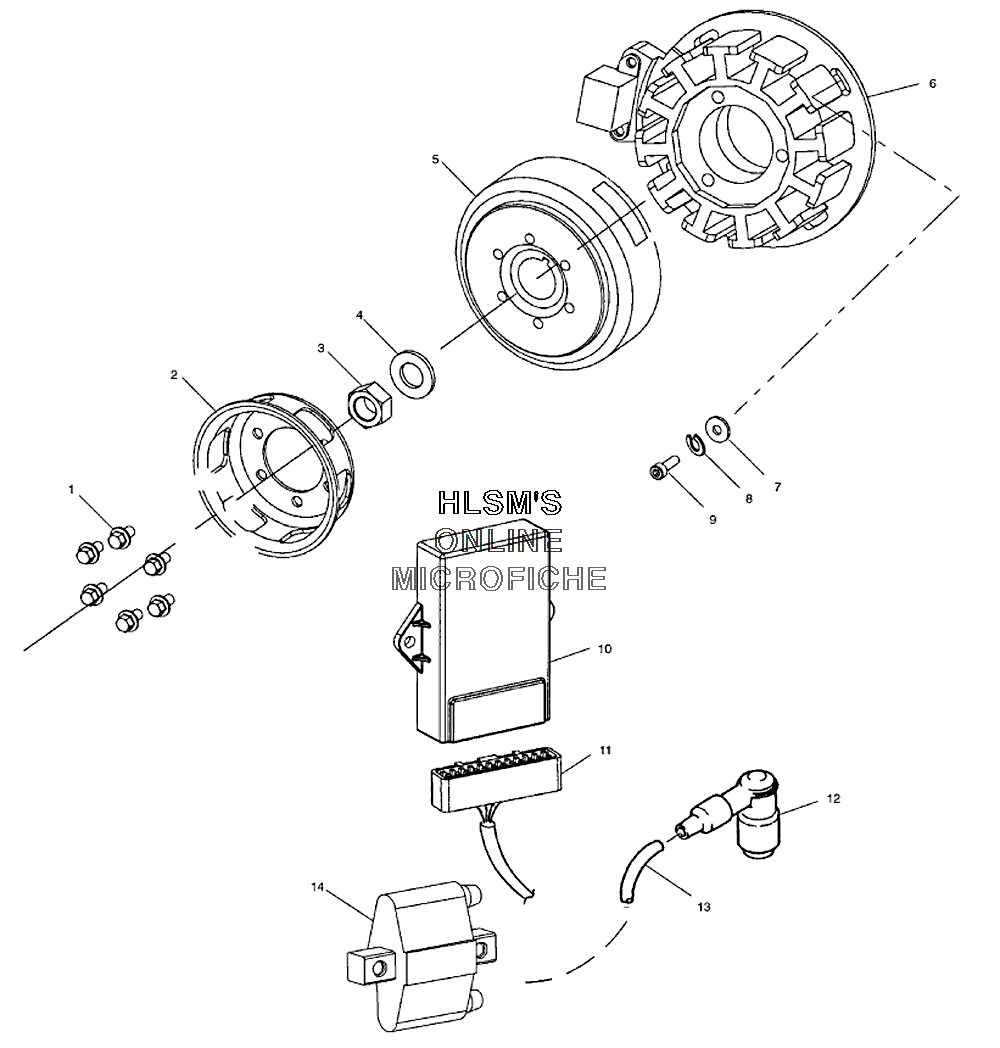

MAGNETO для Polaris 500 XC SP EDGE M-10 F/O (S03NE5CS) - 2003 года выпуска
-
№АртикулНазвание
-
17517278 SCREWSCREW
-
23040161 PULLEY, STARTINGPULLEY, STARTING
-
37546909 NUTNUT
-
47555907 WASHERWASHER
-
54010677 FLYWHEEL-IGN 18ШFLYWHEEL-IGN 18Ш
-
64060222 STATORSTATOR
-
77555970 WASHER, FLATWASHER, FLAT
-
87555969 WASHER, LOCKWASHER, LOCK
-
97517314 SCREWSCREW
-
102202320 CDI KIT S50-44-4010713 (INCL. NYOGEL AND DECAL)CDI KIT S50-44-4010713 (INCL. NYOGEL AND DECAL)
-
114010549 HARNESS, IGNITION SNO TWN KOK NEWHARNESS, IGNITION SNO TWN KOK NEW
-
124020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
134010124-305 WIRE, IGNITION BULK (305CM)WIRE, IGNITION BULK (305CM)
-
144060229 COIL, IGNITION, KOKCOIL, IGNITION, KOK
