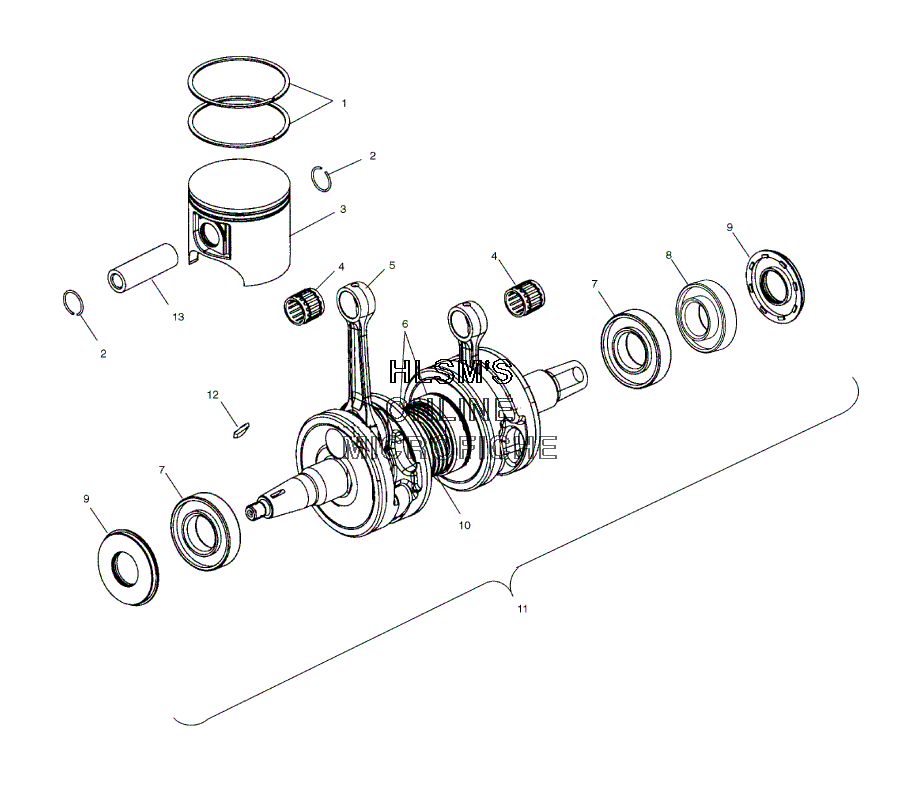

PISTON AND CRANKSHAFT для Polaris 500 XC SP EDGE X F/O (S03NA5CS) - 2003 года выпуска
-
№АртикулНазвание
-
12201196 PISTON RINGS, KIT (70.5MM.)PISTON RINGS, KIT (70.5MM.)
-
23022950 CIRCLIP, PISTON (20MM)CIRCLIP, PISTON (20MM)
-
32202318 PISTON, KIT 70.5X20 GRAFAL (INCL. 1, 2, 13)PISTON, KIT 70.5X20 GRAFAL (INCL. 1, 2, 13)
-
43552108 BEARING, PNPINBEARING, PNPIN
-
52201132 CONNECTING ROD, KITCONNECTING ROD, KIT
-
63514363 BEARING, BALL, 35X72X20, SL, KOYOBEARING, BALL, 35X72X20, SL, KOYO
-
73585503 BEARING, BALLBEARING, BALL
-
83514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
-
95411394 SEAL, FLANGEDSEAL, FLANGED
-
105131373 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
112202257 CRANKSHAFT, KIT (INCL. 6-10)CRANKSHAFT, KIT (INCL. 6-10)
-
127721117 KEY, WOODRUFFKEY, WOODRUFF
