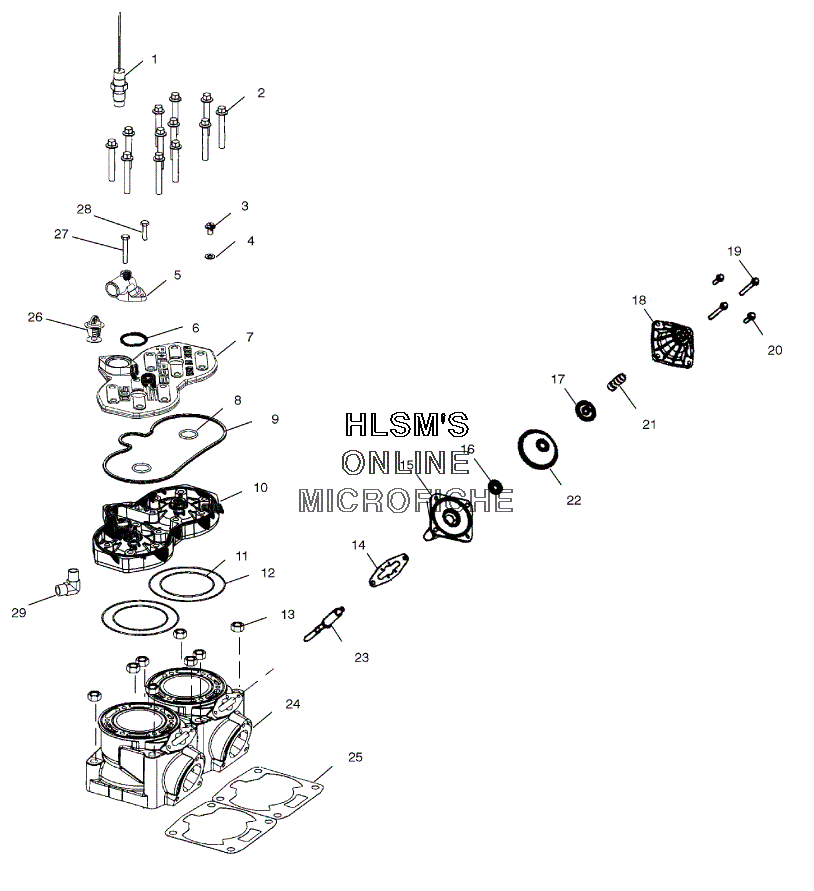

CYLINDER ASSEMBLY для Polaris 600 XC SP EDGE (S03NP6ESA/B) - 2003 года выпуска
-
№АртикулНазвание
-
14010398 SENSOR - THERMISTER, ESX8477ASENSOR - THERMISTER, ESX8477A
-
27517533 SCREW, M8X1.25X55SCREW, M8X1.25X55
-
37517679 SCREW, M6X1.0 X 13, SL/HX/FL - ZSCREW, M6X1.0 X 13, SL/HX/FL - Z
-
47555998 WASHER, FLATWASHER, FLAT
-
55630992 COVER - THERMOSTATCOVER - THERMOSTAT
-
65411521 O - RING, LIPSEALO - RING, LIPSEAL
-
75631199-366 COVER - HEAD 77.25 RED PWDCOVER - HEAD 77.25 RED PWD
-
85411411 O - RINGO - RING
-
95411465 SEALSEAL
-
103021320 HEAD - CYL 77.25 TWN SN 3/8W/OMA (EDGE, EDGE, X)HEAD - CYL 77.25 TWN SN 3/8W/OMA (EDGE, EDGE, X)
-
115410932 O - RINGO - RING
-
125411359 O - RINGO - RING
-
137547013 NUTNUT
-
145812350 GASKET - BASE TO CYL EXH VALVEGASKET - BASE TO CYL EXH VALVE
-
151202216 ASSY. - BASE EXH VALVE DOMASSY. - BASE EXH VALVE DOM
-
165132950 WASHER - BELLOWS, EXH VALVE, DOMWASHER - BELLOWS, EXH VALVE, DOM
-
175631152 CAP/NUT, BELLOWS - EXH VALVE DOMCAP/NUT, BELLOWS - EXH VALVE DOM
-
185434599 ASSY. - HOUSING W/BUSHINGASSY. - HOUSING W/BUSHING
-
197516820 SCREWSCREW
-
207517932 SCREWSCREW
-
217041704-03 SPRING, PINKSPRING, PINK
-
225412147 ELLOWS - EXH MODIFIEDELLOWS - EXH MODIFIED
-
235133380 VALVE - GUILLOTINE 600 FORGEDVALVE - GUILLOTINE 600 FORGED
-
243021333 CYLINDER - 77.25CYLINDER - 77.25
-
255811916 GASKET - CYLINDER BASEGASKET - CYLINDER BASE
-
267052267 THERMOSTAT - 50C TBYS SS STEM (EDGE, EDGE, X)THERMOSTAT - 50C TBYS SS STEM (EDGE, EDGE, X)
-
277516818 SCREWSCREW
-
287516822 SCREWSCREW
-
297052221 FITTING (EDGE, EDGE, X)FITTING (EDGE, EDGE, X)
