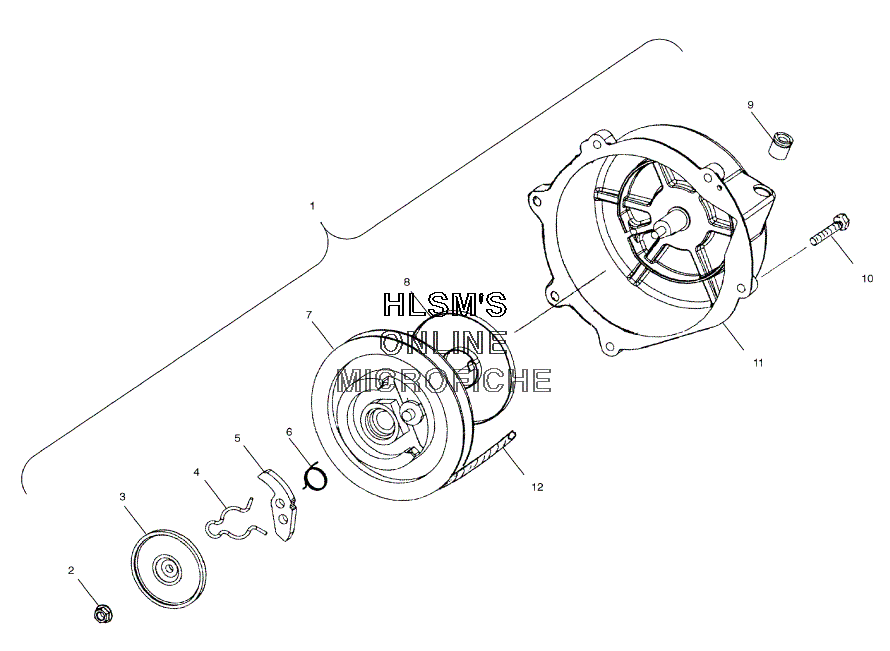

STARTER - RECOIL ASSEMBLY для Polaris 600 XC SP M-10 F/O (S03NE6ES) - 2003 года выпуска
-
№АртикулНазвание
-
11202298 ASSY. - RECOIL ELECTRIC REV (INCL. 2 - 8, 11, 12)ASSY. - RECOIL ELECTRIC REV (INCL. 2 - 8, 11, 12)
-
23040163 NUT, FLANGENUT, FLANGE
-
33040164 PLATE, FRICTIONPLATE, FRICTION
-
43040167 SPRING, FRICTIONSPRING, FRICTION
-
55246108 RATCHET - PAWL ELEC REVRATCHET - PAWL ELEC REV
-
63040166 SPRING, RETURNSPRING, RETURN
-
73040168 REELREEL
-
83040170 SPRING, SPIRALSPRING, SPIRAL
-
93040171 GUIDE - ROPEGUIDE - ROPE
-
107516827 SCREWSCREW
-
115630645 ASSY. - RECOIL ELECTRIC REVASSY. - RECOIL ELECTRIC REV
-
123040169 ROPE, STARTERROPE, STARTER
