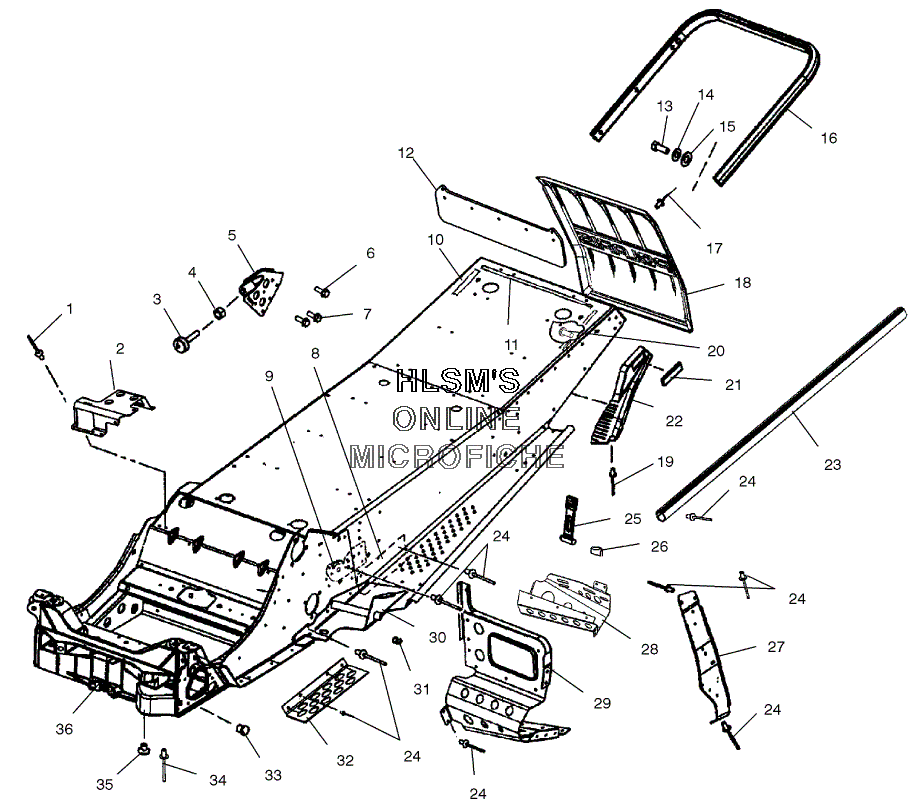

FRAME - CHASSIS для Polaris 700 CLASSIC (S03ND7CS) - 2003 года выпуска
-
№АртикулНазвание
-
17621432 RIVETRIVET
-
25246330 BRACKET OIL TANK/HOSE SUPPORTBRACKET OIL TANK/HOSE SUPPORT
-
33110078 STOP, TORQUESTOP, TORQUE
-
47542404 NUTNUT
-
51013377 WELDING, TORQUE STOPWELDING, TORQUE STOP
-
67517632 SCREWSCREW
-
77517854 SCREWSCREW
-
85244997-067 BRACE, TUNNEL (LOWER/BLACK/LEFT)BRACE, TUNNEL (LOWER/BLACK/LEFT)
-
85244998-067 BRACE, TUNNEL (LOWER/BLACK/RIGHT)BRACE, TUNNEL (LOWER/BLACK/RIGHT)
-
95244999-067 PAD, SUSPENSION (FRONT/BLACK/LEFT)PAD, SUSPENSION (FRONT/BLACK/LEFT)
-
95245001-067 PAD, SUSPENSION (FRONT/BLACK/RIGHT)PAD, SUSPENSION (FRONT/BLACK/RIGHT)
-
105812290 GASKET SEAT BASEGASKET SEAT BASE
-
115812360 GASKET SEAT BASE (1/4")GASKET SEAT BASE (1/4")
-
125812430 BACKER SNOW FLAPBACKER SNOW FLAP
-
137512240 BOLTBOLT
-
147552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
157558301 WASHER, FLATWASHER, FLAT
-
162632165-309 BUMPER ASSY (REAR)BUMPER ASSY (REAR)
-
177621418 RIVET, POPRIVET, POP
-
185434847-1106 FLAP, SNO, EDGEFLAP, SNO, EDGE
-
197621472 RIVETRIVET
-
207517441 SCREW (.75)SCREW (.75)
-
212670133 REFLECTOR ASSY (RED)REFLECTOR ASSY (RED)
-
222632443-070 SNOWSKIRT/REFLECTOR ASSY (BLACK/LEFT)SNOWSKIRT/REFLECTOR ASSY (BLACK/LEFT)
-
222632444-070 SNOWSKIRT/REFLECTOR ASSY (BLACK/RIGHT)SNOWSKIRT/REFLECTOR ASSY (BLACK/RIGHT)
-
235245118-067 BRACE TUNNEL ROLL (BLACK)BRACE TUNNEL ROLL (BLACK)
-
247661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
255433150 STRAPSTRAP
-
265812352 PAD CLUTCH GUARDPAD CLUTCH GUARD
-
275246310-067 SUPPORT FOOTREST (BLACK/LEFT)SUPPORT FOOTREST (BLACK/LEFT)
-
275246311-067 SUPPORT FOOTREST (BLACK/RIGHT)SUPPORT FOOTREST (BLACK/RIGHT)
-
285245457-067 MOUNT CONSOLE, TOE CLIP (BLACK/LEFT)MOUNT CONSOLE, TOE CLIP (BLACK/LEFT)
-
285245458-067 MOUNT CONSOLE, TOE CLIP (BLACK/RIGHT)MOUNT CONSOLE, TOE CLIP (BLACK/RIGHT)
-
295245288-067 FOOTREST (BLACK/LEFT)FOOTREST (BLACK/LEFT)
-
295242740-067 FOOTREST (BLACK/RIGHT)FOOTREST (BLACK/RIGHT)
-
302202059 MOUNT KIT, TRAILING ARM (LEFT)MOUNT KIT, TRAILING ARM (LEFT)
-
302202060 MOUNT KIT, TRAILING ARM (RIGHT)MOUNT KIT, TRAILING ARM (RIGHT)
-
317081085 PLUG BARBED (.625) (M-10)PLUG BARBED (.625) (M-10)
-
325245836 GUARD BELT, EDGE W/BENDGUARD BELT, EDGE W/BEND
-
337080416 PLUG, HOLEPLUG, HOLE
-
347661639 RIVETRIVET
-
357081076 PLUG HOLE (1.25)PLUG HOLE (1.25)
-
365132292 BULKHEAD, MACH (FRONT)BULKHEAD, MACH (FRONT)
-
361013805-067 CHASSIS ASSY, EDGE M-10 (BLACK)CHASSIS ASSY, EDGE M-10 (BLACK)
