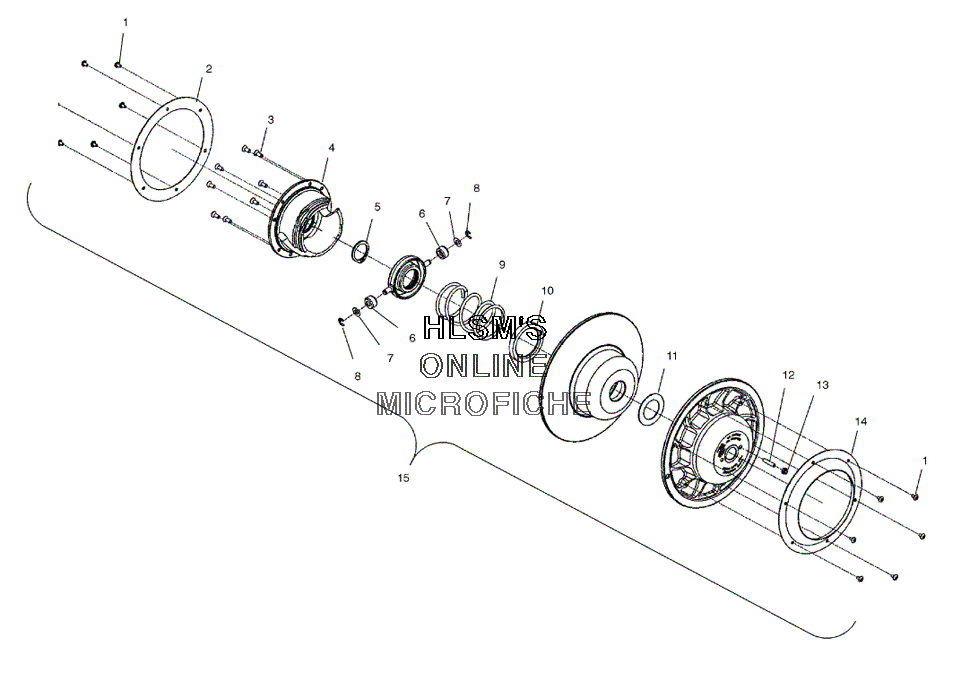

CLUTCH - DRIVEN для Polaris 700 PRO X (S03NX7CS) - 2003 года выпуска
-
№АртикулНазвание
-
17518023 SCREWSCREW
-
25246216 PLATE - WINDAGE MOV, TEAM#430085PLATE - WINDAGE MOV, TEAM#430085
-
33233996 SCREW - CAP TORXSCREW - CAP TORX
-
45133773 RAMP - DRVN (62/42 - .46)ERRAMP - DRVN (62/42 - .46)ER
-
57710522 RET.RING - EXT 1.500RET.RING - EXT 1.500
-
65434534 ROLLERROLLER
-
77556226 WASHER - THRUSTWASHER - THRUST
-
87710523 RET.E - RING - E T.375RET.E - RING - E T.375
-
97042198 SPRING - DRIVEN, CLUTCH, BLACK, (LEFT)SPRING - DRIVEN, CLUTCH, BLACK, (LEFT)
-
107556227 WASHER - THRUSTWASHER - THRUST
-
113234033 SPACERSPACER
-
127518024 SUBSTITUTED BY 3234228SUBSTITUTED BY 3234228
-
137542103 NUT, FLEXLOCNUT, FLEXLOC
-
145246217 PLATE - WINDAGE STAT - TEAM#430086PLATE - WINDAGE STAT - TEAM#430086
-
151322321 ASSY. - DRVN CLTCH (INCL. 1, 3, 5 - 8, 10 - 13)ASSY. - DRVN CLTCH (INCL. 1, 3, 5 - 8, 10 - 13)
