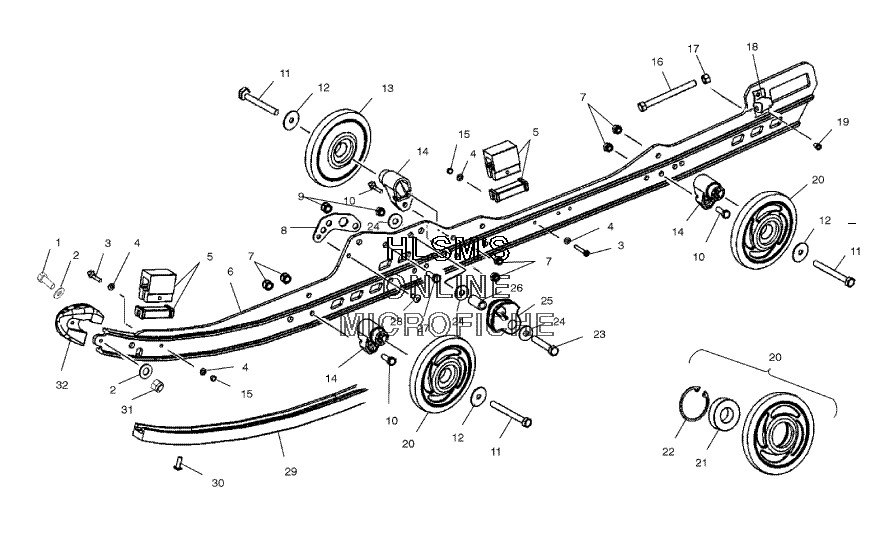

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris 700 RMK 151 STOCK (S03NL7CSA) - 2003 года выпуска
-
№АртикулНазвание
-
17512007 BOLTBOLT
-
27555792 WASHERWASHER
-
37510504 SCREWSCREW
-
47555783 WASHER, FLATWASHER, FLAT
-
55521498 BUMPER, JOUNCE REARBUMPER, JOUNCE REAR
-
55432946 LINER, BUMPERLINER, BUMPER
-
61541840 RAIL ASSY., 151, (LEFT) (INCL. 1, 2, 3, 4, 5, 6, 18, 19, 31, 32)RAIL ASSY., 151, (LEFT) (INCL. 1, 2, 3, 4, 5, 6, 18, 19, 31, 32)
-
61541841 RAIL ASSY., 151, (RIGHT) (INCL. 1, 2, 3, 4, 5, 6, 18, 19, 31, 32)RAIL ASSY., 151, (RIGHT) (INCL. 1, 2, 3, 4, 5, 6, 18, 19, 31, 32)
-
77542324 NUT, NYLOKNUT, NYLOK
-
85245411 BRKT-RAIL, REINFBRKT-RAIL, REINF
-
97542439 NUT, NYLOKNUT, NYLOK
-
107515317 BOLTBOLT
-
117515346 SCREWSCREW
-
127556179 WASHER-SPRING, CON 5/16X.090-YWASHER-SPRING, CON 5/16X.090-Y
-
131590317 BOGIE WHEEL ASSY., PLAIN, 5.62BOGIE WHEEL ASSY., PLAIN, 5.62
-
145631065 BLOCK-WHEEL MOUNT, LWTBLOCK-WHEEL MOUNT, LWT
-
157541925 NUT, NYLOKNUT, NYLOK
-
167517227 SCREWSCREW
-
177542404 NUTNUT
-
185130530 BLOCK-IDLER BOLT ADJ.BLOCK-IDLER BOLT ADJ.
-
197621501 RIVETRIVET
-
201590318-293 SCROLLED WHEEL ASSY., 5.62, I RED (INCL. 21, 22)SCROLLED WHEEL ASSY., 5.62, I RED (INCL. 21, 22)
-
201590318-312 SCROLLED WHEEL ASSY., 5.62, I BLUE (INCL. 21, 22)SCROLLED WHEEL ASSY., 5.62, I BLUE (INCL. 21, 22)
-
213514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
227718407 RING-RETAINING (1 PER WHEEL)RING-RETAINING (1 PER WHEEL)
-
237515438 BOLTBOLT
-
247555983 WASHER,FLAT(10)WASHER,FLAT(10)
-
255434334 GUIDE-SPRING SQUAREGUIDE-SPRING SQUARE
-
257661123 PIN-CLEVIS 3/16X1 1/4PIN-CLEVIS 3/16X1 1/4
-
257661644 PIN, HITCHPIN, HITCH
-
265333948 SPACER-.407X.625X1.33SPACER-.407X.625X1.33
-
277512457 BOLTBOLT
-
287661845 RIVETRIVET
-
295521581-309 SLIDER,.45/74",SERVICE,BASICSLIDER,.45/74",SERVICE,BASIC
-
295521595-309 SLIDER,.45/74",SERVICE,BASICSLIDER,.45/74",SERVICE,BASIC
-
307515199 SCREWSCREW
-
317541925 NUT, NYLOKNUT, NYLOK
-
325434355 CAP-RAIL TIP UHMWCAP-RAIL TIP UHMW
