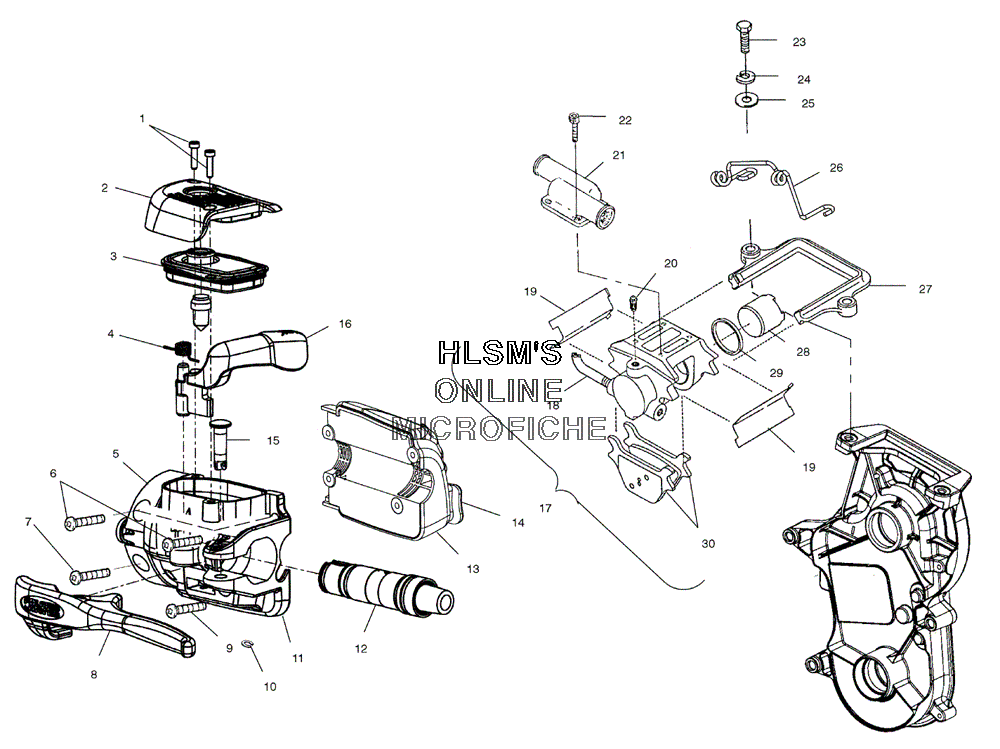

BRAKE ASSEMBLY для Polaris 700 XC EDGE F/O (S03NP7CS) - 2003 года выпуска
-
№АртикулНазвание
-
12201254 COVER SCREW, KITCOVER SCREW, KIT
-
22201255 COVER ASSY, KIT (INCL. 1, 3)COVER ASSY, KIT (INCL. 1, 3)
-
42201250 KIT PARK LEVER SPRINGKIT PARK LEVER SPRING
-
52010219 MASTER CYLINDER W/PIPE THROTTLE ASSY KIT (INCL. 2, 4, 8, 11, 12, 15)MASTER CYLINDER W/PIPE THROTTLE ASSY KIT (INCL. 2, 4, 8, 11, 12, 15)
-
67517441 SCREW (.75)SCREW (.75)
-
77512078 SCREW (1.12)SCREW (1.12)
-
82201943 LEVER, 3 NOTCH/PIN/RING KITLEVER, 3 NOTCH/PIN/RING KIT
-
97517566 SCREW (1.50)SCREW (1.50)
-
102201945 SNAP RING, KITSNAP RING, KIT
-
112202146 MASTER CYLINDER W/PIPE THROTTLE KIT ASSYMASTER CYLINDER W/PIPE THROTTLE KIT ASSY
-
114010157 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
122201944 CARTRIDGE SUB ASSY KIT (5/8")CARTRIDGE SUB ASSY KIT (5/8")
-
132010167 CONTROL ASSY (BASIC) (LEFT)CONTROL ASSY (BASIC) (LEFT)
-
132010168 CONTROL ASSY BASE W/SA (ACE) (LEFT)CONTROL ASSY BASE W/SA (ACE) (LEFT)
-
145433291 BUTTON SWITCH HI/LO CONTROL (LEFT)BUTTON SWITCH HI/LO CONTROL (LEFT)
-
152201946 PIVOT PIN, ALUM W/SNAP RING KITPIVOT PIN, ALUM W/SNAP RING KIT
-
162201251 PARK LEVER AND SPRING KIT (INCL. 4)PARK LEVER AND SPRING KIT (INCL. 4)
-
171910344 BRAKE CALIPER, HD LIQ NOSW (INCL. 28, 29, 30)BRAKE CALIPER, HD LIQ NOSW (INCL. 28, 29, 30)
-
181910546 LINE BRAKE, EDGE BRAIDEDLINE BRAKE, EDGE BRAIDED
-
192200467 CLIP SPRING, KIT (QTY. 2)CLIP SPRING, KIT (QTY. 2)
-
201930735 INLET, KITINLET, KIT
-
211930728 COOLER, WATER BRAKECOOLER, WATER BRAKE
-
212201024 GASKET, BRAKE COOLERGASKET, BRAKE COOLER
-
221930729 SCREW SET (PKG. OF 4)SCREW SET (PKG. OF 4)
-
237515521 BOLTBOLT
-
247552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
257555801 WASHERWASHER
-
265244413 GUIDE ROPEGUIDE ROPE
-
271930733 CALIPER BRACKET, KITCALIPER BRACKET, KIT
-
281930734 PISTON SEAL, KIT (INCL. 29)PISTON SEAL, KIT (INCL. 29)
-
292200466 SEALSEAL
-
302201430 BRAKE, PAD TYPE 81 KIT (LARGE) (INCL. 19)BRAKE, PAD TYPE 81 KIT (LARGE) (INCL. 19)
