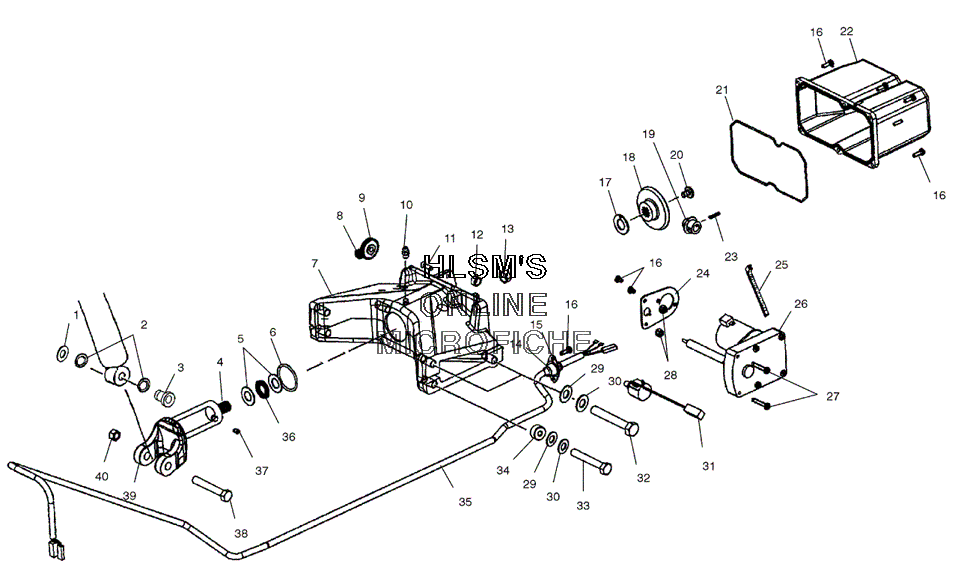

ELECTRIC MODULE (M - 10) (ACE) для Polaris 700 XC SP EDGE M-10 F/O (S03NE7CS) - 2003 года выпуска
-
№АртикулНазвание
-
15133403 BUSHING - .875X1.125X.100BUSHING - .875X1.125X.100
-
25411092 O - RINGO - RING
-
35133402 BUSHING - FLANGE, .385X.870X1.110BUSHING - FLANGE, .385X.870X1.110
-
45133159 SHAFT - SCREW, M - 10 ACESHAFT - SCREW, M - 10 ACE
-
53514388 BEARING - RACEWAY, M - 10 ACEBEARING - RACEWAY, M - 10 ACE
-
65412229 O - RINGO - RING
-
71541692 ASSY. - CASTING, M - 10 ACE, ELEC (INCL. 6, 10, 12, 13)ASSY. - CASTING, M - 10 ACE, ELEC (INCL. 6, 10, 12, 13)
-
75133155 ASSY. - CASTING, M - 10 ACE, ELECASSY. - CASTING, M - 10 ACE, ELEC
-
85434728 GEAR - PLASTIC, 12 TOOTH SPURGEAR - PLASTIC, 12 TOOTH SPUR
-
95434727 GEAR - PLASTIC, 32 TOOTH, SPURGEAR - PLASTIC, 32 TOOTH, SPUR
-
107080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
117518088 SCREWSCREW
-
123514385 BEARING - PLAIN, .375X.469X.250BEARING - PLAIN, .375X.469X.250
-
133514403 BEARING - PLAIN, .500X.593X.375BEARING - PLAIN, .500X.593X.375
-
145434492 GROMMET - WIRE, M - 10 ACE ELECGROMMET - WIRE, M - 10 ACE ELEC
-
155222998 PLATE, GROMMETPLATE, GROMMET
-
167511866 SCREWSCREW
-
177556201 WASHER - THRUSTWASHER - THRUST
-
183221135 GEAR - BEVEL, LARGE, M - 10 ACEGEAR - BEVEL, LARGE, M - 10 ACE
-
193221136 GEAR - BEVEL, SMALL, M - 10 ACEGEAR - BEVEL, SMALL, M - 10 ACE
-
207518152 SCREWSCREW
-
215434293 SEAL - COVER, M - 10 ACESEAL - COVER, M - 10 ACE
-
225434292 COVER - MOTOR, M - 10 ACE, ELECTRICCOVER - MOTOR, M - 10 ACE, ELECTRIC
-
237661161 PIN - DRIVLOKPIN - DRIVLOK
-
245246536 PLATE - MOTOR SUPPORT, M10 ACEPLATE - MOTOR SUPPORT, M10 ACE
-
257080138 CABLE TIECABLE TIE
-
264010596 MOTOR - M - 10 ACE, ELECTRICMOTOR - M - 10 ACE, ELECTRIC
-
277518087 SCREWSCREW
-
287547004 NUTNUT
-
297556042 WASHER, FLATWASHER, FLAT
-
307552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
314010780 POTENTIOMETER - M10 ACE, 10 TURNPOTENTIOMETER - M10 ACE, 10 TURN
-
327518006 SCREWSCREW
-
337518005 SCREWSCREW
-
345133351 SPACERSPACER
-
352461104 HARNESS - WIRE, M10 ACE, ELECTRIC (INCL. 14)HARNESS - WIRE, M10 ACE, ELECTRIC (INCL. 14)
-
363514387 BEARING - THRUST, M - 10 ACEBEARING - THRUST, M - 10 ACE
-
377518037 SCREW, SETSCREW, SET
-
387515438 BOLTBOLT
-
395133325 CLEVIS - MACHINED, M - 10 ACECLEVIS - MACHINED, M - 10 ACE
-
407542439 NUT, NYLOKNUT, NYLOK
