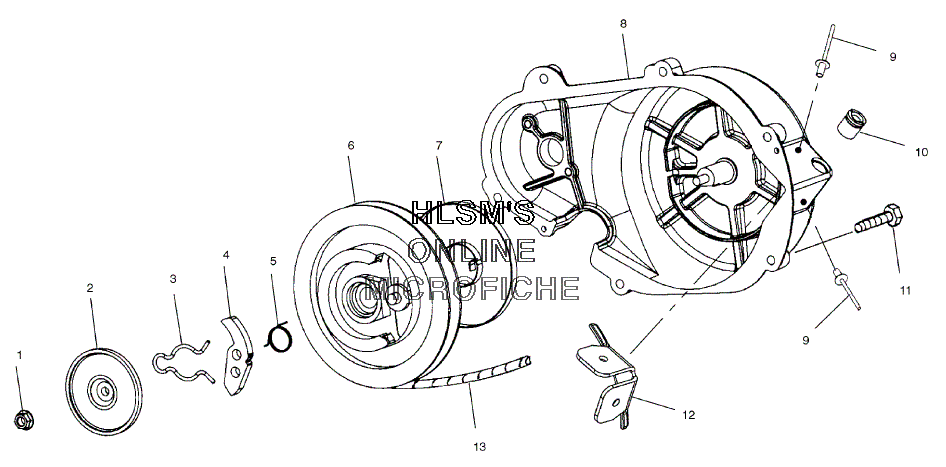

STARTER - RECOIL ASSEMBLY для Polaris 700 XC SP EDGE X F/O (S03NA7CS) - 2003 года выпуска
-
№АртикулНазвание
-
13040163 NUT, FLANGENUT, FLANGE
-
23040164 PLATE, FRICTIONPLATE, FRICTION
-
33040167 SPRING, FRICTIONSPRING, FRICTION
-
45246108 RATCHER PAWL ELEC REVRATCHER PAWL ELEC REV
-
53040166 SPRING, RETURNSPRING, RETURN
-
63040168 REELREEL
-
73040170 SPRING, SPIRALSPRING, SPIRAL
-
83040160 RECOIL, ASSY E/R SHIELDRECOIL, ASSY E/R SHIELD
-
97661148 RIVET ALUM POP GRIPRIVET ALUM POP GRIP
-
103040171 GUIDE, ROPEGUIDE, ROPE
-
117516823 SCREWSCREW
-
125246218 SHIELD RECOIL ROPESHIELD RECOIL ROPE
-
133040169 ROPE, STARTERROPE, STARTER
-
131202408 RECOIL E/R, SHEILD ASSY (INCL. 1-10, 13 AND STARTING PULLEY)RECOIL E/R, SHEILD ASSY (INCL. 1-10, 13 AND STARTING PULLEY)
