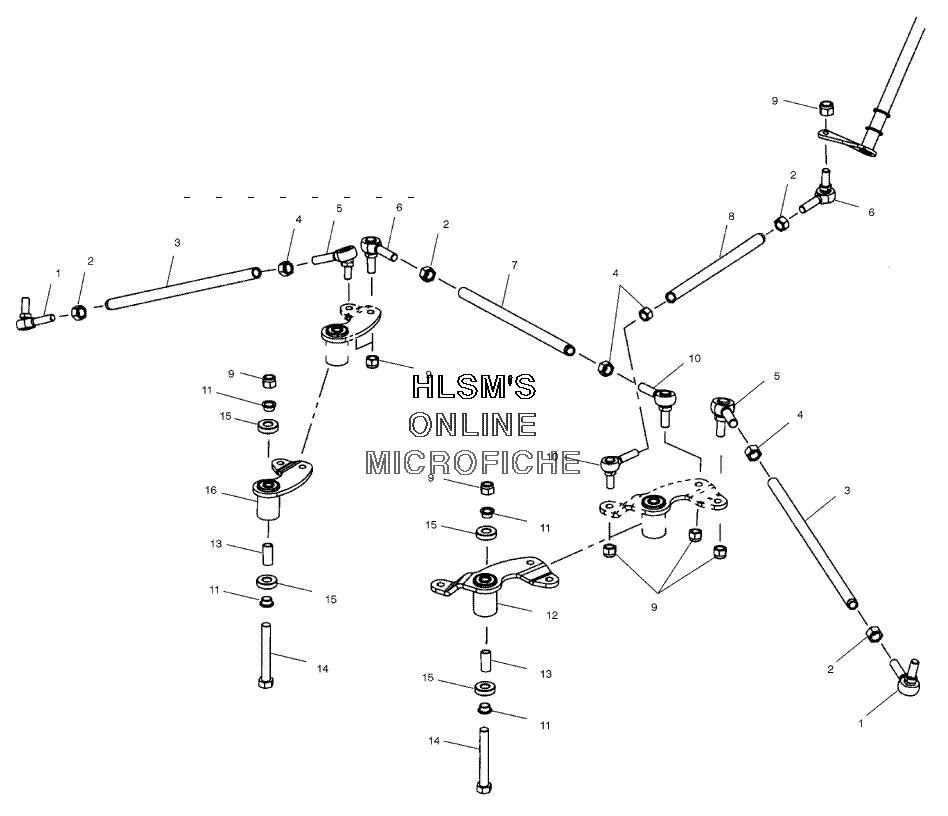

STEERING LINKAGE для Polaris 800 RMK 151 F/O (S03NL8CS) - 2003 года выпуска
-
№АртикулНазвание
-
17061086 ROD-END 3/8, 50Ш, 1.00, (RIGHT)ROD-END 3/8, 50Ш, 1.00, (RIGHT)
-
27542401 NUT, HEX, (RIGHT)NUT, HEX, (RIGHT)
-
35333937 ROD-TIE RODROD-TIE ROD
-
47542424 NUT, (LEFT)NUT, (LEFT)
-
57061085 ROD-END 3/8, 50Ш, .750, (LEFT)ROD-END 3/8, 50Ш, .750, (LEFT)
-
67061076 ROD END-3/8 (RIGHT), HI-ANGLE, PRROD END-3/8 (RIGHT), HI-ANGLE, PR
-
75333772 ROD, STEERING RACK, 11.50ROD, STEERING RACK, 11.50
-
85333773-067 ROD,DRAGLINK,12.50,STEELROD,DRAGLINK,12.50,STEEL
-
97542439 NUT, NYLOKNUT, NYLOK
-
107061075 ROD END-3/8 (LEFT), HI-ANGLE, PRROD END-3/8 (LEFT), HI-ANGLE, PR
-
115132106 BUSHING-REDUCER, 12MM TO .385BUSHING-REDUCER, 12MM TO .385
-
121820957 PITMAN ARM ASSY. (INCL. 11, 13, 15)PITMAN ARM ASSY. (INCL. 11, 13, 15)
-
135133423 SPACER-TUBE PITMAN/IDLER ARMSSPACER-TUBE PITMAN/IDLER ARMS
-
147512435 SCREWSCREW
-
153514320 BEARING-BALL, 600ILLUBEARING-BALL, 600ILLU
-
161820959 IDLER ARM ASSY. (INCL. 11, 13, 15)IDLER ARM ASSY. (INCL. 11, 13, 15)
