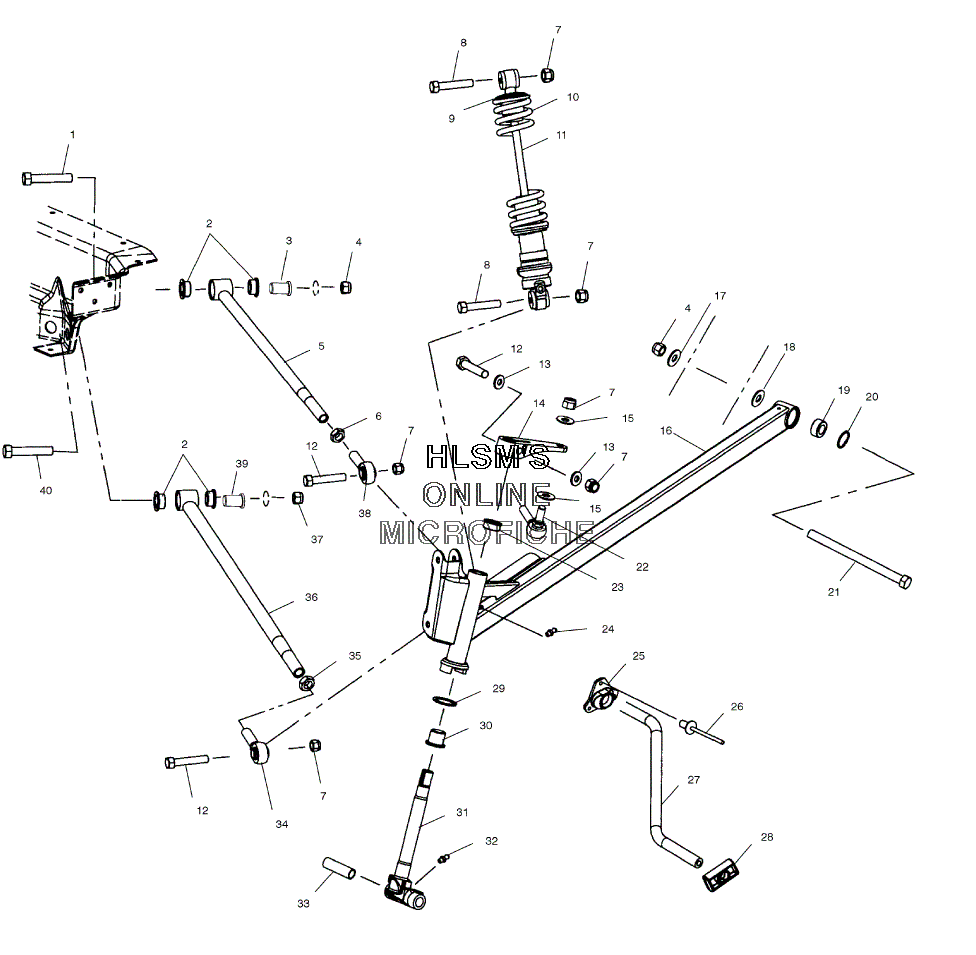

SUSPENSION - FRONT для Polaris 800 XC EDGE F/O (S03NP8CSA/CSB) - 2003 года выпуска
-
№АртикулНазвание
-
17517980 BOLTBOLT
-
25434036 BUSHING, PIVOT, INNERBUSHING, PIVOT, INNER
-
35132779 BUSHING - SHLDRBUSHING - SHLDR
-
47547066 NUTNUT
-
51820679-067 RADIUS ROD, UPPER (BLACK)RADIUS ROD, UPPER (BLACK)
-
51820679-216 WELD - RADIUS ROD, UPPER, YELLOWWELD - RADIUS ROD, UPPER, YELLOW
-
67542520 NUT, JAMNUT, JAM
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515433 SCREWSCREW
-
95630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
107041950-067 SPRING - COMP, 68/160#, 11.5 (BLACK)SPRING - COMP, 68/160#, 11.5 (BLACK)
-
117041976 SHOCK - IFS, IFPSHOCK - IFS, IFP
-
127517583 SCREWSCREW
-
137555832 WASHERWASHER
-
145132728 ARM - STEERING, MACHINEDARM - STEERING, MACHINED
-
157555797 WASHER, FLATWASHER, FLAT
-
161821165-293 ASSY. - TRAILING ARM, SVC (RED), (LEFT) (INCL. 19, 20)ASSY. - TRAILING ARM, SVC (RED), (LEFT) (INCL. 19, 20)
-
161821166-293 ASSY. - TRAILING ARM, SVC (RED), (RIGHT) (INCL. 19, 20)ASSY. - TRAILING ARM, SVC (RED), (RIGHT) (INCL. 19, 20)
-
161821165-216 ASSY. - TRAILING ARM, SVC, (LEFT), S (YELLOW) (INCL. 19, 20)ASSY. - TRAILING ARM, SVC, (LEFT), S (YELLOW) (INCL. 19, 20)
-
161821166-216 ASSY. - TRAILING ARM, SVC, (RIGHT), S (YELLOW) (INCL. 19, 20)ASSY. - TRAILING ARM, SVC, (RIGHT), S (YELLOW) (INCL. 19, 20)
-
161821165-385 ASSY. - TRAILING ARM, SVC (CLOUDSILVER) (INCL. 19, 20)ASSY. - TRAILING ARM, SVC (CLOUDSILVER) (INCL. 19, 20)
-
161821166-385 ASSY. - TRAILING ARM, SVC (CLOUDSILVER) (INCL. 19, 20)ASSY. - TRAILING ARM, SVC (CLOUDSILVER) (INCL. 19, 20)
-
177555820 WASHER, FLATWASHER, FLAT
-
185132364 CUP, TRAILING ARM MNTCUP, TRAILING ARM MNT
-
197061042 BEARING - SPHERICAL, 7/16, PLASTICBEARING - SPHERICAL, 7/16, PLASTIC
-
207710437 RING, RETAININGRING, RETAINING
-
217512099 SCREWSCREW
-
227061057 ROD END - 3/8, PL, 75Ш, 1.00, (RIGHT)ROD END - 3/8, PL, 75Ш, 1.00, (RIGHT)
-
233573909 BUSHING - FLANGEBUSHING - FLANGE
-
247080433 FITTING, LUBRICATION, THREADED(10FITTING, LUBRICATION, THREADED(10
-
255433234 BUSHING - TORSION BARBUSHING - TORSION BAR
-
267621452 RIVETRIVET
-
275244415-067 BAR, TRSN, 1/2, 42.5 (BLACK)BAR, TRSN, 1/2, 42.5 (BLACK)
-
285434369 SLIDE - TORSION BAR, 1/2, ANTIRATTLSLIDE - TORSION BAR, 1/2, ANTIRATTL
-
297556509 BUSHINGBUSHING
-
303574208 BUSHING, FLANGEDBUSHING, FLANGED
-
316230225-067 SHAFT - SPINDLE, W/STEER STOP (BLACK)SHAFT - SPINDLE, W/STEER STOP (BLACK)
-
327080306 FITTING, LUBE.W/BALL CK.FITTING, LUBE.W/BALL CK.
-
335010158 BUSHING, PIVOTBUSHING, PIVOT
-
347061060 ROD END, RADIUS, 1/2ROD END, RADIUS, 1/2
-
357542711 NUT - JAMNUT - JAM
-
361820677-067 RADIUS ROD, LOWER (BLACK)RADIUS ROD, LOWER (BLACK)
-
361820677-216 WELD - RADIUS ROD, LOWER, YELLOWWELD - RADIUS ROD, LOWER, YELLOW
-
377547065 NUTNUT
-
387061061 ROD END, RADIUS, 7/16ROD END, RADIUS, 7/16
-
395132780 BUSHING - SHLDBUSHING - SHLD
-
407512684 BOLTBOLT
