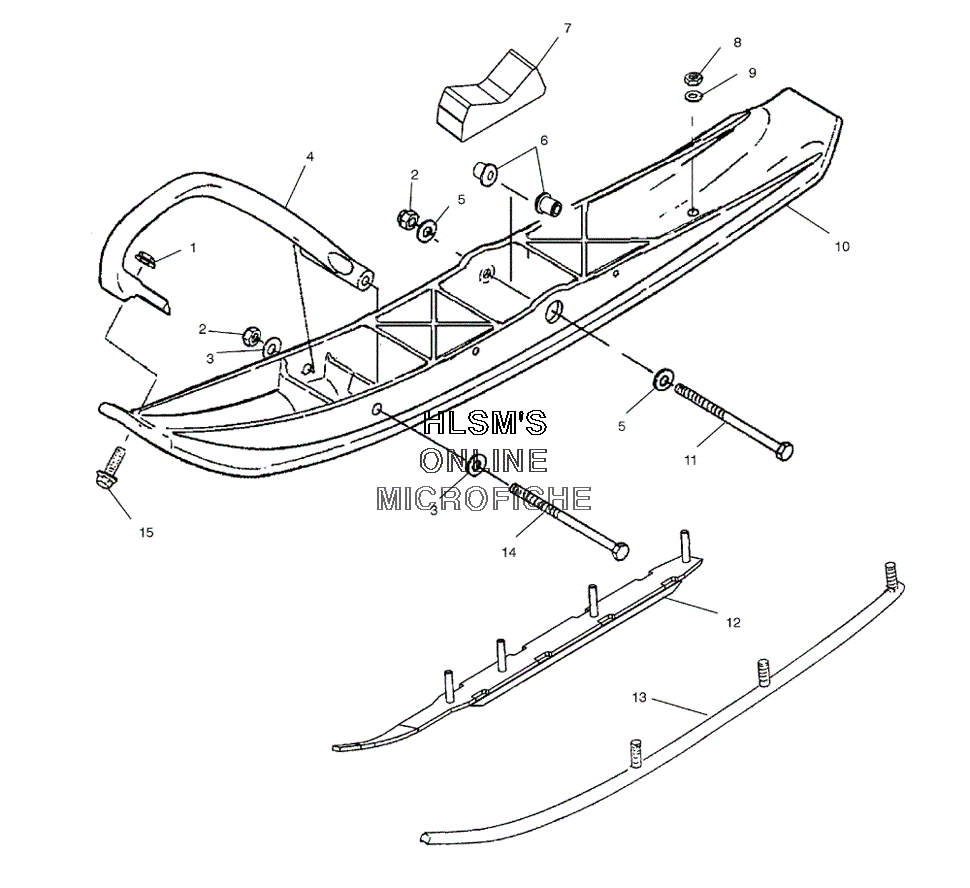

SKI ASSEMBLY для Polaris 800 XC SP EDGE M-10 F/O (S03NE8CS) - 2003 года выпуска
-
№АртикулНазвание
-
17542321 NUT, FLANGENUT, FLANGE
-
27542439 NUT, NYLOKNUT, NYLOK
-
37555832 WASHERWASHER
-
45434165-216 TOE - PLASTIC SKI, S/YELLOWTOE - PLASTIC SKI, S/YELLOW
-
45434165-070 TOE - PLASTIC SKI (BLACK)TOE - PLASTIC SKI (BLACK)
-
45434165-293 TOE - PLASTIC SKI (BLACK)TOE - PLASTIC SKI (BLACK)
-
57556130 WASHERWASHER
-
65132637 BUSHING, METALBUSHING, METAL
-
75412018 STOP, RUBBERSTOP, RUBBER
-
87542324 NUT, NYLOK (QTY 8 FOR DUAL, QTY. 6 FOR STD.)NUT, NYLOK (QTY 8 FOR DUAL, QTY. 6 FOR STD.)
-
97556175 WASHER (QTY 8 FOR DUAL, QTY. 6 FOR STD.)WASHER (QTY 8 FOR DUAL, QTY. 6 FOR STD.)
-
101820929-070 ASSY.- COMP SKI, BLANK, SVC (BLACK)ASSY.- COMP SKI, BLANK, SVC (BLACK)
-
117517968 SCREWSCREW
-
122874066 SKAG, ACCU - TRAC DUAL 4"X60 DEGRSKAG, ACCU - TRAC DUAL 4"X60 DEGR
-
131820461-067 KIT - SKAG, 7/16X4"CARBIDE 60ШCMPKIT - SKAG, 7/16X4"CARBIDE 60ШCMP
-
147515514 BOLTBOLT
-
157515307 BOLTBOLT
