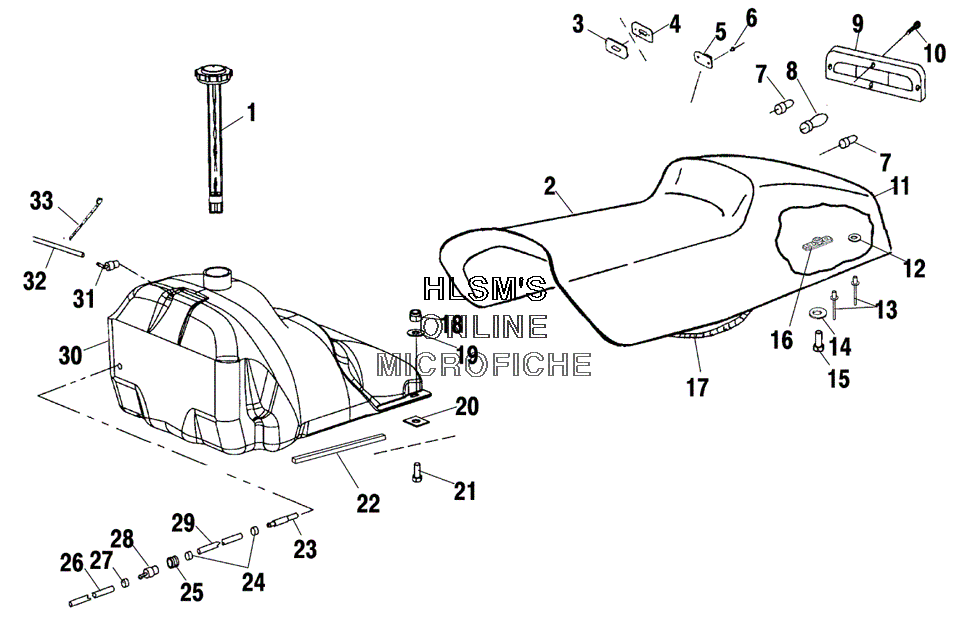

SEAT W/ GAS TANK ASSEMBLY для Polaris 800 XC SP EDGE X M-10 F/O (S03NF8CS) - 2003 года выпуска
-
№АртикулНазвание
-
11240066 CAP - FUEL, 12 GAL W/GAUGECAP - FUEL, 12 GAL W/GAUGE
-
22683009 ASSY.- SEAT, EDGE, STD (BLACK/BLUE)ASSY.- SEAT, EDGE, STD (BLACK/BLUE)
-
22683010 ASSY.- SEAT COVER, EDGE STD (BLACK/BLUE)ASSY.- SEAT COVER, EDGE STD (BLACK/BLUE)
-
22683011 ASSY.- SEAT, EDGE, STD (BLACK/RED)ASSY.- SEAT, EDGE, STD (BLACK/RED)
-
22683012 ASSY.- SEAT COVER, EDGE, STD (BLACK/RED)ASSY.- SEAT COVER, EDGE, STD (BLACK/RED)
-
22683077 ASSY.- SEAT, EDGE X, RED (RED)ASSY.- SEAT, EDGE X, RED (RED)
-
22683078 ASSY.- COVER, EDGE X, (RED)ASSY.- COVER, EDGE X, (RED)
-
22683053 ASSY.- SEAT, EDGE X, SONIC BLUE (BLUE)ASSY.- SEAT, EDGE X, SONIC BLUE (BLUE)
-
22683054 ASSY.- COVER, EDGE X, SONIC BLUE (BLUE)ASSY.- COVER, EDGE X, SONIC BLUE (BLUE)
-
22683055 ASSY.- SEAT, EDGE X (BLACK)ASSY.- SEAT, EDGE X (BLACK)
-
22683056 ASSY.- COVER, EDGE X (BLACK)ASSY.- COVER, EDGE X (BLACK)
-
37080550 GROMMET, RELATCH, 1", BOTT.GROMMET, RELATCH, 1", BOTT.
-
47080549 GROMMET, RELATCH, 1", TOPGROMMET, RELATCH, 1", TOP
-
57080548 TWISTLOCK, RELATCH, 1", W/HOLETWISTLOCK, RELATCH, 1", W/HOLE
-
67621337 RIVETRIVET
-
74030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
84030045 BULBBULB
-
95430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
107511840 SCREWSCREW
-
115433341 HOUSING - TAILLIGHTHOUSING - TAILLIGHT
-
127555727 WASHERWASHER
-
137621319 RIVETRIVET
-
147558301 WASHER, FLATWASHER, FLAT
-
157517219 SCREWSCREW
-
165631194 NUT - SEATNUT - SEAT
-
172460399 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
187542122 NUT - NYLOKNUT - NYLOK
-
197555960 WASHER, FLATWASHER, FLAT
-
207670021 NUT, SPEEDNUT, SPEED
-
217512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
225810947 FOAM, SEALFOAM, SEAL
-
237052215 PICK - UP, FUEL, W/MESHPICK - UP, FUEL, W/MESH
-
247080768 RING, COMPRESSIONRING, COMPRESSION
-
255432981 GROMMETGROMMET
-
268350017-600 FUEL, LINE, ETHER, RED, 5/16"FUEL, LINE, ETHER, RED, 5/16"
-
277080003 CLAMP, HOSECLAMP, HOSE
-
287052269 FITTINGFITTING
-
298350020-600 FUEL, LINE, ETHER, VLT, 3/8"FUEL, LINE, ETHER, VLT, 3/8"
-
302520262 ASSY.- FUEL TANK (INCL. 23 - 31)ASSY.- FUEL TANK (INCL. 23 - 31)
-
317052095 FITTINGFITTING
-
328450061-600 LINE, FUEL, 3MMX7MMLINE, FUEL, 3MMX7MM
-
337080804 CABLE TIE - RELEASABLE, 5 1/2"CABLE TIE - RELEASABLE, 5 1/2"
