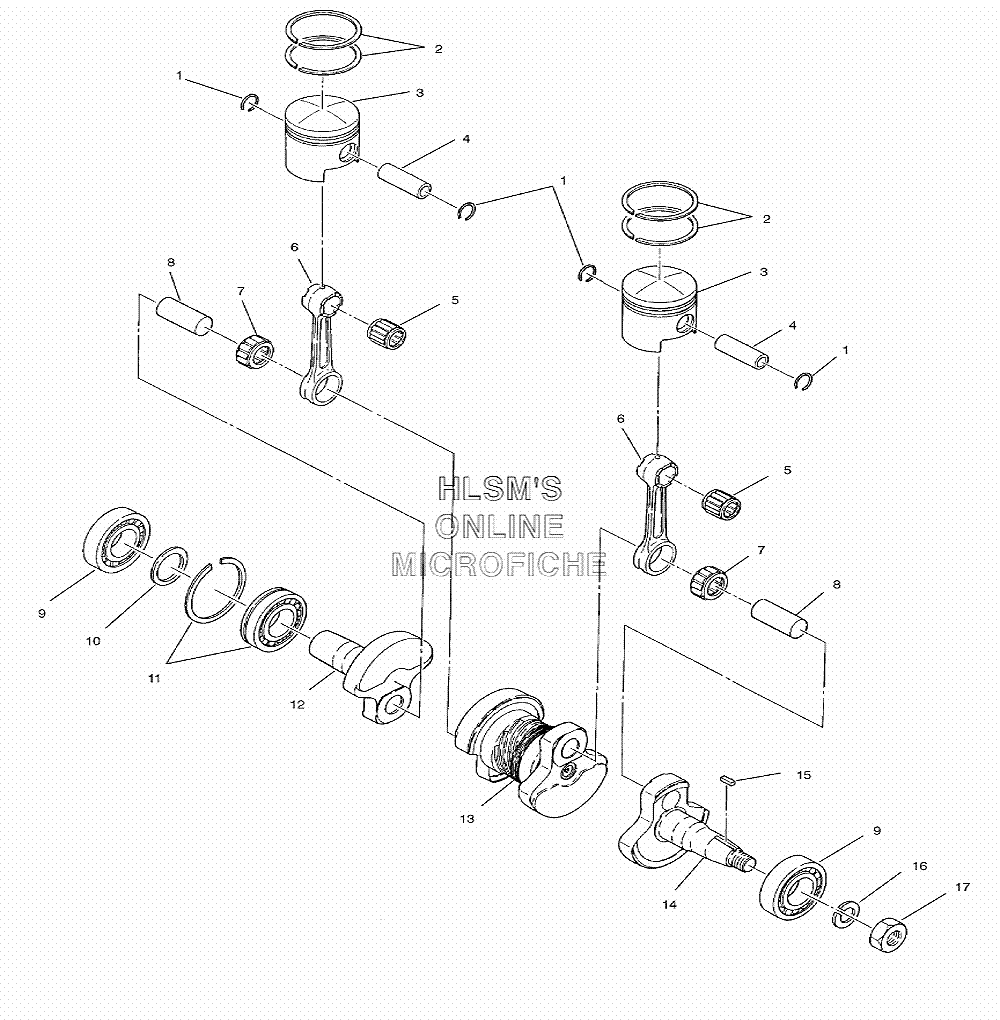

PISTON AND CRANKSHAFT для Polaris INDY 340 TOURING (S03LT3AS) - 2003 года выпуска
-
№АртикулНазвание
-
13084456 CLIP, PISTON PINCLIP, PISTON PIN
-
23083587 SET PISTON RING (STD)SET PISTON RING (STD)
-
23084319 SET, PISTON RING (.25MM/.010" OVERSIZE)SET, PISTON RING (.25MM/.010" OVERSIZE)
-
23083719 SET PISTON RING (.50MM/.020" OVERSIZE)SET PISTON RING (.50MM/.020" OVERSIZE)
-
33085840 SET PISTON (STD) (INCL. 1)SET PISTON (STD) (INCL. 1)
-
33085841 SET PISTON (.25MM/.010" OVERSIZE) (INCL. 1)SET PISTON (.25MM/.010" OVERSIZE) (INCL. 1)
-
33085842 SET PISTON (.50MM/.020" OVERSIZE) (INCL. 1)SET PISTON (.50MM/.020" OVERSIZE) (INCL. 1)
-
43084455 PISTON, PINPISTON, PIN
-
53080998 BEARING, SMALL ENDBEARING, SMALL END
-
63083581 ROD, CONNECTINGROD, CONNECTING
-
73083583 BEARING, LARGE ENDBEARING, LARGE END
-
83083582 PIN, CRANKPIN, CRANK
-
93084580 BEARING, BALLBEARING, BALL
-
103083399 SPACERSPACER
-
113084602 BEARING, BALLBEARING, BALL
-
123083580 CRANKSHAFT #3CRANKSHAFT #3
-
133083579 ASSY CRANKSHAFT #2 (INCL. 8)ASSY CRANKSHAFT #2 (INCL. 8)
-
143083577 CRANKSHAFT (INCL. 6-14)CRANKSHAFT (INCL. 6-14)
-
143083578 CRANKSHAFT #1CRANKSHAFT #1
-
153081447 KEYKEY
-
163083094 WASHER SPRINGWASHER SPRING
-
173083093 NUTNUT
