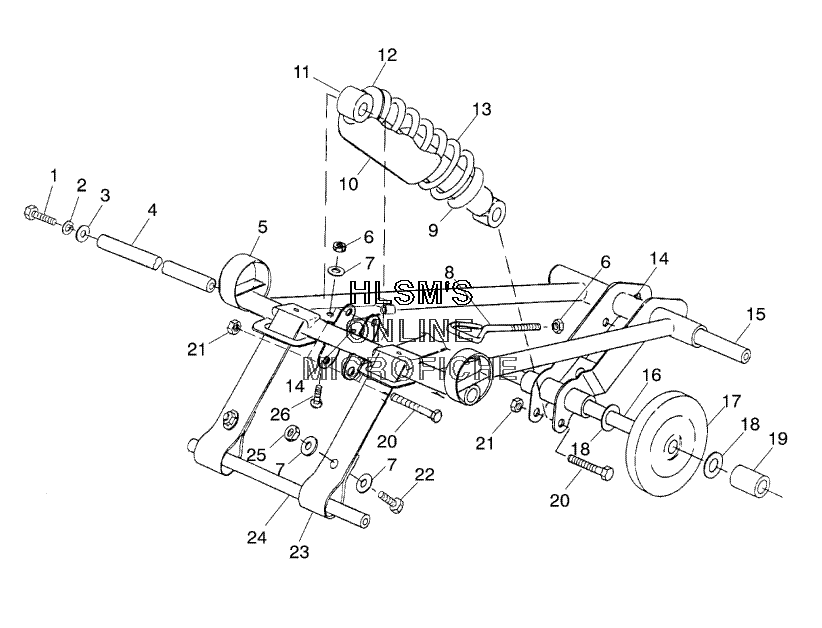

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris SPORT TOURING DELUXE (S03SU5BSA) - 2003 года выпуска
-
№АртикулНазвание
-
17517435 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
45020908 SHAFTSHAFT
-
51541466-067 TORQUE ARM FRONT, X10, QA, (BLACK)TORQUE ARM FRONT, X10, QA, (BLACK)
-
67542324 NUT, NYLOKNUT, NYLOK
-
77556175 WASHER-.325X1.20X.090, FL-YWASHER-.325X1.20X.090, FL-Y
-
87010050 BOLT, EYEBOLT, EYE
-
95245067 RETAINER-SPRING, GAB, PLATEDRETAINER-SPRING, GAB, PLATED
-
105430671 SHIELD-SPRINGSHIELD-SPRING
-
117041745 SHOCK, FRT.TRACK, X10, 136SHOCK, FRT.TRACK, X10, 136
-
125630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
137041253-067 SPRING, COMPRESSION, BLACKSPRING, COMPRESSION, BLACK
-
147080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
171543018 WHEEL, IDLERWHEEL, IDLER
-
187556301 BUSHINGBUSHING
-
195332784 SPACER, OUTERSPACER, OUTER
-
207515433 SCREWSCREW
-
217542411 NUT, FLEXLOCNUT, FLEXLOC
-
227517313 SCREWSCREW
-
235411045 STRAP, LIMITER, FRONTSTRAP, LIMITER, FRONT
-
257542344 NUT, NYLOKNUT, NYLOK
-
267512377 BOLT, CARRIAGEBOLT, CARRIAGE
