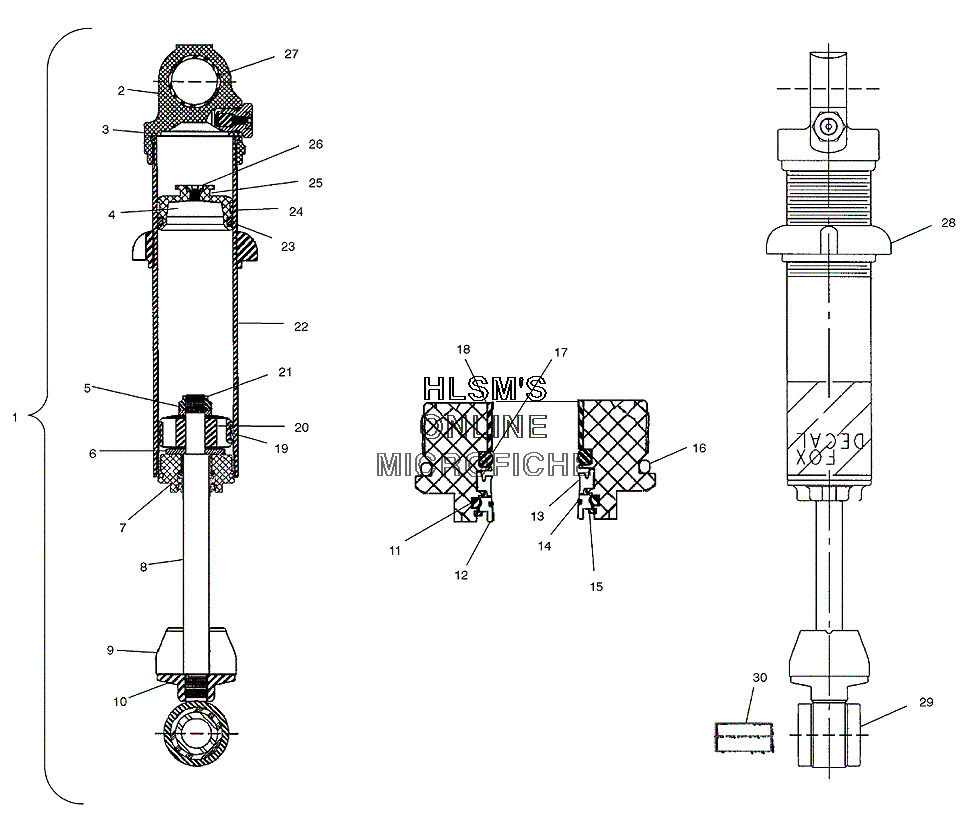

SUSPENSION - FRONT TRACK SHOCK (M-10) для Polaris SUPERSPORT M-10 F/O (S03NE5BS) - 2003 года выпуска
-
№АртикулНазвание
-
17042223 SHOCK FRONT TRACKSHOCK FRONT TRACK
-
21500443 BODY CAP, ASSYBODY CAP, ASSY
-
31500108 O-RINGO-RING
-
41500187 PISTON FLOATINGPISTON FLOATING
-
51500015 PLATE, BACKUPPLATE, BACKUP
-
61500017 PLATE, TOP OUTPLATE, TOP OUT
-
71500490 BEARING, W/P.S. GROOVEBEARING, W/P.S. GROOVE
-
81500247 SHAFTSHAFT
-
91500441 BUMPER (.498 ID X .883 TLG)BUMPER (.498 ID X .883 TLG)
-
101500164 EYELET, BASEEYELET, BASE
-
111500483 O-RINGO-RING
-
121500485 SCRAPER FIST, BRONZESCRAPER FIST, BRONZE
-
131500266 U-CUP 4300 URETHU-CUP 4300 URETH
-
141500484 O-RINGO-RING
-
151500486 RING SNAP, INTERNALRING SNAP, INTERNAL
-
161500228 O-RINGO-RING
-
171500127 O-RINGO-RING
-
181500488 BEARINGBEARING
-
191500002 BEARING, PISTONBEARING, PISTON
-
202200618 KIT, VALV.PISTONKIT, VALV.PISTON
-
211500016 NUT, LOCKNUT, LOCK
-
221500458 BODY, ASSYBODY, ASSY
-
231500003 O-RING, END CAPO-RING, END CAP
-
241500006 BEARING, EXTERNALBEARING, EXTERNAL
-
251500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
261500018 SCREWSCREW
-
271500444 BEARING RBCBEARING RBC
-
285432304 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
291500309 BUSHINGBUSHING
-
301500310 SLEEVESLEEVE
