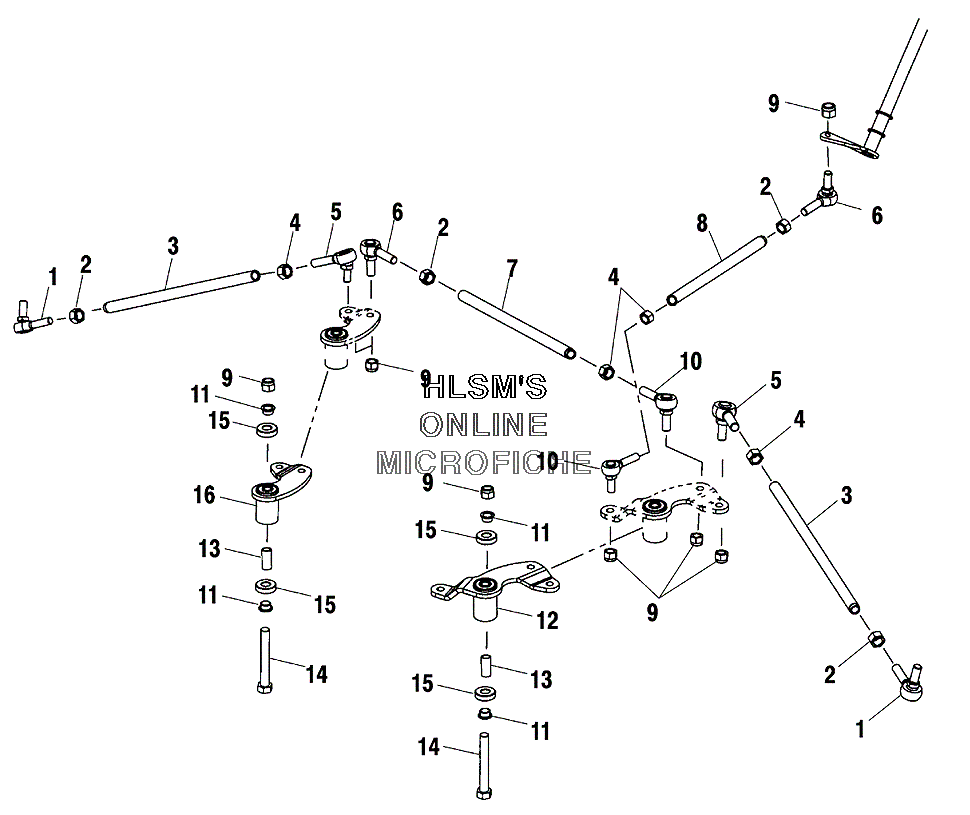

STEERING ASSEMBLY для Polaris SUPERSPORT M-10 X F/O (S03NF5BS) - 2003 года выпуска

№

Артикул

Название
1

7061057 ROD END (RIGHT)

ROD END (RIGHT)

9 780 ₽
2

7542401 NUT, HEX (RIGHT)

NUT, HEX (RIGHT)

110 ₽
3

5333949 ROD TIE

ROD TIE

6 660 ₽
4

7542424 NUT (LEFT)

NUT (LEFT)

150 ₽
5

7061055 ROD END 750 STUD (LEFT)

ROD END 750 STUD (LEFT)

9 780 ₽
6

7061076 ROD END 3/8 HI-ANGLE, PR (RIGHT)

ROD END 3/8 HI-ANGLE, PR (RIGHT)

9 780 ₽
7

5333772 ROD, STEERING RACK (11.50)

ROD, STEERING RACK (11.50)

6 660 ₽
8

5333773-067 DRAGLINK, ROD 12.50 STEEL

DRAGLINK, ROD 12.50 STEEL

4 790 ₽
9

7542439 NUT, NYLOK

NUT, NYLOK

110 ₽
10

7061075 ROD END 3/8 HI-ANGLE, PR (LEFT)

ROD END 3/8 HI-ANGLE, PR (LEFT)

9 780 ₽
11

5132106 BUSHING REDUCER (12MM TO .385)

BUSHING REDUCER (12MM TO .385)

1 730 ₽
12

1820957 PITMAN ARM, ASSY (INCL. 11, 13, 15)

PITMAN ARM, ASSY (INCL. 11, 13, 15)

33 280 ₽
13

5133423 SPACER TUBE PITMANATURAL IDLER ARMS

SPACER TUBE PITMANATURAL IDLER ARMS

880 ₽
14

7512435 SCREW

SCREW

250 ₽
15

3514320 BEARING BALL, 600ILLU

BEARING BALL, 600ILLU

3 750 ₽
16

1820959 IDLER ARM, ASSY (INCL. 11, 13, 15)

IDLER ARM, ASSY (INCL. 11, 13, 15)

30 160 ₽
