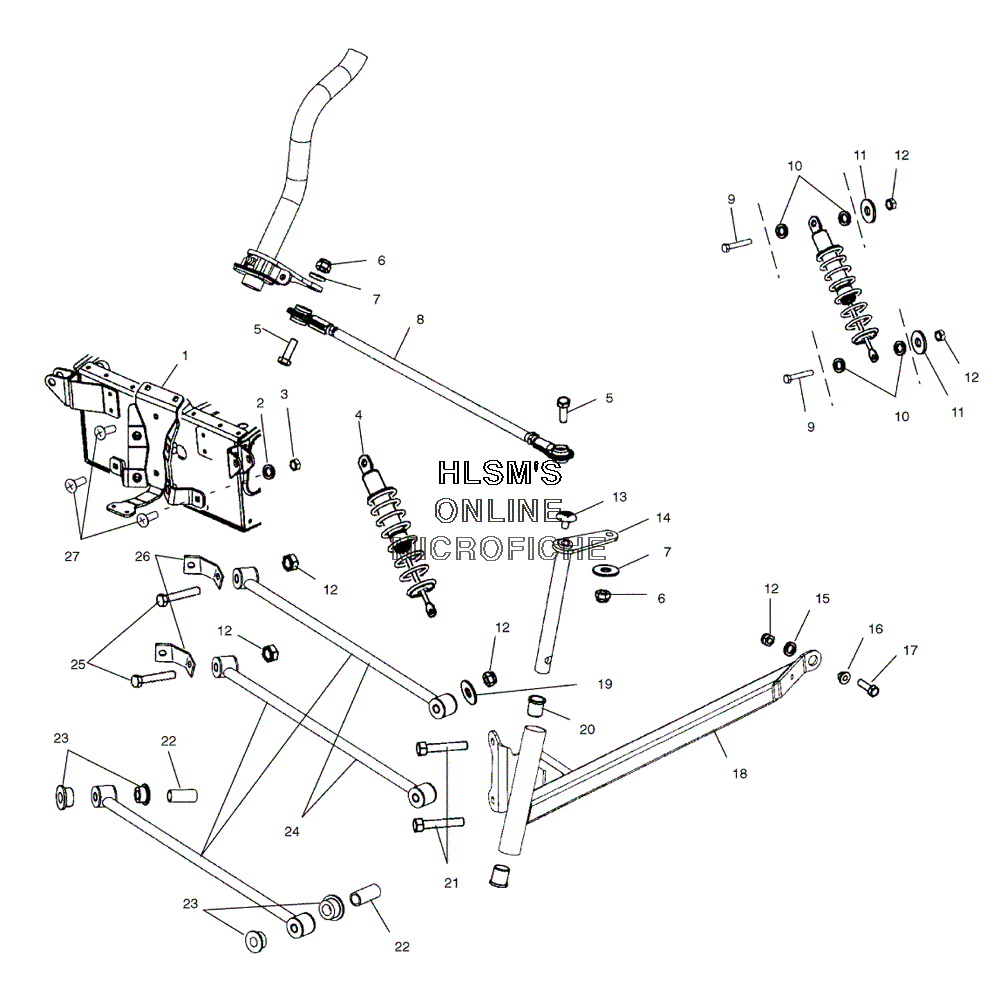

SUSPENSION - FRONT W/ STEERING для Polaris 120 PRO X (S04WB1AS) - 2004 года выпуска
-
№АртикулНазвание
-
15243858-067 BRACKET, RAD ROD/STRAPSTMOUNT (BLACK)BRACKET, RAD ROD/STRAPSTMOUNT (BLACK)
-
27558301 WASHER, FLATWASHER, FLAT
-
37542122 NUT NYLOKNUT NYLOK
-
41820768-385 SHOCK, IFS ASSY (CLOUD SILVER)SHOCK, IFS ASSY (CLOUD SILVER)
-
57515534 SCREWSCREW
-
67542451 NUT, NYLOKNUT, NYLOK
-
77558403 WASHER, WROUGHTWASHER, WROUGHT
-
81820767 TIE ROD ASSYTIE ROD ASSY
-
97517745 BOLT, SHOULDERBOLT, SHOULDER
-
105433624 BUSHING SHOCK MOUNTBUSHING SHOCK MOUNT
-
117556160 WASHERWASHER
-
127542324 NUT, NYLOKNUT, NYLOK
-
135433481-070 CAP SPINDLE (BLACK)CAP SPINDLE (BLACK)
-
141820764 SPINDLESPINDLE
-
155433593 BUSHING EUROTHANEBUSHING EUROTHANE
-
165132329 BUSHINGBUSHING
-
177512310 SCREWSCREW
-
181820774-385 TRAIL ARM (LEFT/CLOUD SILVER)TRAIL ARM (LEFT/CLOUD SILVER)
-
181820775-385 TRAIL ARM (RIGHT/CLOUD SLVER)TRAIL ARM (RIGHT/CLOUD SLVER)
-
197555734 WASHER, FLATWASHER, FLAT
-
203514343 BUSHING, SPINDLEBUSHING, SPINDLE
-
217512329 BOLTBOLT
-
225333834 SPACERSPACER
-
235433547 BUSHING RAD RODBUSHING RAD ROD
-
241820780-385 WELD RAD ROD (CLOUD SILVER)WELD RAD ROD (CLOUD SILVER)
-
257517778 BOLTBOLT
-
265244330-067 BRACKET, SUPPORT RADROD (BLACK)BRACKET, SUPPORT RADROD (BLACK)
-
277512193 BOLT, CARRIAGEBOLT, CARRIAGE
Все узлы модели:
- CARBURETOR ASSEMBLY
- CLUTCH ASSEMBLY
- CONSOLE W/WIRE HARNESS
- CRANKCASE ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD ASSEMBLY W/ WINDSHIELD
- INTAKE AND EXHAUST
- NOSEPAN ASSEMBLY
- PISTON AND CRANKSHAFT
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- SPEED CONTROL - GOVERNOR
- STARTER - RECOIL W/ BLOWER HOUSING
- • SUSPENSION - FRONT W/ STEERING
- SUSPENSION - REAR
- TOOL KIT
- TUNNEL ASSEMBLY
