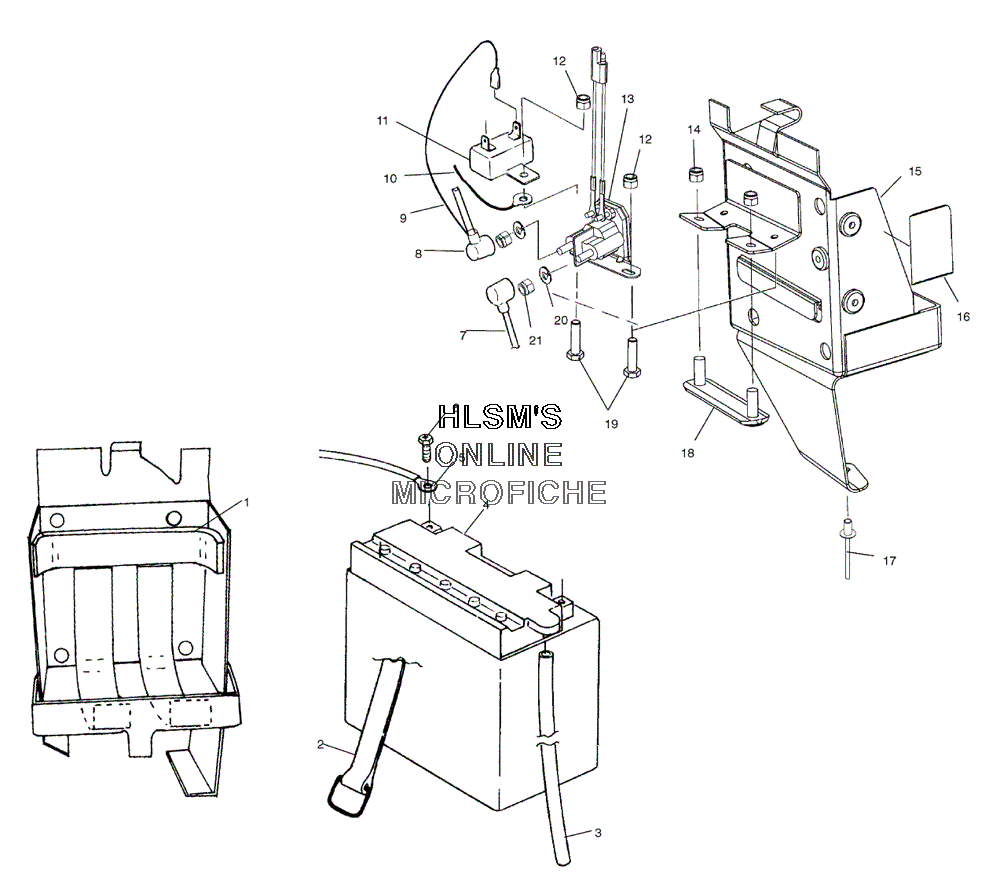

BATTERY BOX для Polaris 340 INDY (S04NB3AS) - 2004 года выпуска
-
№АртикулНазвание
-
15810290 PAD, BATTERYPAD, BATTERY
-
22450020 BATTERY HOLD DOWN STRAP, ASSYBATTERY HOLD DOWN STRAP, ASSY
-
35432077 TUBE, VENTTUBE, VENT
-
44140006 BATTERYBATTERY
-
54010114 CABLE, BATTERY (11") (BLACK)CABLE, BATTERY (11") (BLACK)
-
62200361 BATTERY BOLT (SHORT)BATTERY BOLT (SHORT)
-
74010107 CABLE, SOLENOID/STARTER (16.5") (BLACK)CABLE, SOLENOID/STARTER (16.5") (BLACK)
-
85410346 INSULATED CABLE SOLENOIDINSULATED CABLE SOLENOID
-
92460393 CABLE SOLENOID, ASSYCABLE SOLENOID, ASSY
-
104010108 WIRE, JUMPER SOLENOID/BATTERY (8.5")WIRE, JUMPER SOLENOID/BATTERY (8.5")
-
112434008 BREAKER, CIRCUITBREAKER, CIRCUIT
-
127541925 NUT, NYLOKNUT, NYLOK
-
147542122 NUT NYLOKNUT NYLOK
-
151013679-067 WELD BATTERY BOX (BLACK)WELD BATTERY BOX (BLACK)
-
165810129 FOIL TAPE (4X6)FOIL TAPE (4X6)
-
177621467 RIVET, BLINDRIVET, BLIND
-
181013385 WELD STUD PLATEWELD STUD PLATE
-
197511930 SCREWSCREW
