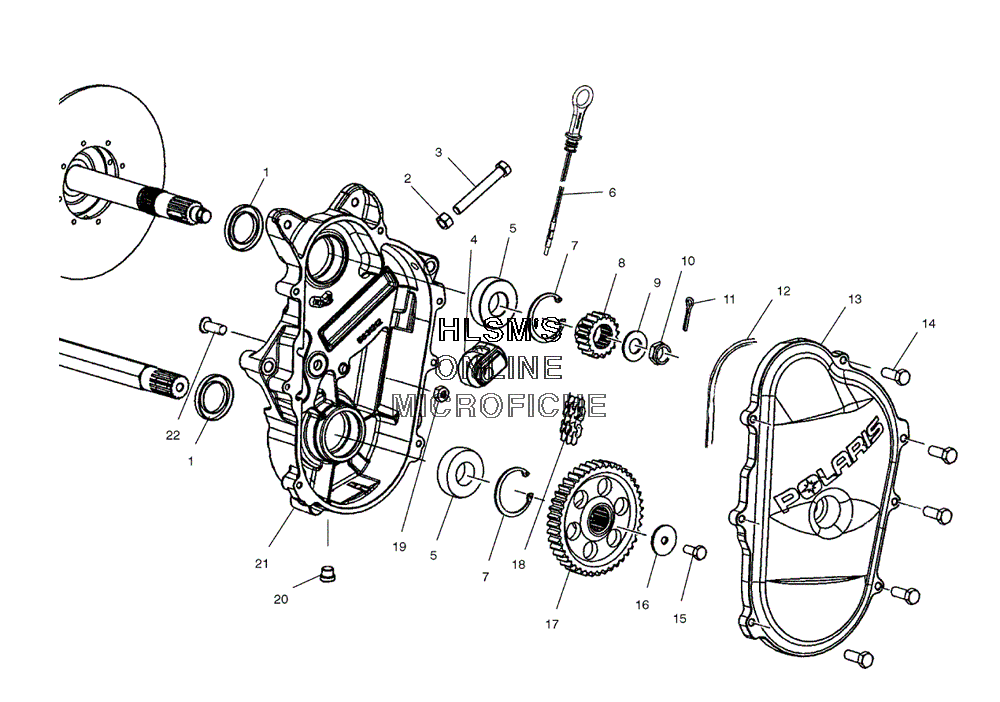

CHAINCASE ASSEMBLY для Polaris 500 XC SP M-10 (S04NP5CS) - 2004 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27542404 NUTNUT
-
37515459 SCREWSCREW
-
41332266 TIGHTENER, SLIDING ASSY (1.265W)TIGHTENER, SLIDING ASSY (1.265W)
-
45630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
43553002 BEARINGBEARING
-
47558702 WASHER THRUSTWASHER THRUST
-
53514309 BEARING, BALLBEARING, BALL
-
61332143 DIPSTICK ASSY (INCL. O-RING)DIPSTICK ASSY (INCL. O-RING)
-
65410675 O-RINGO-RING
-
77718406 RING, RETAININGRING, RETAINING
-
83221098 SPROCKET (22T, 3/4W, 15 SPLINE)SPROCKET (22T, 3/4W, 15 SPLINE)
-
97571620 WASHER, SPRINGWASHER, SPRING
-
107547202 NUT THIN, NYLON INSERT-YNUT THIN, NYLON INSERT-Y
-
117661203 PIN, COTTERPIN, COTTER
-
125411497 GASKET, O-RINGGASKET, O-RING
-
135631354 COVER, CHAINCASE (7.92 CD)COVER, CHAINCASE (7.92 CD)
-
147512242 SCREWSCREW
-
157517979 SCREW HEXAGON HEAD NYLONSCREW HEXAGON HEAD NYLON
-
167571618 WASHER, SPRINGWASHER, SPRING
-
173222099 SPROCKET (40T/15T SPLINE)SPROCKET (40T/15T SPLINE)
-
183221109 CHAIN, HYVO. (3/4W)CHAIN, HYVO. (3/4W)
-
197542451 NUT, NYLOKNUT, NYLOK
-
207052115 PLUGPLUG
-
215134085 CHAINCASE (7.92 CD)CHAINCASE (7.92 CD)
-
227515477 SCREW, CARRIAGESCREW, CARRIAGE
