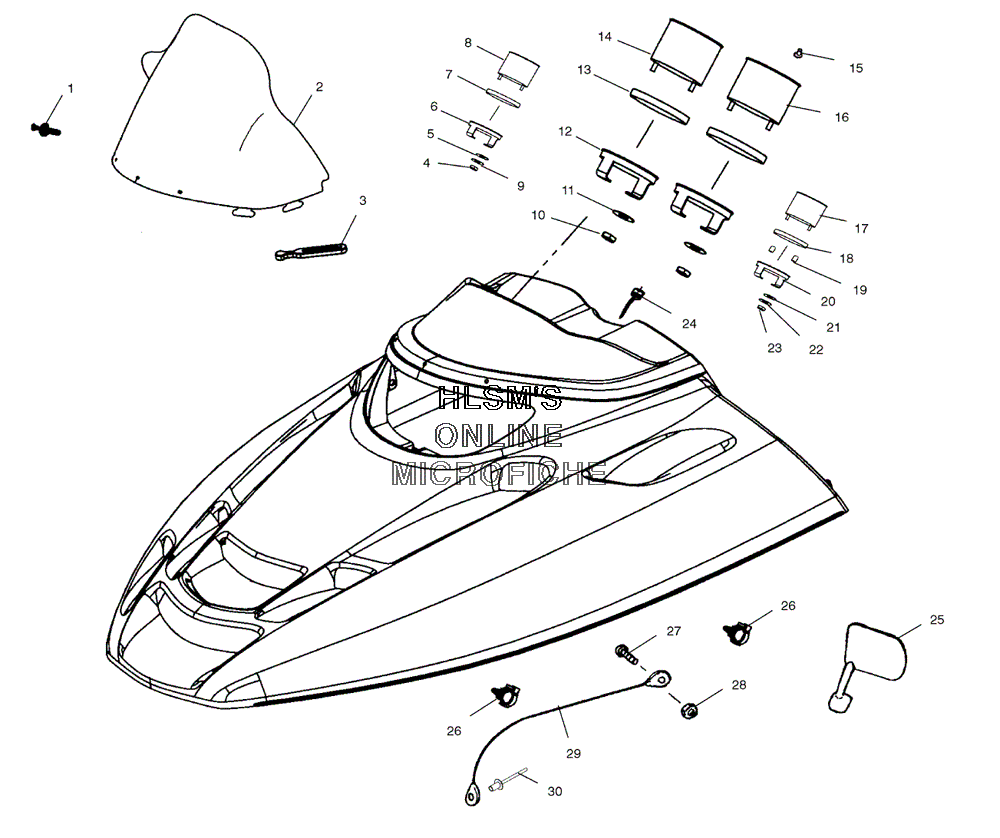

WINDSHIELD/GUAGES/HOOD RETAINER для Polaris 600 CLASSIC (S04ND6ES) - 2004 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTI LOCKRIVET, PLASTI LOCK
-
25435045 WINDSHIELD 15" FLR SMOKE/GRAPHWINDSHIELD 15" FLR SMOKE/GRAPH
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
47541933 NUTNUT
-
53280324 WASHER, FLATWASHER, FLAT
-
63280322 BACK CLAMP, GAUGE (2")BACK CLAMP, GAUGE (2")
-
73280323 CUSHION, RUBBER (2")CUSHION, RUBBER (2")
-
83280404 GAUGE, RIDE CONTROL ASSY (M-10 ACE) (INCL. 6, 7)GAUGE, RIDE CONTROL ASSY (M-10 ACE) (INCL. 6, 7)
-
97555868 WASHER, LOCKWASHER, LOCK
-
107546703 NUT, NYLOKNUT, NYLOK
-
113280157 WASHER, FLATWASHER, FLAT
-
123280210 BRACKET, TACHOMETER/SPEEDOMETER 5"BRACKET, TACHOMETER/SPEEDOMETER 5"
-
133280209 CUSHION, TACHOMETER/SPEEDOMETER RUBBERCUSHION, TACHOMETER/SPEEDOMETER RUBBER
-
142874394 TACH, WITH REV KIT (WHITE/BLACK)TACH, WITH REV KIT (WHITE/BLACK)
-
144030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
153280186 KNOB, TRIP ODOMETER THEAD (LEFT)KNOB, TRIP ODOMETER THEAD (LEFT)
-
163280411 SPD, 5" 120MPH ASSY (WHITE/BLACK)SPD, 5" 120MPH ASSY (WHITE/BLACK)
-
164030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
173280410 FUEL GAUGE, 2" ASSY (WHITE/BLACK)FUEL GAUGE, 2" ASSY (WHITE/BLACK)
-
174060139 FUSEFUSE
-
183280230 CUSHION, FUELGAUGE RUBBER (2")CUSHION, FUELGAUGE RUBBER (2")
-
193280228 SPACER, BRACKET (FUELGAUGE)SPACER, BRACKET (FUELGAUGE)
-
203280229 BRACKET, FUELGAUGE (2")BRACKET, FUELGAUGE (2")
-
213280231 WASHERWASHER
-
223280233 WASHER, SPLITLOCKWASHER, SPLITLOCK
-
233280232 NUTNUT
-
243280385 CABLE SPEEDOMETERCABLE SPEEDOMETER
-
252632246-070 MIRROR ASSY (LEFT/BLACK)MIRROR ASSY (LEFT/BLACK)
-
252632247-070 MIRROR ASSY (RIGHT/BLACK)MIRROR ASSY (RIGHT/BLACK)
-
257556088 WASHER, FLATWASHER, FLAT
-
257546703 NUT, NYLOKNUT, NYLOK
-
264010589 CLIP PLASTIC, DART NYLONCLIP PLASTIC, DART NYLON
-
277512018 SCREWSCREW
-
287541925 NUT, NYLOKNUT, NYLOK
-
297080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
307661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
