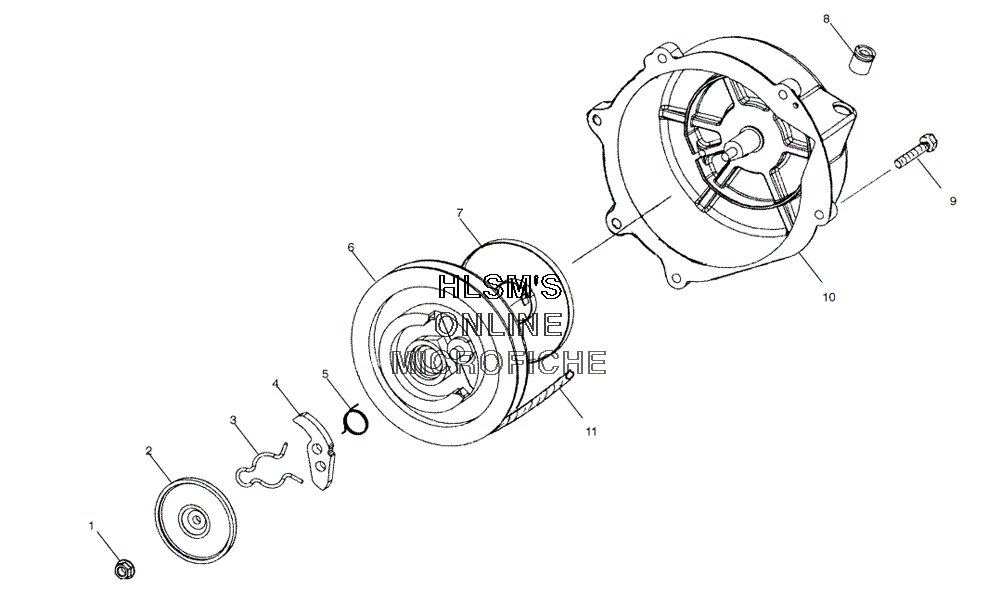

STARTER - RECOIL ASSEMBLY для Polaris 600 PRO X 2 (S04NX6ES) - 2004 года выпуска
-
№АртикулНазвание
-
13040163 NUT FLANGENUT FLANGE
-
23040164 PLATE FRICTIONPLATE FRICTION
-
33040167 SPRING FRICTIONSPRING FRICTION
-
45246108 RATCHET PAWL ELEC REVRATCHET PAWL ELEC REV
-
53040166 SPRING RETURNSPRING RETURN
-
63040168 REELREEL
-
73040170 SPRING SPIRALSPRING SPIRAL
-
83040171 GUIDE ROPEGUIDE ROPE
-
97516827 SCREWSCREW
-
105630645 RECOIL ELECTRIC REV ASSYRECOIL ELECTRIC REV ASSY
-
113040169 ROPE, STARTERROPE, STARTER
-
111202298 RECOIL ELECTRIC REV ASSY (INCL. 1-7, 10, 11)RECOIL ELECTRIC REV ASSY (INCL. 1-7, 10, 11)
