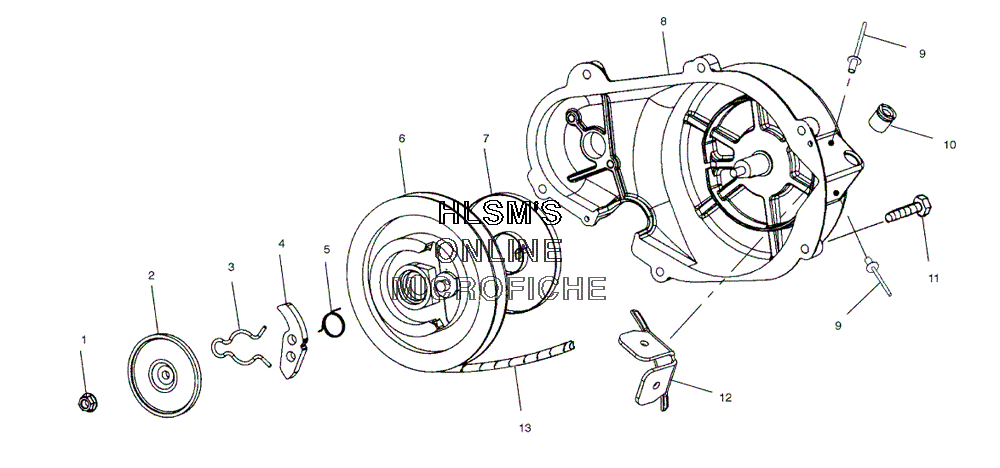

RECOIL STARTER (700) для Polaris 700 CLASSIC TOURING EURO (S04NT7CE) - 2004 года выпуска
-
№АртикулНазвание
-
13040163 NUTNUT
-
23040164 PLATE, FRICTIONPLATE, FRICTION
-
33040167 CLIPCLIP
-
45246108 RATCHET-PAWL ELEC REVRATCHET-PAWL ELEC REV
-
53040166 SPRING, RETURNSPRING, RETURN
-
63040168 REELREEL
-
73040170 SPRING, SPIRALSPRING, SPIRAL
-
83040160 ASM-RECOIL E/R, SHEILDASM-RECOIL E/R, SHEILD
-
97661148 RIVET-ALUM POP 3/16 .270 GRIPRIVET-ALUM POP 3/16 .270 GRIP
-
103040171 GUIDE-ROPEGUIDE-ROPE
-
117516823 SCREWSCREW
-
125246218 SHIELD-RECOIL ROPESHIELD-RECOIL ROPE
-
133040169 ROPE, STARTERROPE, STARTER
-
-1202408 ASM-RECOIL E/R, SHEILD (INCL. 1-10, 13 AND STARTING PULLEY)ASM-RECOIL E/R, SHEILD (INCL. 1-10, 13 AND STARTING PULLEY)
