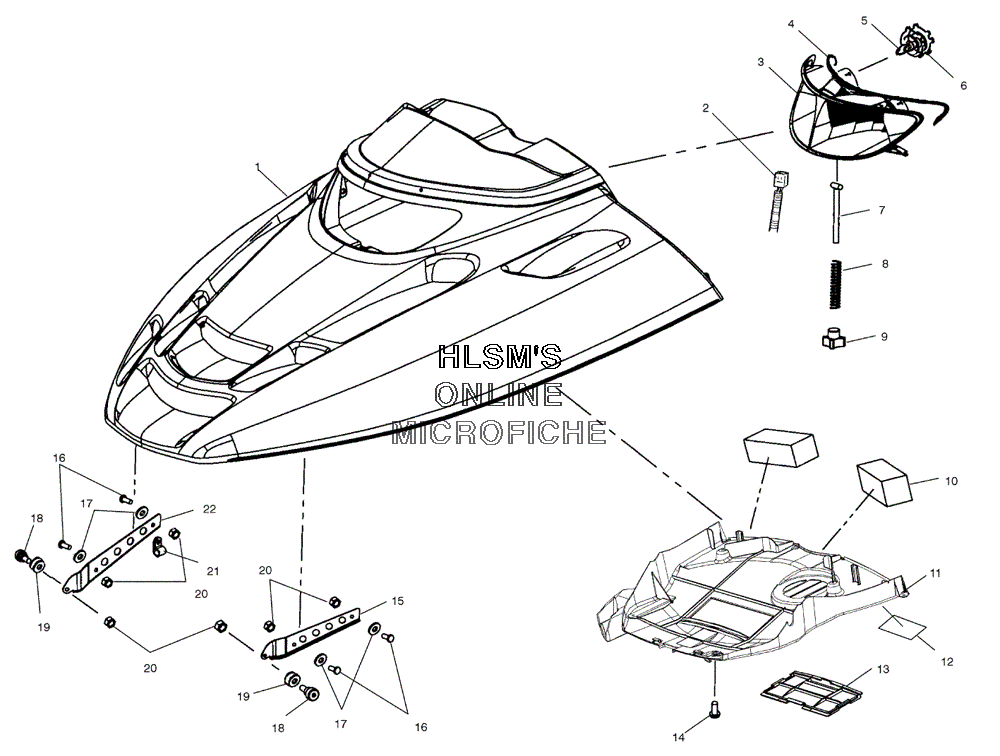

HOOD ASSEMBLY W/ INSTRUMENTS для Polaris 700 CLASSIC TOURING (S04NT7CS) - 2004 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTI-LOCKRIVET, PLASTI-LOCK
-
25435044 WINDSHIELD-17''WINDSHIELD-17''
-
35410970 RETAINER, WINDSHIELD,RETAINER, WINDSHIELD,
-
47541933 NUTNUT
-
57555868 WASHER, LOCK, (S.S.)WASHER, LOCK, (S.S.)
-
63280322 BACK-CLAMP, GAUGE, 2''BACK-CLAMP, GAUGE, 2''
-
73280323 CUSHION, RUBBER, 2''CUSHION, RUBBER, 2''
-
83280404 ASM., GAUGE, RIDE CONTROL (INCL. 6, 7)ASM., GAUGE, RIDE CONTROL (INCL. 6, 7)
-
93280158 NUTNUT
-
103280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
113280157 WASHER, FLATWASHER, FLAT
-
123280210 BRKT, TACH/SPEEDO, 5''BRKT, TACH/SPEEDO, 5''
-
133280209 CUSHION, TACH/SPEEDO, RUBBERCUSHION, TACH/SPEEDO, RUBBER
-
142874401 ASM-TACH, 6P, WHITE W/DET (INCL. 9-13)ASM-TACH, 6P, WHITE W/DET (INCL. 9-13)
-
144030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
153280186 KNOB, TRIP ODOMETER, LEFT HAND THD.KNOB, TRIP ODOMETER, LEFT HAND THD.
-
163280411 ASM-SPD, 5'', 120MPH, WH/BK, W/O ANASM-SPD, 5'', 120MPH, WH/BK, W/O AN
-
164030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
173280410 ASM-FUEL GAUGE, 2'' BCKLT, WHT/BKASM-FUEL GAUGE, 2'' BCKLT, WHT/BK
-
174060139 FUSEFUSE
-
183280230 CUSHION, FUELGAUGE, (2''), RUBBERCUSHION, FUELGAUGE, (2''), RUBBER
-
193280228 SPACER, BRKT, (FUEL GAUGE)SPACER, BRKT, (FUEL GAUGE)
-
203280229 BRACKET, FUEL GAUGE, (2'')BRACKET, FUEL GAUGE, (2'')
-
213280231 WASHERWASHER
-
223280233 WASHER, SPLITLOCKWASHER, SPLITLOCK
-
233280232 NUTNUT
-
243280385 CABLE-SPEEDOMETERCABLE-SPEEDOMETER
-
252632246-070 ASM-MIRROR, LEFT HAND, BLACKASM-MIRROR, LEFT HAND, BLACK
-
252632247-070 ASM-MIRROR, RIGHT HAND, BLACKASM-MIRROR, RIGHT HAND, BLACK
-
257556088 WASHER, FLATWASHER, FLAT
-
257546703 NUT, NYLOKNUT, NYLOK
-
264010589 CLIP-PLASTIC, DART NYLONCLIP-PLASTIC, DART NYLON
-
277512018 SCREWSCREW
-
287541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
297080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
307661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
