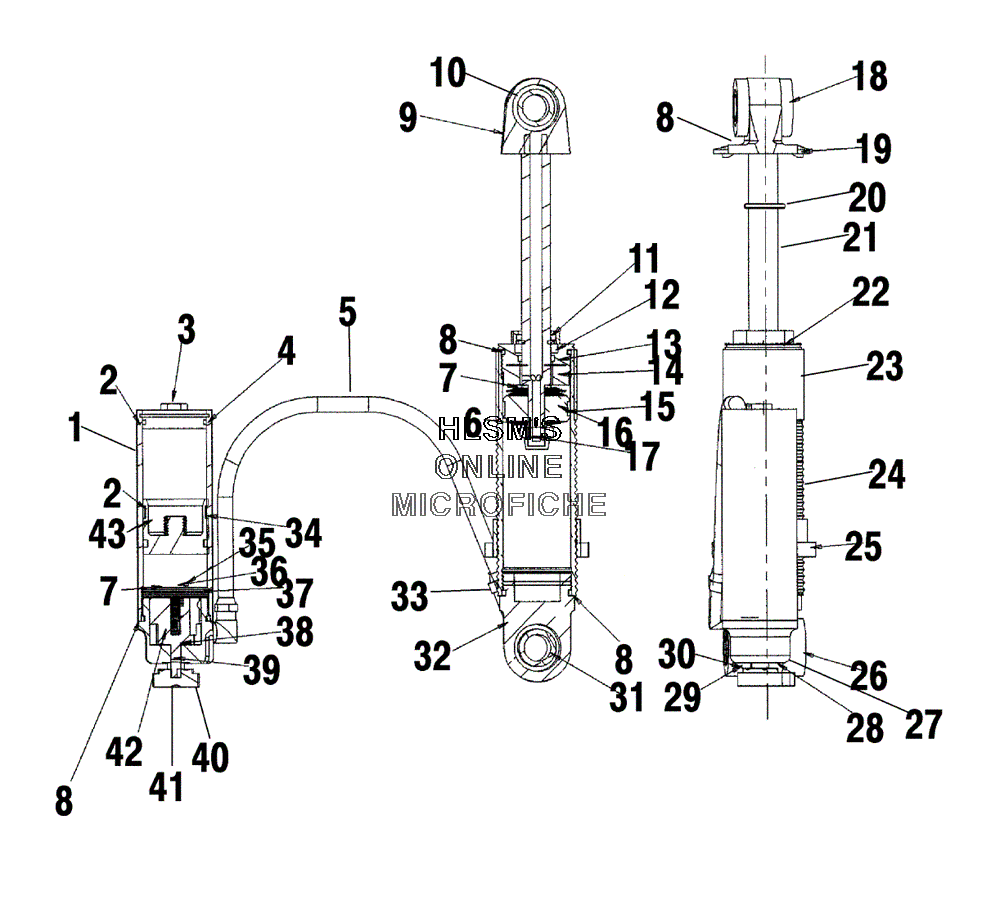

SUSPENSION - FRONT SHOCK TRACK для Polaris 700 PRO X 2 (S04NX6ES) - 2004 года выпуска
-
№АртикулНазвание
-
11800120 BODY RESERVOIRBODY RESERVOIR
-
21800028 O-RING RESERVOIRO-RING RESERVOIR
-
31800106 CAP ENDCAP END
-
31800107 VALVE NEEDLEVALVE NEEDLE
-
31800108 O-RINGO-RING
-
31800109 SCREW BUTTON HEADSCREW BUTTON HEAD
-
41800019 RESERVOIR SNAP RINGRESERVOIR SNAP RING
-
51800111 HOSE ASSYHOSE ASSY
-
61800050 AN WASHER (3/8")AN WASHER (3/8")
-
71800118 WASHERWASHER
-
81800027 O-RING BODYO-RING BODY
-
91800104 EYELETEYELET
-
101800032 SLEEVE (1.202")SLEEVE (1.202")
-
111800034 WIPER D/TYPEWIPER D/TYPE
-
121800035 SHAFT SEAL U CUPSHAFT SEAL U CUP
-
131800037 O-RING SHAFT SEAL HEADO-RING SHAFT SEAL HEAD
-
141800038 SHAFT BUSHINGSHAFT BUSHING
-
151800026 WEAR BANDWEAR BAND
-
161800200 PISTON WITH BAND ASSYPISTON WITH BAND ASSY
-
171800031 CRIMP NUT (3/8")CRIMP NUT (3/8")
-
181800036 BUSHING/URETHANEBUSHING/URETHANE
-
191800116 SPRING RETAINING RINGSPRING RETAINING RING
-
201800095 O-RINGO-RING
-
211800015 SHAFT (6.603")SHAFT (6.603")
-
221800131 SHAFT SEAL HOUSING ASSYSHAFT SEAL HOUSING ASSY
-
231800047 WEAR SLEEVEWEAR SLEEVE
-
241800105 BODY THREADED FTBODY THREADED FT
-
251800046 SPRING RETAINERSPRING RETAINER
-
261800033 BUSHING/URETHANEBUSHING/URETHANE
-
271800126 HOUSING ADJUSTORHOUSING ADJUSTOR
-
281800127 BALL D TENTBALL D TENT
-
291800128 SPRING D TENTSPRING D TENT
-
301800129 O-RINGO-RING
-
311800039 SLEEVE (1.685")SLEEVE (1.685")
-
321800099 LOOP BODYLOOP BODY
-
331800193 FITTING (1/8, 90)FITTING (1/8, 90)
-
331800113 ELBOW NPT (1/8")ELBOW NPT (1/8")
-
331800114 EXTENTION NPT (1/8")EXTENTION NPT (1/8")
-
341800029 WEAR BANDWEAR BAND
-
351800125 BALL CHECKBALL CHECK
-
361800124 BOLT BALL CHECKBOLT BALL CHECK
-
371800072 SHIM VALVE (.015X1.300)SHIM VALVE (.015X1.300)
-
381800052 SHIM VALVE (.010X.700)SHIM VALVE (.010X.700)
-
391800094 O-RINGO-RING
-
401800123 KNOBKNOB
-
411800196 SCREWSCREW
-
421800195 DRUMDRUM
-
431800189 RESERVOIR PISTON WITH BLEED SCREWRESERVOIR PISTON WITH BLEED SCREW
-
431800190 BLEED SCREW WITH O-RINGBLEED SCREW WITH O-RING
-
437042297 SHOCK RES C/A (FRONT)SHOCK RES C/A (FRONT)
