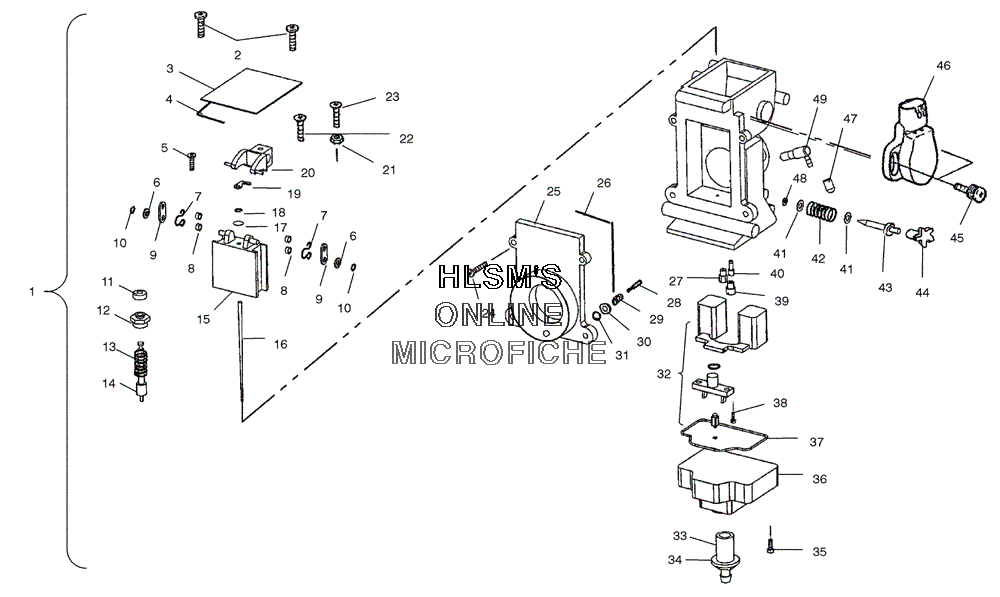

CARBURETOR ASSEMBLY #1 для Polaris 700 XC SP M-10 (S04NP7CS) - 2004 года выпуска
-
№АртикулНазвание
-
11253462 CARBURETOR ASSYCARBURETOR ASSY
-
23130951 SCREWSCREW
-
33130872 CAP, TOPCAP, TOP
-
43130871 GASKETGASKET
-
53130844 SCREWSCREW
-
63130846 WASHER, PACKINGWASHER, PACKING
-
73130856 CLIPCLIP
-
83130845 RINGRING
-
93130857 PLATEPLATE
-
103130847 E-RINGE-RING
-
113130831 CAP, RUBBERCAP, RUBBER
-
123130830 HOLDER, GUIDEHOLDER, GUIDE
-
133130829 SPRINGSPRING
-
143130828 PLUNGER ASSYPLUNGER ASSY
-
153130940 VALVE, PISTON (1.5)VALVE, PISTON (1.5)
-
163131415 NEEDLE JETNEEDLE JET
-
173130867 PACKINGPACKING
-
183130868 E-RINGE-RING
-
193130843 PLATEPLATE
-
203130855 LEVER ASSYLEVER ASSY
-
203130849 LEVER ASSYLEVER ASSY
-
213130848 RINGRING
-
223130854 SCREWSCREW
-
233130850 SCREWSCREW
-
243130825 SCREWSCREW
-
253131439 FUNNEL ASSYFUNNEL ASSY
-
263131356 O-RING, LONG AIR FUNNELO-RING, LONG AIR FUNNEL
-
273130144 JET, MAIN HEXAGON HEADJET, MAIN HEXAGON HEAD
-
283131336 SCREW AIRSCREW AIR
-
293131371 SPRINGSPRING
-
303131372 WASHERWASHER
-
313130522 O-RINGO-RING
-
323131231 FLOAT ASSYFLOAT ASSY
-
333131248 BOLT DRAINBOLT DRAIN
-
343130863 O-RINGO-RING
-
353130824 SCREWSCREW
-
363130858 FLOAT, BODYFLOAT, BODY
-
373130861 O-RINGO-RING
-
383130860 SCREWSCREW
-
393130068 JET, PILOTJET, PILOT
-
403130769 JET, STARTERJET, STARTER
-
413130837 WASHERWASHER
-
423130836 SPRINGSPRING
-
433130987 ADJUSTERADJUSTER
-
443130986 CAPCAP
-
453131010 SCREW (MAG SIDE)SCREW (MAG SIDE)
-
463131009 SENSOR ASSY (MAG SIDE)SENSOR ASSY (MAG SIDE)
-
473130479 CAPCAP
-
483130835 PACKINGPACKING
-
497051020 VALVE, CHECK (90 DEG)VALVE, CHECK (90 DEG)
