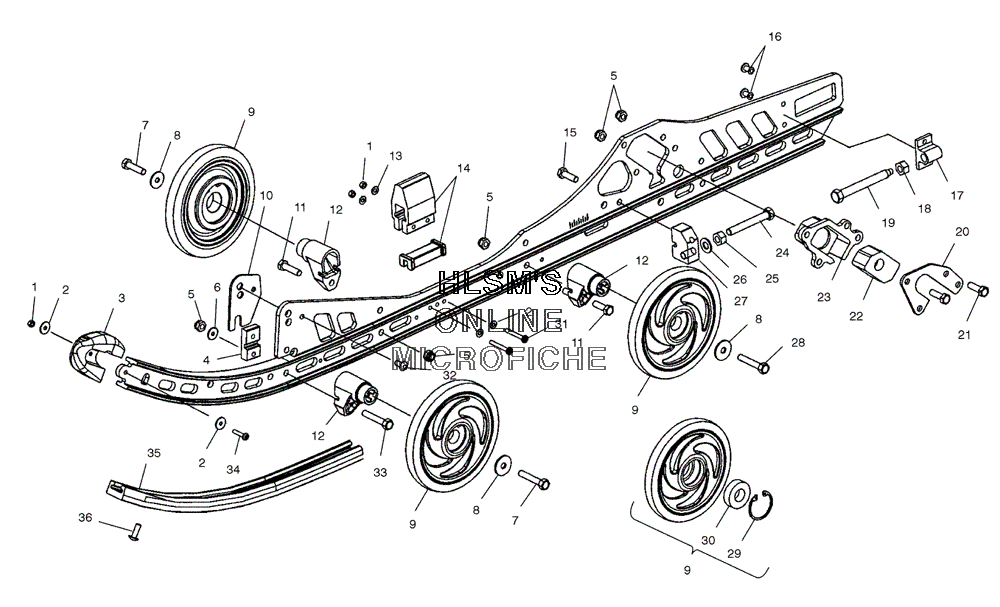

RAIL MOUNTING для Polaris 800 CLASSIC TOURING (S04NT8CS) - 2004 года выпуска
-
№АртикулНазвание
-
17541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
27555792 WASHERWASHER
-
35434374 CAP-RAIL TIPCAP-RAIL TIP
-
45132577 BLOCK-RAIL SUPPORTBLOCK-RAIL SUPPORT
-
57542324 NUT, NYLOKNUT, NYLOK
-
67558402 WASHER, FLATWASHER, FLAT
-
77515382 BOLTBOLT
-
87556179 WASHER-SPRING, CON 5/16X.090-YWASHER-SPRING, CON 5/16X.090-Y
-
91590318-244 ASM-WHEEL, SCROLLED, 5.62, SILVER (INCL. 29, 30)ASM-WHEEL, SCROLLED, 5.62, SILVER (INCL. 29, 30)
-
105244651 PLATE-RAIL SUPPORTPLATE-RAIL SUPPORT
-
117515317 BOLTBOLT
-
125631065 BLOCK-WHEEL MOUNT, LWTBLOCK-WHEEL MOUNT, LWT
-
137555783 WASHER, FLATWASHER, FLAT
-
145412336 BUMPER-TALLBUMPER-TALL
-
145432946 LINER, BUMPERLINER, BUMPER
-
157512392 BOLTBOLT
-
167621501 RIVETRIVET
-
175132444 BLOCK, IDLER BOLT ADJ, 7/16BLOCK, IDLER BOLT ADJ, 7/16
-
187547156 NUT-7/16-14NUT-7/16-14
-
197517773 SCR, 7/16-14X3 3/4XHDSCR, 7/16-14X3 3/4XHD
-
205245045 PLATE-COUPLER BLOCKPLATE-COUPLER BLOCK
-
217512310 SCREWSCREW
-
225434885 BLOCK-SLIDER, LONG, ETS, LEFT HANDBLOCK-SLIDER, LONG, ETS, LEFT HAND
-
225434886 BLOCK-SLIDER, LONG, ETS, RIGHT HANDBLOCK-SLIDER, LONG, ETS, RIGHT HAND
-
235631188 GUIDE-SLIDER, CAST, LEFT HANDGUIDE-SLIDER, CAST, LEFT HAND
-
235631189 GUIDE-SLIDER, CAST, RIGHT HANDGUIDE-SLIDER, CAST, RIGHT HAND
-
247515511 SCREWSCREW
-
257542404 NUTNUT
-
267555806 WASHER, FLATWASHER, FLAT
-
275132584 BLOCK-SHOCK PIVOT THREADEDBLOCK-SHOCK PIVOT THREADED
-
287515346 SCREWSCREW
-
297718407 RING-RETAINING (1 PER WHEEL)RING-RETAINING (1 PER WHEEL)
-
303514303 BEARING #6205 (1 PER WHEEL)BEARING #6205 (1 PER WHEEL)
-
317510504 SCREWSCREW
-
327661845 RIVETRIVET
-
337512329 BOLTBOLT
-
347511975 SCREWSCREW
-
355521632 SLIDER, .45/61'', SERVICE, BASICSLIDER, .45/61'', SERVICE, BASIC
-
367515199 SCREWSCREW
-
-1542004 ASM-RAIL, M12, LH (INCL. 1, 3, 14, 16, 17, 31, 34)ASM-RAIL, M12, LH (INCL. 1, 3, 14, 16, 17, 31, 34)
-
-1542005 ASM-RAIL, M12, RH (INCL. 1, 3, 14, 16, 17, 31, 34)ASM-RAIL, M12, RH (INCL. 1, 3, 14, 16, 17, 31, 34)
