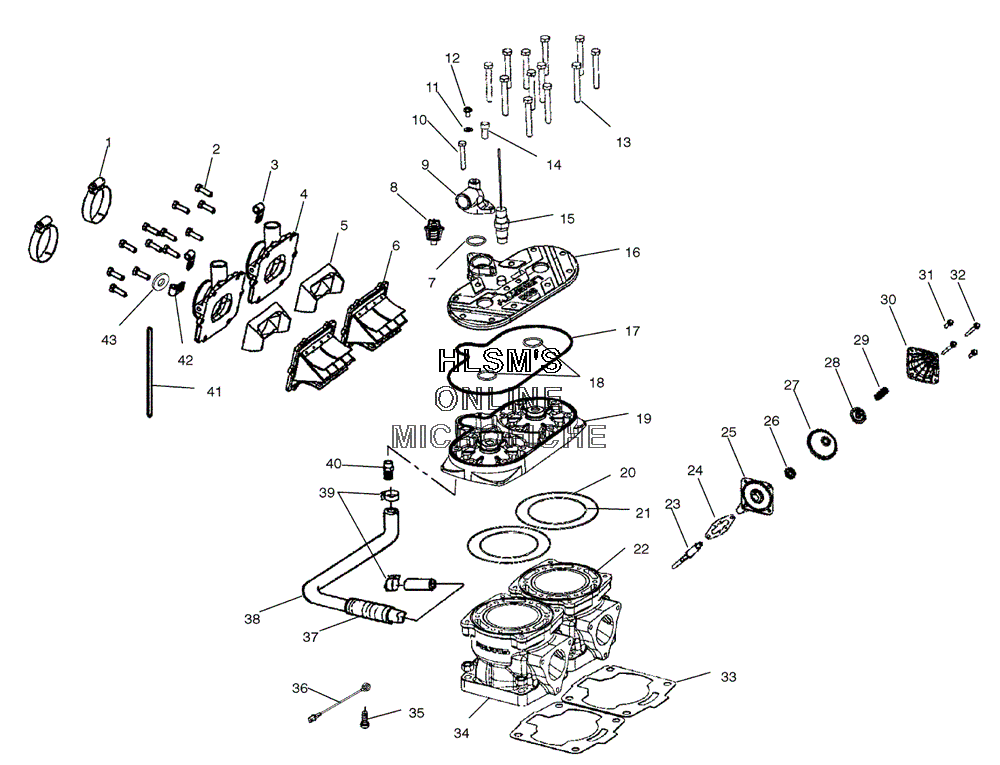

CYLINDER ASSEMBLY для Polaris 800 PRO X (S04NX6ES) - 2004 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSECLAMP, HOSE
-
27517398 SCREWSCREW
-
37080683 CLAMP, HOSECLAMP, HOSE
-
41253485 ADAPTER CARBURETOR (40MM)ADAPTER CARBURETOR (40MM)
-
55433151 STUFFER REED BLOCK NOKSTUFFER REED BLOCK NOK
-
61201825 VALVE, REED ASSYVALVE, REED ASSY
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
87052258 THERMOSTAT WITH OUT BYPASSTHERMOSTAT WITH OUT BYPASS
-
95631391 COVER THERMOSTAT M6 BLLED MACHCOVER THERMOSTAT M6 BLLED MACH
-
107516818 SCREWSCREW
-
117555998 WASHER, FLATWASHER, FLAT
-
127517679 SCREW HEXAGON FLANGESCREW HEXAGON FLANGE
-
137517534 SCREWSCREW
-
147516822 SCREWSCREW
-
154010398 SENSOR THERMISTERSENSOR THERMISTER
-
165631427-329 COVER HEAD (BLACK)COVER HEAD (BLACK)
-
175411294 SEAL, RUBBER HEADSEAL, RUBBER HEAD
-
185410917 O-RINGO-RING
-
193021427 HEAD CYLINDER 3/8 DETON (85MM)HEAD CYLINDER 3/8 DETON (85MM)
-
205412232 O-RINGO-RING
-
215411675 O-RING HI-TMPO-RING HI-TMP
-
223021339 CYLINDER 85MM EV WITH DECOMCYLINDER 85MM EV WITH DECOM
-
235133775 VALVE GUILLOTINE MACHVALVE GUILLOTINE MACH
-
245812350 GASKET BASE TO CYLINDER EXHAUST VALVEGASKET BASE TO CYLINDER EXHAUST VALVE
-
251202216 BASE EXHAUST VALVE DOM ASSYBASE EXHAUST VALVE DOM ASSY
-
265132950 WASHER BELLOWS, EXHAUST VALVE DOMWASHER BELLOWS, EXHAUST VALVE DOM
-
275412399 BELLOWS EXHAUST MODIFIEDBELLOWS EXHAUST MODIFIED
-
285631152 CAP NUT BELLOWS EXHAUST VALVECAP NUT BELLOWS EXHAUST VALVE
-
297041786-11 SPRING COMPRESSION (PINK/YELLOW)SPRING COMPRESSION (PINK/YELLOW)
-
301202640 HOUSING WITH BUSHING ASSYHOUSING WITH BUSHING ASSY
-
317516820 SCREWSCREW
-
327517932 SCREW HEXAGON FLANGESCREW HEXAGON FLANGE
-
335812363 GASKET CYLINDER BASE METAL 800GASKET CYLINDER BASE METAL 800
-
347547013 NUTNUT
-
357517262 SCREW HEXAGON FLANGESCREW HEXAGON FLANGE
-
362410369 SENSOR DETONATION BOSCHSENSOR DETONATION BOSCH
-
375521398-96 CONDUIT, FLEX (.75"ID)CONDUIT, FLEX (.75"ID)
-
385411536 HOSE, BYPASSHOSE, BYPASS
-
397081030 CLAMP BYPASS NORMACLAMP BYPASS NORMA
-
407052222 FITTING, 1/2ID HOSEFITTING, 1/2ID HOSE
-
417080654 RETAINERRETAINER
-
427080880 CLAMP HOSE, .625 DIA VINYL COATEDCLAMP HOSE, .625 DIA VINYL COATED
-
437555836 WASHERWASHER
