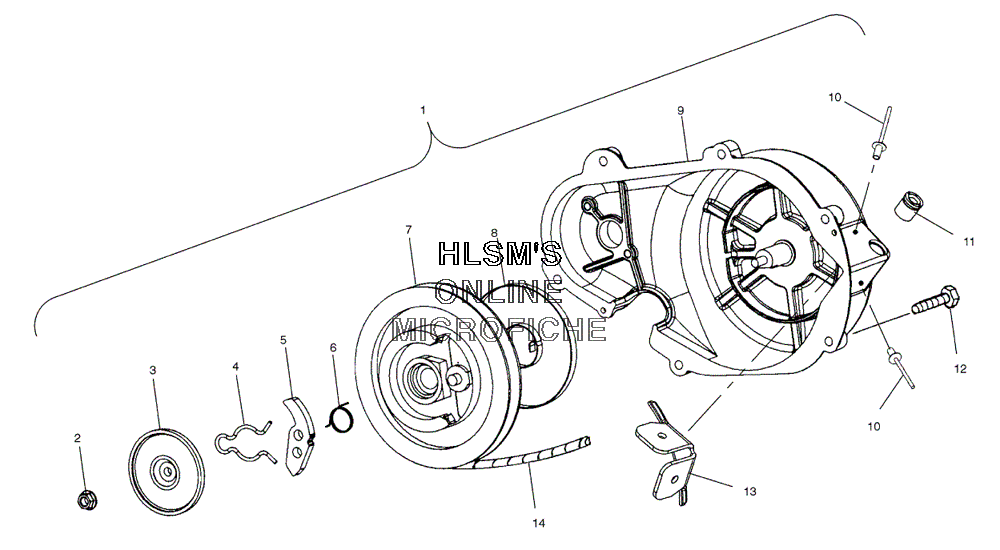

STARTER - RECOIL ASSEMBLY для Polaris 800 XC SP M-10 (S04NP7CS) - 2004 года выпуска
-
№АртикулНазвание
-
11202408 RECOIL E/R, SHEILD ASSY (INCL. 2-11, 14 AND STARTING PULLEY)RECOIL E/R, SHEILD ASSY (INCL. 2-11, 14 AND STARTING PULLEY)
-
23040163 NUT FLANGENUT FLANGE
-
33040164 PLATE FRICTIONPLATE FRICTION
-
43040167 SPRING FRICTIONSPRING FRICTION
-
55246108 RATCHET PAWL ELECTRIC REVRATCHET PAWL ELECTRIC REV
-
63040166 SPRING RETURNSPRING RETURN
-
73040168 REELREEL
-
83040170 SPRING SPIRALSPRING SPIRAL
-
93040160 RECOIL E/R SHIELD ASSYRECOIL E/R SHIELD ASSY
-
107661148 RIVET ALUMINUM POP (3/16)RIVET ALUMINUM POP (3/16)
-
113040171 GUIDE ROPEGUIDE ROPE
-
127517998 SCREW HEXAGON FLANGESCREW HEXAGON FLANGE
-
135246218 SHIELD RECOIL ROPESHIELD RECOIL ROPE
-
143040169 ROPE, STARTERROPE, STARTER
