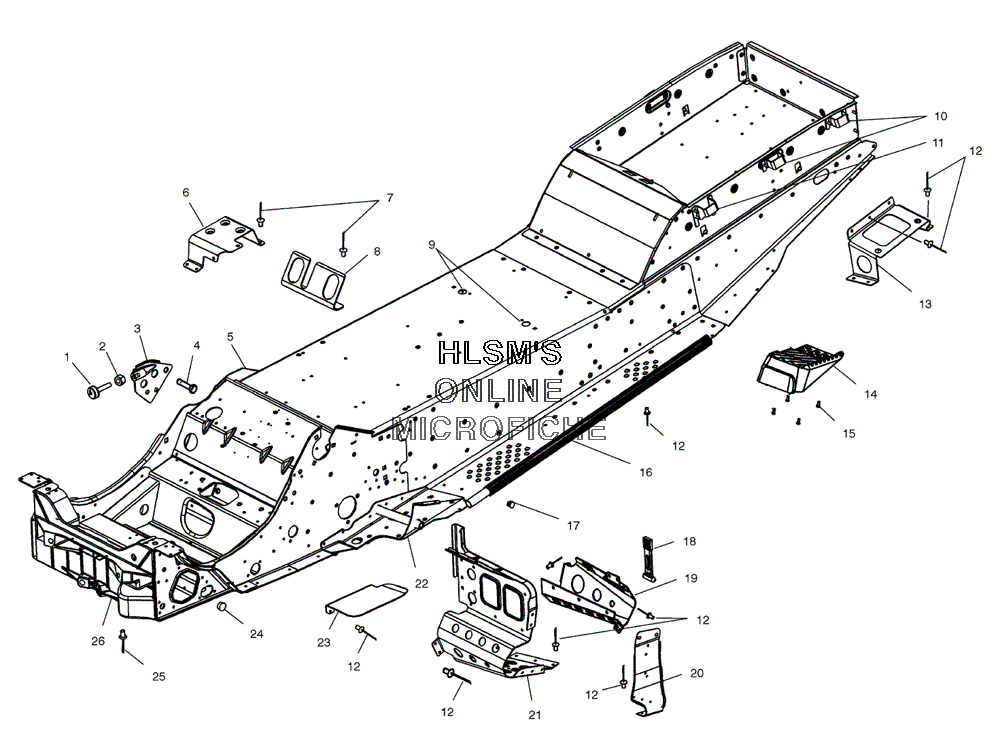

FRAME - CHASSIS для Polaris SPORT TOURING (S04NU5BS) - 2004 года выпуска
-
№АртикулНазвание
-
13021104 STOP, TORQUE COURSE 3/8-16STOP, TORQUE COURSE 3/8-16
-
27542404 NUTNUT
-
31013399 WELD TORQUE STOPWELD TORQUE STOP
-
47517632 SCREWSCREW
-
51014471-309 CHASSIS, SERVICE NAT ASSYCHASSIS, SERVICE NAT ASSY
-
65245202 BRACKET OIL BOTTLEBRACKET OIL BOTTLE
-
77621432 RIVETRIVET
-
85246177 BRACKET AIRBOXBRACKET AIRBOX
-
97081076 PLUG HOLE (1.25)PLUG HOLE (1.25)
-
105247225-067 HOOK CARGO (BLACK)HOOK CARGO (BLACK)
-
115246439-067 HOOK CARGO (FRONT/BLACK)HOOK CARGO (FRONT/BLACK)
-
127661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
135246275-067 BRACKET ACC, ATTACH (LOWER/LEFT/BLACK)BRACKET ACC, ATTACH (LOWER/LEFT/BLACK)
-
135246276-067 BRACKET ACC, ATTACH (LOWER/RIGHT/BLACK)BRACKET ACC, ATTACH (LOWER/RIGHT/BLACK)
-
145434644 FOOTREST PASSENGER (LEFT) (INCL. 15)FOOTREST PASSENGER (LEFT) (INCL. 15)
-
145434645 FOOTREST PASSENGER (RIGHT) (INCL. 15)FOOTREST PASSENGER (RIGHT) (INCL. 15)
-
157512076 SCREWSCREW
-
161240166 WELD ROLL, TUNNEL (LEFT)WELD ROLL, TUNNEL (LEFT)
-
161240167 WELD ROLL, TUNNEL (RIGHT)WELD ROLL, TUNNEL (RIGHT)
-
177081085 PLUG BARBED (.625)PLUG BARBED (.625)
-
185433150 STRAPSTRAP
-
195245457 MOUNT CONSOLE, TOE CLIP (LEFT)MOUNT CONSOLE, TOE CLIP (LEFT)
-
195245458 MOUNT CONSOLE, TOE CLIP (RIGHT)MOUNT CONSOLE, TOE CLIP (RIGHT)
-
205246310 SUPPORT FOOTREST (LEFT)SUPPORT FOOTREST (LEFT)
-
205246311 SUPPORT FOOTREST (RIGHT)SUPPORT FOOTREST (RIGHT)
-
215245288 FOOTREST (LEFT) (.080)FOOTREST (LEFT) (.080)
-
215247205 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
222202059 MOUNT, TRAILING ARM KIT (LEFT)MOUNT, TRAILING ARM KIT (LEFT)
-
222202598 MOUNT, TRAILING ARM KIT (RIGHT)MOUNT, TRAILING ARM KIT (RIGHT)
-
235246066 GUARD BELTGUARD BELT
-
247080416 PLUG, HOLEPLUG, HOLE
-
257661130 RIVETRIVET
-
265132292 BULKHEAD MACH (FRONT)BULKHEAD MACH (FRONT)
