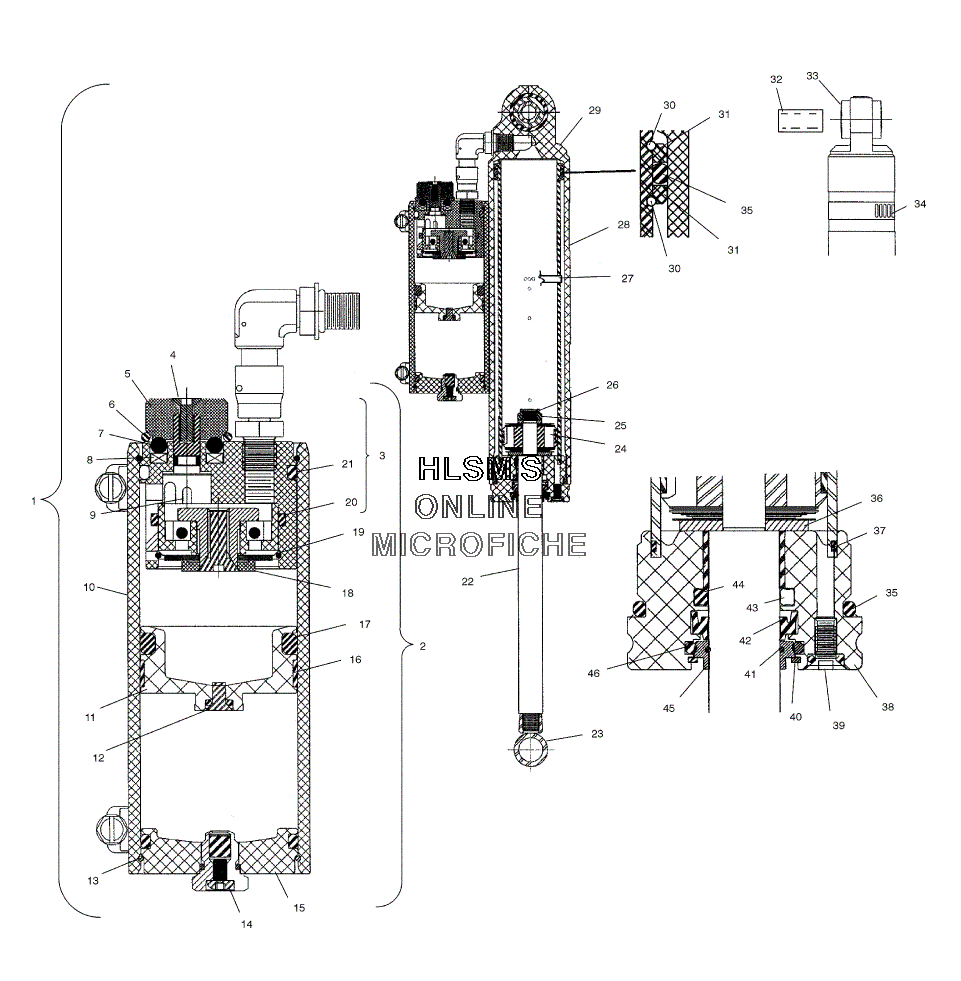

SUSPENSION - REAR TRACK SHOCK (EDGE) #1 для Polaris SUPERSPORT EDGE (S04NP5BS) - 2004 года выпуска
-
№АртикулНазвание
-
17042212 SHOCK R/T, REMOTE RES PSCA (INCL. ALL)SHOCK R/T, REMOTE RES PSCA (INCL. ALL)
-
21500329 RESERVOIR, WITH GROOVE ASSY (INCL. 3-21)RESERVOIR, WITH GROOVE ASSY (INCL. 3-21)
-
31500555 COMPRESSION DAMPING HOUSING ASSY (INCL. 4-9, 20, 21)COMPRESSION DAMPING HOUSING ASSY (INCL. 4-9, 20, 21)
-
41500223 SCREWSCREW
-
51500521 KNOB, 8 CLICKKNOB, 8 CLICK
-
61500253 O-RINGO-RING
-
71500226 BALLBALL
-
81500225 SPRINGSPRING
-
91500254 DRUM, COMPRESSION DAMPINGDRUM, COMPRESSION DAMPING
-
101500325 DAMPENERDAMPENER
-
111500235 PISTON, FLOAT ASSYPISTON, FLOAT ASSY
-
121500161 SCREW O-RING ASSYSCREW O-RING ASSY
-
131500236 RING, RETAININGRING, RETAINING
-
141500232 SCREWSCREW
-
151500514 RESERVOIR END CAP ASSYRESERVOIR END CAP ASSY
-
161500230 BEARING EXTERNALBEARING EXTERNAL
-
171500229 SEAL, O-RINGSEAL, O-RING
-
181500324 PLATE, DAMPING 4-HOLEPLATE, DAMPING 4-HOLE
-
191500233 RING, RETAININGRING, RETAINING
-
201500227 O-RINGO-RING
-
211500228 O-RINGO-RING
-
221500322 SHAFTSHAFT
-
231500302 EYELETEYELET
-
241500489 PISTON .063 BLEEDPISTON .063 BLEED
-
241500002 BEARING, PISTONBEARING, PISTON
-
251500015 PLATE, BACKUPPLATE, BACKUP
-
261500016 NUT, LOCKNUT, LOCK
-
271500306 VALVE, CHECK, NBR DURO A 90VALVE, CHECK, NBR DURO A 90
-
281500331 BODY, ASSY (INNER)BODY, ASSY (INNER)
-
291500480 BODY, ASSY (INCL. 3)BODY, ASSY (INCL. 3)
-
301500097 RING RETAINING, WIRERING RETAINING, WIRE
-
311500336 COLLAR, ALUMINUMCOLLAR, ALUMINUM
-
321500311 SLEEVESLEEVE
-
331500307 BUSHINGBUSHING
-
341500565 CLAMP HOSECLAMP HOSE
-
351500228 O-RINGO-RING
-
361500228 O-RINGO-RING
-
371500459 O-RINGO-RING
-
381500553 BEARING, FIST ASSY (INCL. 35-46)BEARING, FIST ASSY (INCL. 35-46)
-
391500295 SCREWSCREW
-
391500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
401500552 RING SNAP, INTERNALRING SNAP, INTERNAL
-
411500554 O-RINGO-RING
-
421500256 U-CUPU-CUP
-
431500549 O-RINGO-RING
-
441500260 BEARING, INTERNALBEARING, INTERNAL
-
451500550 SCRAPER FISTSCRAPER FIST
-
461500551 O-RINGO-RING
