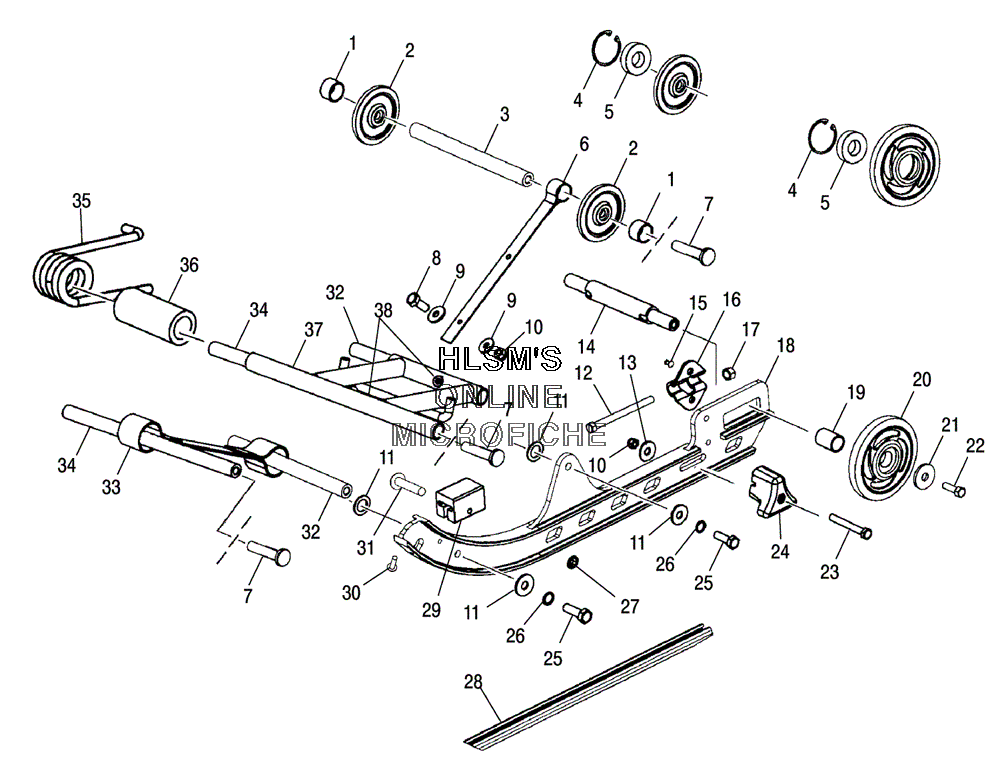

SUSPENSION - REAR для Polaris 120 PRO X EDGE (S05WBAS) - 2005 года выпуска
-
№АртикулНазвание
-
15333826 SPACER CARRIER WHEELSPACER CARRIER WHEEL
-
21541403 WHEEL CARRIER (INCL. 4, 5)WHEEL CARRIER (INCL. 4, 5)
-
35132254 SHAFT CARRIERSHAFT CARRIER
-
47710444 RING, RETAININGRING, RETAINING
-
53514012 BEARINGBEARING
-
65811954 STRAP LIMITER (REAR)STRAP LIMITER (REAR)
-
77517846 SCREW HEXAGON FLANGESCREW HEXAGON FLANGE
-
87512307 SCREWSCREW
-
97555960 WASHER, FLATWASHER, FLAT
-
107542344 NUT, NYLOKNUT, NYLOK
-
117555734 WASHER, FLATWASHER, FLAT
-
127517227 SCREWSCREW
-
137556171 WASHER DISHWASHER DISH
-
145132253 SHAFT IDLER (REAR)SHAFT IDLER (REAR)
-
157621512 RIVETRIVET
-
165241628 BRACKET, IDLER, ADJUSTERBRACKET, IDLER, ADJUSTER
-
177542451 NUT, NYLOKNUT, NYLOK
-
181541415 RAIL, XTRA LITE 68" ASSY (LEFT)RAIL, XTRA LITE 68" ASSY (LEFT)
-
181541416 RAIL, XTRA LITE 68" ASSY (RIGHT)RAIL, XTRA LITE 68" ASSY (RIGHT)
-
195333932 SPACER IDLERSPACER IDLER
-
201590279-312 (INCL. 4, 5)(INCL. 4, 5)
-
217556130 WASHERWASHER
-
227512492 SCREWSCREW
-
237515385 SCREWSCREW
-
245434124-070 BLOCK TOE STOP (BLACK)BLOCK TOE STOP (BLACK)
-
257515317 BOLTBOLT
-
267552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
277670068 NUT, PUSH ONNUT, PUSH ON
-
285521557-309 HI FAX, NATURALHI FAX, NATURAL
-
295521499 BUMPER, JOUNCE (FRONT)BUMPER, JOUNCE (FRONT)
-
307515199 SCREWSCREW
-
317661621 PIN HOOD HINGEPIN HOOD HINGE
-
325132711 SHAFT TORQUE ARM (LOWER)SHAFT TORQUE ARM (LOWER)
-
335811953 STRAP LIMITER (FRONT)STRAP LIMITER (FRONT)
-
345132257 SHAFT TORQUE ARM (UPPER)SHAFT TORQUE ARM (UPPER)
-
357041844-067 SPRING TORSION (LEFT/BLACK)SPRING TORSION (LEFT/BLACK)
-
357041845-067 SPRING TORSION (RIGHT/BLACK)SPRING TORSION (RIGHT/BLACK)
-
365433507 SLEEVE TORSION SPRINGSLEEVE TORSION SPRING
-
371541398-067 TORQUE ARM (BLACK)TORQUE ARM (BLACK)
-
387080424 FITTING, LUBRICATIONFITTING, LUBRICATION
