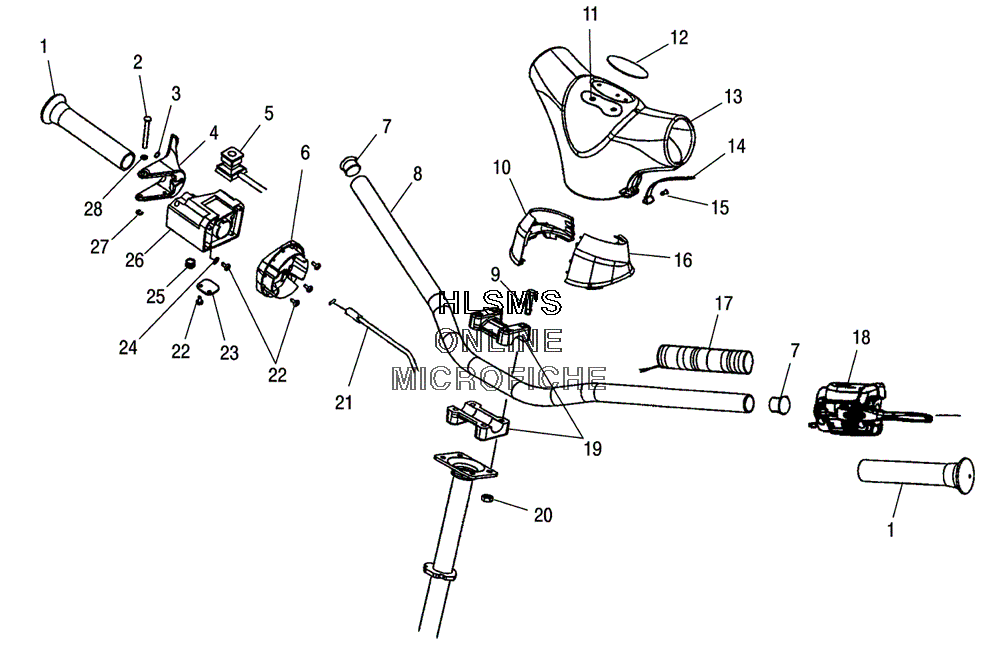

HANDLEBAR ASSEMBLY W/ CONTROLS для Polaris 340 CLASSIC (S05ND3AS) - 2005 года выпуска
-
№АртикулНазвание
-
15432634 GRIP, HANDLEBARGRIP, HANDLEBAR
-
27661624 PIN RETAININGPIN RETAINING
-
37710503 RING, RETAININGRING, RETAINING
-
45430601 LEVER THROTTLELEVER THROTTLE
-
42010213 LEVER HEATER HI/LO ASSY (30MM)LEVER HEATER HI/LO ASSY (30MM)
-
54110106 SWITCH, AUXILIARY SHUT OFFSWITCH, AUXILIARY SHUT OFF
-
65433345 ADAPTER BLOCK, THROTTLEADAPTER BLOCK, THROTTLE
-
75431096 PLUGPLUG
-
85243355-067 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
97517238 SCREWSCREW
-
105434488 COLLAR CONSOLE (RIGHT/STANDARD)COLLAR CONSOLE (RIGHT/STANDARD)
-
117670106 NUT PUSH ONNUT PUSH ON
-
125434179 EMBLEM "STAR" PALM BEZEL HANDLEBAREMBLEM "STAR" PALM BEZEL HANDLEBAR
-
135433159-070 COVER HANDLEBAR (BLACK)COVER HANDLEBAR (BLACK)
-
145433160-070 SLIDE HANDLEBAR COVER (BLACK)SLIDE HANDLEBAR COVER (BLACK)
-
154010287 CLIP, DART NYLON (BLACK)CLIP, DART NYLON (BLACK)
-
165434487 COLLAR CONSOLE (LEFT/STANDARD)COLLAR CONSOLE (LEFT/STANDARD)
-
172460677 HEATER, GRIP, LO/MED/HIHEATER, GRIP, LO/MED/HI
-
195630187-067 BLOCK HANDLEBAR (BLACK)BLOCK HANDLEBAR (BLACK)
-
207542122 NUT NYLOKNUT NYLOK
-
217081044 CABLE THROTTLECABLE THROTTLE
-
227511848 SCREWSCREW
-
235432261 HOLDER WIREHOLDER WIRE
-
247555727 WASHERWASHER
-
257512465 SCREW, SETSCREW, SET
-
265431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
277710401 RING, RETAININGRING, RETAINING
-
287555730 WASHERWASHER
