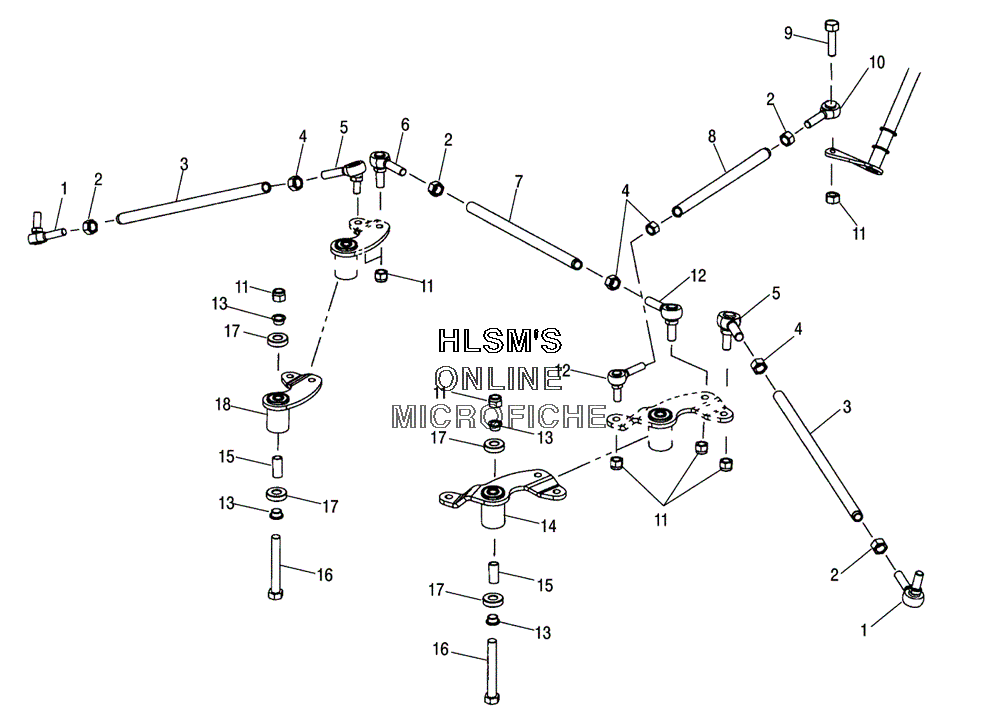

STEERING LINKAGE для Polaris 340 EDGE TOURING (S05NT3AS) - 2005 года выпуска
-
№АртикулНазвание
-
17061057 ROD END (RIGHT)ROD END (RIGHT)
-
27542401 NUT, HEXAGON (RIGHT)NUT, HEXAGON (RIGHT)
-
35333949 ROD TIEROD TIE
-
47542424 NUT (LEFT)NUT (LEFT)
-
57061055 ROD END (LEFT)ROD END (LEFT)
-
67061076 ROD END 3/8 HI ANGLE (RIGHT)ROD END 3/8 HI ANGLE (RIGHT)
-
75333772 ROD, STEERING RACKROD, STEERING RACK
-
85333773 ROD, DRAGLINK STEELROD, DRAGLINK STEEL
-
97515528 BOLTBOLT
-
107060167 ROD END (RIGHT)ROD END (RIGHT)
-
117542439 NUT, NYLOKNUT, NYLOK
-
127061075 ROD END 3/8 HI ANGLE (LEFT)ROD END 3/8 HI ANGLE (LEFT)
-
135132106 BUSHING REDUCER (12MM TO .385)BUSHING REDUCER (12MM TO .385)
-
141820957 PITMAN ARM ASSY (INCL. 13, 15, 17)PITMAN ARM ASSY (INCL. 13, 15, 17)
-
155133423 SPACER TUBE PITMAN/IDLER ARMSSPACER TUBE PITMAN/IDLER ARMS
-
167512435 SCREWSCREW
-
173514320 BEARING BALL 600ILLUBEARING BALL 600ILLU
-
181820959 IDLER ARM ASSY (INCL. 13, 15, 17)IDLER ARM ASSY (INCL. 13, 15, 17)
