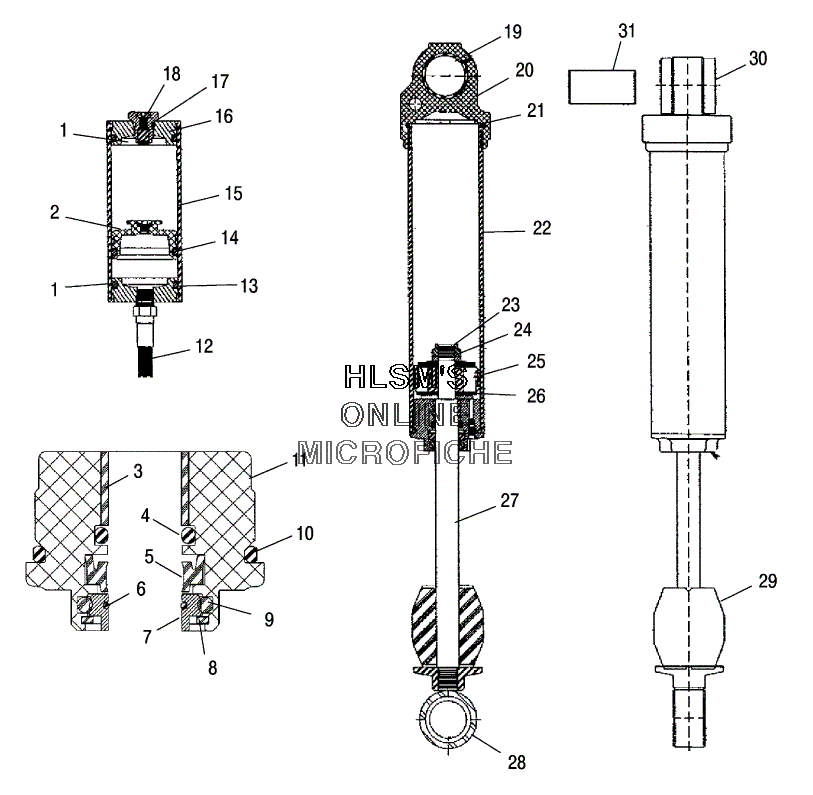

SUSPENSION - REAR TRACK (M 10) (ACE) для Polaris 500 XC SP M-10 (S05NE5CS) - 2005 года выпуска
-
№АртикулНазвание
-
11500450 SEAL O-RINGSEAL O-RING
-
21500187 PISTON FLOATINGPISTON FLOATING
-
31500488 BEARING .5 IDX.5 TLGBEARING .5 IDX.5 TLG
-
41500021 O-RING (INNER)O-RING (INNER)
-
51500266 U CUP 4300 URETHU CUP 4300 URETH
-
61500484 O-RING (14MM IDX1 MM)O-RING (14MM IDX1 MM)
-
71500485 SCRAPER FIST, BRONZESCRAPER FIST, BRONZE
-
81500486 RING SNAP, INTERNALRING SNAP, INTERNAL
-
91500483 O-RING (.103X.73ID)O-RING (.103X.73ID)
-
101500020 O-RING (.103W 1.299ID)O-RING (.103W 1.299ID)
-
111500545 DAMPENER ASSY (INCL. 3 10)DAMPENER ASSY (INCL. 3 10)
-
121500560 HOSEHOSE
-
131500163 ENDCAP ASSY, RESERVOIRENDCAP ASSY, RESERVOIR
-
141500003 O-RING, ENDCAPO-RING, ENDCAP
-
151500451 BODY ASSYBODY ASSY
-
161500160 RESERVOIR, ENDCAP ASSY.RESERVOIR, ENDCAP ASSY.
-
171500023 O-RING (OUTER)O-RING (OUTER)
-
181500014 VALVE ASSY, AIRVALVE ASSY, AIR
-
191500444 BEARING RBCBEARING RBC
-
201500563 BODY CAP ASSYBODY CAP ASSY
-
211500108 O-RING (.103W 1.549ID)O-RING (.103W 1.549ID)
-
221500561 BODYBODY
-
231500016 NUT, LOCKNUT, LOCK
-
241500015 PLATE, BACKUPPLATE, BACKUP
-
251500002 BEARING, PISTONBEARING, PISTON
-
261500017 PLATE, TOP OUTERPLATE, TOP OUTER
-
271500562 SHAFTSHAFT
-
281500564 EYELETEYELET
-
295410855 BUMPER, JOUNCEBUMPER, JOUNCE
-
301500309 BUSHING (.35ILG, .595TLG)BUSHING (.35ILG, .595TLG)
-
311500310 SLEEVESLEEVE
-
317042149 SHOCK REAR TRACK RE24 M-10 (INCL. ALL)SHOCK REAR TRACK RE24 M-10 (INCL. ALL)
-
311500449 RESERVIOR ASSY, NON ADJUST (INCL. 1, 2, 12 18)RESERVIOR ASSY, NON ADJUST (INCL. 1, 2, 12 18)
