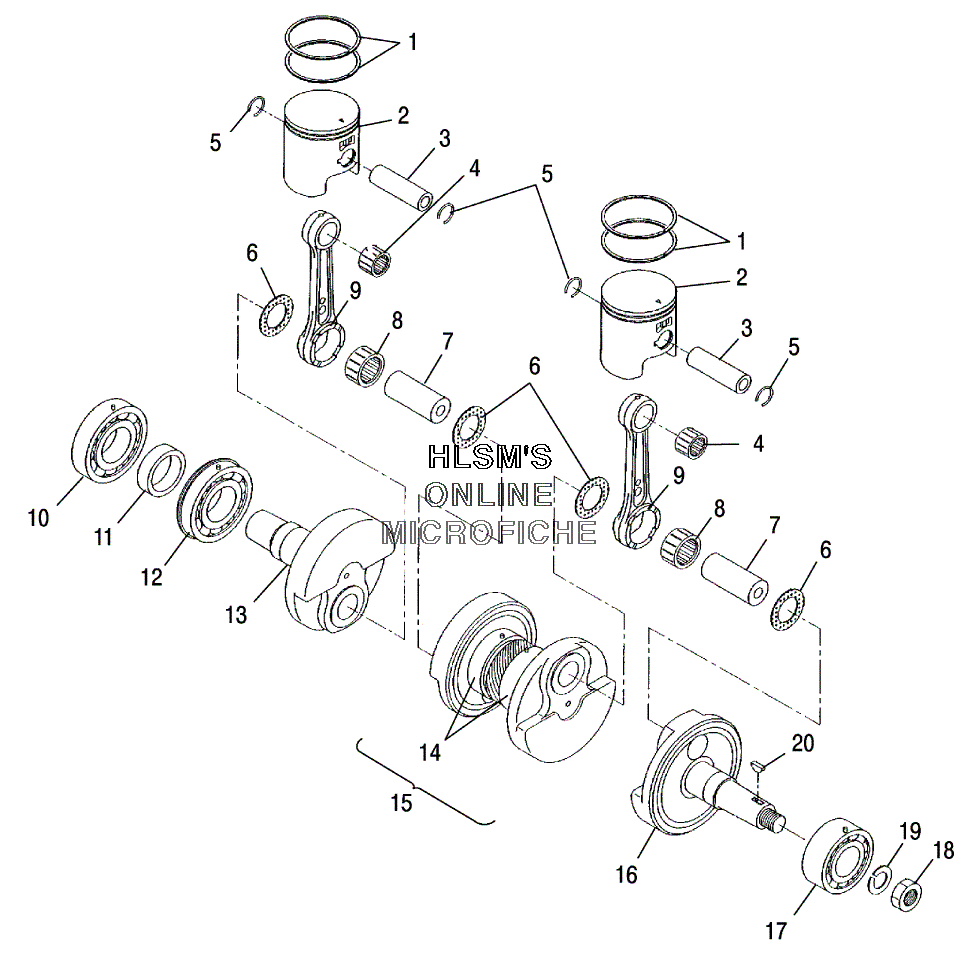

PISTON AND CRANKSHAFT для Polaris 550 SUPER SPORT (S05NP5BS) - 2005 года выпуска
-
№АртикулНазвание
-
13086988 SET PISTON, RING (STD)SET PISTON, RING (STD)
-
13086989 SET PISTON, RING (.010" .25MM O/S)SET PISTON, RING (.010" .25MM O/S)
-
13086990 SET PISTON, RING (.020" 50MM O/S)SET PISTON, RING (.020" 50MM O/S)
-
23089485 PISTON (STD)PISTON (STD)
-
23089486 PISTON (.010" .25MM O/S)PISTON (.010" .25MM O/S)
-
23089487 PISTON (.020" .50MM O/SPISTON (.020" .50MM O/S
-
33083838 PIN, PISTONPIN, PISTON
-
43085595 BEARING, SMALL ENDBEARING, SMALL END
-
53084167 CLIP, PISTON PINCLIP, PISTON PIN
-
63083277 SPACER, CRANKPINSPACER, CRANKPIN
-
73083456 PIN, CRANK 2PIN, CRANK 2
-
83086390 BEARING END LARGEBEARING END LARGE
-
93240083 ROD, CONNECTINGROD, CONNECTING
-
103085754 BEARING, BALLBEARING, BALL
-
113085677 SPACERSPACER
-
123085753 BEARING, BALLBEARING, BALL
-
133088199 CRANKSHAFT, 3 (PTO SIDE)CRANKSHAFT, 3 (PTO SIDE)
-
143084586 BEARING, BALLBEARING, BALL
-
153085674 CRANKSHAFT 2 (CENTER) (INCL. 7)CRANKSHAFT 2 (CENTER) (INCL. 7)
-
163088198 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
163087177 CRANKSHAFT 1 (MAG SIDE)CRANKSHAFT 1 (MAG SIDE)
-
173084681 BEARING, BALLBEARING, BALL
-
183083093 NUTNUT
-
193083094 WASHER SPRINGWASHER SPRING
-
203081543 KEY WOODRUFFKEY WOODRUFF
