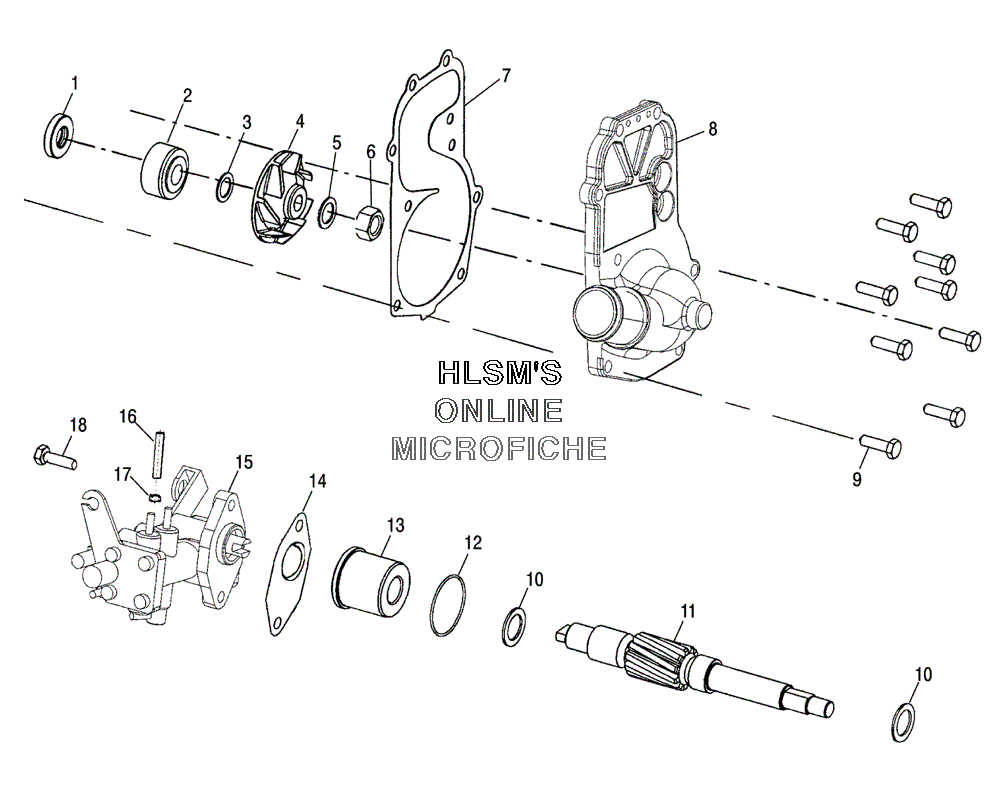

WATER PUMP/OIL PUMP для Polaris 600 EDGE TOURING (S05NT6ES) - 2005 года выпуска
-
№АртикулНазвание
-
15411197 SEAL, TYPE S ARSSEAL, TYPE S ARS
-
23610067 SEALSEAL
-
37556006 WASHER, FLATWASHER, FLAT
-
45432330 IMPELLERIMPELLER
-
57555874 WASHER, FLAT (LEFT)WASHER, FLAT (LEFT)
-
67546804 NUT, HEXAGON NYLOK (LEFT)NUT, HEXAGON NYLOK (LEFT)
-
75811601 GASKET, WATER PUMP COVERGASKET, WATER PUMP COVER
-
85630920 COVER WATER PUMP HI FLOWCOVER WATER PUMP HI FLOW
-
97516822 SCREWSCREW
-
107555977 WASHER, THRUSTWASHER, THRUST
-
115133688 GEAR CROSS SHAFT 11 STARTGEAR CROSS SHAFT 11 START
-
125411196 O-RINGO-RING
-
135010391 BEARING, PUMP SHAFT FLANGEDBEARING, PUMP SHAFT FLANGED
-
145811789 GASKETGASKET
-
152540117 OIL PUMP ASSYOIL PUMP ASSY
-
168450061-600 LINE, FUEL (3MMX7MM)LINE, FUEL (3MMX7MM)
-
177080603 CLAMPCLAMP
-
187517277 SCREWSCREW
