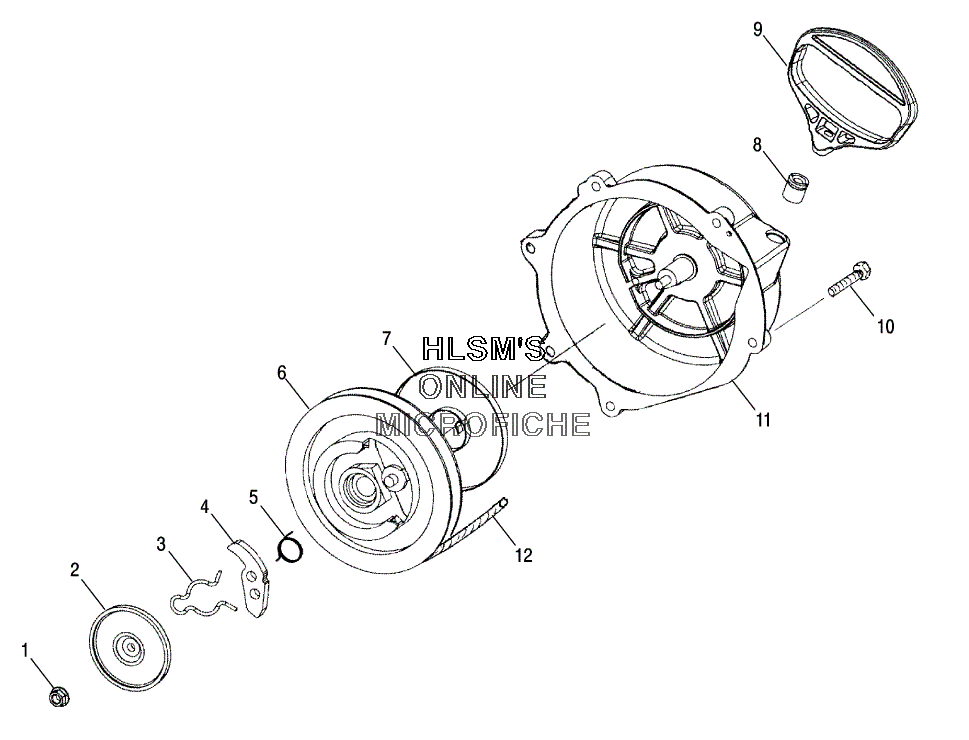

STARTER - RECOIL ASSEMBLY для Polaris 600 XC SP 50th ANNIVERSARY (S05NA5CS) - 2005 года выпуска
-
№АртикулНазвание
-
13040163 NUT, FLANGENUT, FLANGE
-
23040164 PLATE, FRICTIONPLATE, FRICTION
-
33040167 SPRING, FRICTIONSPRING, FRICTION
-
45246108 RATCHET PAWL ELEC REVRATCHET PAWL ELEC REV
-
53040166 SPRING, RETURNSPRING, RETURN
-
63040168 REELREEL
-
73040170 SPRING, SPIRALSPRING, SPIRAL
-
83040171 GUIDE, ROPEGUIDE, ROPE
-
95431499-070 HANDLE RECOIL (BLACK)HANDLE RECOIL (BLACK)
-
107516827 SCREWSCREW
-
115630645 RECOIL ELECTRIC REV ASSYRECOIL ELECTRIC REV ASSY
-
123040169 ROPE, STARTERROPE, STARTER
-
121202298 RECOIL ELECTRIC REV ASSY (INCL. 1-7, 11, 12)RECOIL ELECTRIC REV ASSY (INCL. 1-7, 11, 12)
