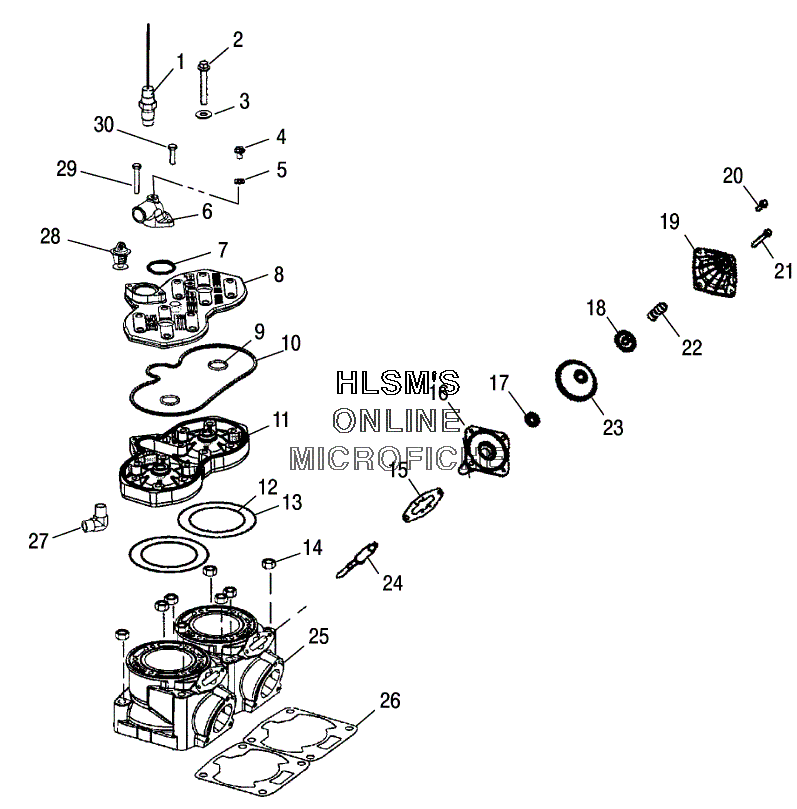

CYLINDER ASSEMBLY для Polaris 600 XC SP EDGE (S05NE5CS) - 2005 года выпуска
-
№АртикулНазвание
-
14010398 SENSOR THERMISTER (ESX8477A)SENSOR THERMISTER (ESX8477A)
-
27517533 SCREW (M8X1.25X55)SCREW (M8X1.25X55)
-
47517679 SCREW, HEXAGON/FLANGE (M6X1.0 X 13, SL/ Z)SCREW, HEXAGON/FLANGE (M6X1.0 X 13, SL/ Z)
-
57555998 WASHER, FLATWASHER, FLAT
-
65134756 COVER THERMOSTAT M6 BLEED MACHCOVER THERMOSTAT M6 BLEED MACH
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
85631425-366 COVER HEAD, PWD (77.25) (RED)COVER HEAD, PWD (77.25) (RED)
-
85631425-462 COVER HEAD (77.25) 600 (LIBERTY GOLD) (50TH)COVER HEAD (77.25) 600 (LIBERTY GOLD) (50TH)
-
95411411 O-RINGO-RING
-
105411465 SEALSEAL
-
113021322 HEAD CYLINDER (77.25MM W/OMA)HEAD CYLINDER (77.25MM W/OMA)
-
125410932 O-RINGO-RING
-
135411359 O-RINGO-RING
-
147547013 NUTNUT
-
155812350 GASKET BASE TO CYINDER EXHAUST VALVEGASKET BASE TO CYINDER EXHAUST VALVE
-
161202216 BASE EXHAUST VALVE DOM ASSYBASE EXHAUST VALVE DOM ASSY
-
175132950 WASHER BELLOWS, EXHAUST VALVE, DOMWASHER BELLOWS, EXHAUST VALVE, DOM
-
185631662 CAP/NUT, BELLOWS EXHAUST VALVECAP/NUT, BELLOWS EXHAUST VALVE
-
191202640 HOUSING W/BUSHING ASSYHOUSING W/BUSHING ASSY
-
207516820 SCREWSCREW
-
217517932 SCREW, HEXAGON/FLANGE (M6X1.0X50.0 YD)SCREW, HEXAGON/FLANGE (M6X1.0X50.0 YD)
-
227041786-08 SPRING COMP (GREEN/YELLOW)SPRING COMP (GREEN/YELLOW)
-
235410000 BELLOWS EXHAUST MODIFIEDBELLOWS EXHAUST MODIFIED
-
245133379 VALVE GUILLOTINE 500, FORGEDVALVE GUILLOTINE 500, FORGED
-
245133380 VALVE GUILLOTINE 600 FORGEDVALVE GUILLOTINE 600 FORGED
-
253021333 CYLINDER 77.25CYLINDER 77.25
-
265811916 GASKET CYLINDER BASEGASKET CYLINDER BASE
-
277052234 FITTING W/DRISEAL (1/4 NPT) (1"HO)FITTING W/DRISEAL (1/4 NPT) (1"HO)
-
287052258 THERMOSTAT 120ШF W/O BYPASSTHERMOSTAT 120ШF W/O BYPASS
-
297517950 SCREW, HEXAGON FLANGESCREW, HEXAGON FLANGE
-
307516822 SCREWSCREW
