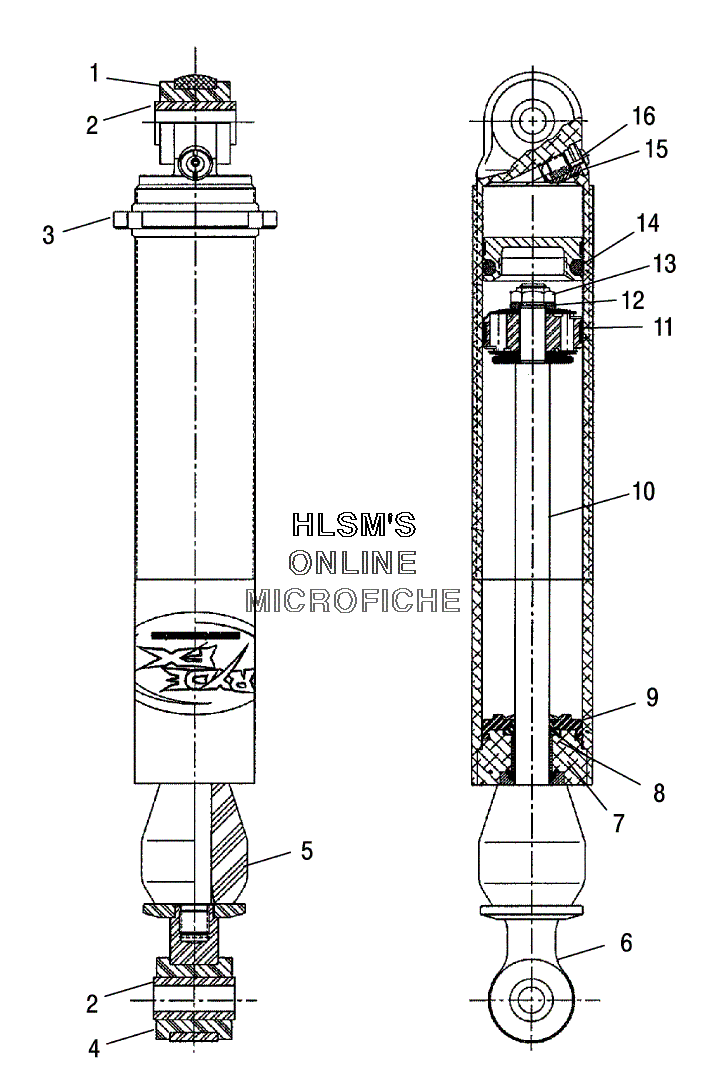

SUSPENSION - SHOCK IFS для Polaris 700 XC SP EDGE (S05NP7CS) - 2005 года выпуска
-
№АртикулНазвание
-
1A7041976 SHOCK IFS IFP (INCL. ALL)SHOCK IFS IFP (INCL. ALL)
-
11700036 BUSHINGBUSHING
-
21700037 SLEEVE STEELSLEEVE STEEL
-
31700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
41700072 BUSHINGBUSHING
-
51700042 BUMPER, COMPRESSIONBUMPER, COMPRESSION
-
61700010 MOUNT (UPPER)MOUNT (UPPER)
-
71700007 CYLINDER HEAD ASSY (1/2" ROD)CYLINDER HEAD ASSY (1/2" ROD)
-
81700021 ROD SEALROD SEAL
-
91700022 CAP SEALCAP SEAL
-
101700025 SHAFTSHAFT
-
111700109 BANDED PISTON ORIFICEBANDED PISTON ORIFICE
-
111700031 PISTON WEAR BANDPISTON WEAR BAND
-
111700077 TOP OUT WASHERTOP OUT WASHER
-
111700078 BACK UP WASHERBACK UP WASHER
-
122200618 VALVE PISTON KITVALVE PISTON KIT
-
131700057 NUTNUT
-
141700023 IFPIFP
-
141700032 IFP WEAR BANDIFP WEAR BAND
-
141700048 IFP O-RINGIFP O-RING
-
151700076 PRESS VALVE ASSYPRESS VALVE ASSY
-
151700047 PRESS VALVE O-RINGPRESS VALVE O-RING
-
161700056 VALVE SCREWVALVE SCREW
