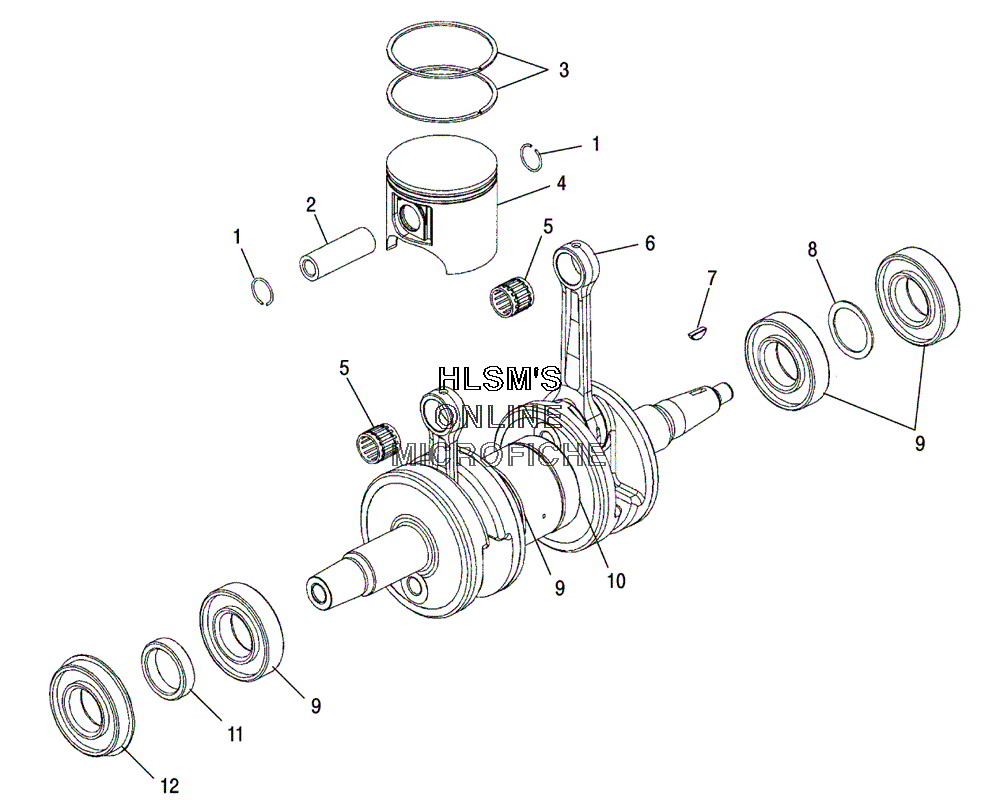

PISTON AND CRANKSHAFT для Polaris 700 XC SP M-10 (S05NE7CS) - 2005 года выпуска
-
№АртикулНазвание
-
1A2201848 CRANKSHAFT BUR KIT (INCL. 8-12)CRANKSHAFT BUR KIT (INCL. 8-12)
-
13022950 CIRCLIP, PISTON (20MM)CIRCLIP, PISTON (20MM)
-
32200895 PISTON RINGS KIT (81MM)PISTON RINGS KIT (81MM)
-
42202237 PISTON KIT ASSY (81MM / 700 GRAFL) (INCL. 1-3)PISTON KIT ASSY (81MM / 700 GRAFL) (INCL. 1-3)
-
53584001 BEARINGBEARING
-
62201953 CONNECTING ROD WITH BUR PIN KIT (INCL. ROD, PIN, BEARING, WASHERS)CONNECTING ROD WITH BUR PIN KIT (INCL. ROD, PIN, BEARING, WASHERS)
-
77721117 KEY, WOODRUFFKEY, WOODRUFF
-
87555905 BUSHINGBUSHING
-
93585503 BEARING, BALLBEARING, BALL
-
103514318 BEARING, BALLBEARING, BALL
-
115131899 SPACERSPACER
-
123514310 BEARING, BALL EXTRACEBEARING, BALL EXTRACE
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY #1
- CARBURETOR ASSEMBLY #2
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS (BLACK HOOD)
- DECALS (WHITE HOOD)
- DRIVE CLUTCH - MANUAL START
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRIC MODULE (M-10) (ACE)
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL TANK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL TANK W/ AIR BOX ASSEMBLY
- • PISTON AND CRANKSHAFT
- RAIL MOUNTING
- SEAT ADJUSTABLE
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING LINKAGE
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY (M-10)
- SUSPENSION - FRONT TRACK SHOCK
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK SHOCK (M-10 ACE)
- SUSPENSION - REAR TRACK SHOCK (M-10)
- SUSPENSION - SHOCK IFS
- TOOL KIT
- WATER PUMP/OIL PUMP
- WINDSHIELD/GUAGES/HOOD RETAINER
